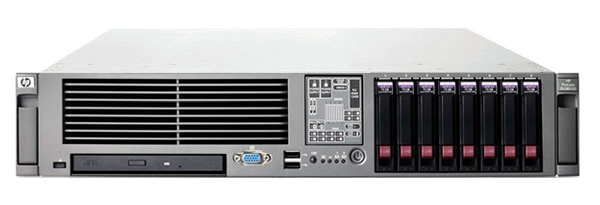

HP DL380 G5
| 整机信息 | |
| 名称 | HP ProLiant DL380 G5 Server series |
| 型号 | |
| 品牌 | HP |
| 类型 | PC服务器 |
| CPU信息 | 1 或者 2 两个处理器 |
| CPU类型 | 英特尔 至强 |
| CPU插槽数 | 2 |
| CPU激活 | 不需要激活 |
| 机架类型 | 机架式 |
| 机架空间 | 2U |
| 硬盘信息 | 最大内部存储热插拔SAS 1.168TB 8x146GB, 带标准内置热插拔 SFF SAS驱动器盒 |
| 最大硬盘数量 | 8 |
| 内存提示 | 内存类型：PC2-5300全缓冲内存插槽(DDR2-667)带 4:1和2:1交叉(交叉需相同的内存插槽) |
| 支持内存容量范围 | 最大 64 GB |
| 内存插槽数量 | 8 |
| 内存是否需要激活 | 不需要激活 |
| 电源描述 | 800瓦，符合CE Mark 标准；可选的热插拔AC 冗余电源 |
| 单机电源数量 | 2 |
| 介质托架 | 薄型CD-RW/DVD-ROM组合光驱选件套件(注：包含在高性能机型中。)；薄型DVD-ROM 光驱(8倍速/24 倍速)可选套件；HP DVD+R/RW 8X薄型；薄型24倍速 CD-ROM光驱。 |
| 适配器插槽 | x4 PCIe (x8 连接器)；x8 PCIe (x16连接器)；x8 PCIe (x16连接器)；64位/133MHz PCI-X |
| 端口 | VGA 2个(1个正面，1 个背面)；RJ-45 网络接口2；USB 2.0 端口5个：2 个正面，2 个背面，1个内置；iLO 2远程管理端口1 |
| 发布日期 | |
| 下架日期 | 2009/11/30 |
| 服务截止期 | |
| 操作系统 | Microsoft Windows Server 2000; Microsoft Windows Server 2003; Novell NetWare;LINUX (Red Hat、SuSE); SCO UnixWare, OpenServer; VMware Virtualization软件；Solaris 10 32/64位. |
| 产品尺寸 | (高x 宽x 长) (带支架) 8.59x44.54x66.07厘米(3.38x17.54x26.01 英寸) |
| 产品重量 | 最大(所有已安装的硬盘驱动器、电源和处理器)27.22千克(60磅) |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 458575-B21 | Quad-Core Intel® Xeon® Processor E5430 (2.66 GHz, 80 Watts, 1333 FSB) | |
| 458575-L21 | Quad-Core Intel® Xeon® Processor E5430 (2.66 GHz, 80 Watts, 1333 FSB) DL380 FIO Kit | |
| 458577-B21 | Quad-Core Intel® Xeon® Processor E5420 (2.50 GHz, 80 Watts, 1333 FSB) | |
| 458577-L21 | Quad-Core Intel® Xeon® Processor E5420 (2.50 GHz, 80 Watts, 1333 FSB) DL380 FIO Kit | |
| 458579-B21 | Quad-Core Intel® Xeon® Processor E5405 (2.00 GHz, 80 Watts, 1333 FSB) | |
| 458579-L21 | Quad-Core Intel® Xeon® Processor E5405 (2.00 GHz, 80 Watts, 1333 FSB) DL380 FIO Kit | |
| 458581-B21 | Quad-Core Intel® Xeon® Processor X5460 (3.16 GHz, 120 Watts, 1333 FSB) | |
| 458581-L21 | Quad-Core Intel® Xeon® Processor X5460 (3.16 GHz, 120 Watts, 1333 FSB) DL380 FIO Kit | |
| 458583-B21 | Quad-Core Intel® Xeon® Processor E5450 (3.0 GHz, 80 Watts, 1333 FSB) | |
| 458583-L21 | Quad-Core Intel® Xeon® Processor E5450 (3.0 GHz, 80 Watts, 1333 FSB) DL380 FIO Kit | |
| 458585-B21 | Quad-Core Intel® Xeon® Processor E5440 (2.83 GHz, 80 Watts, 1333 FSB) | |
| 458585-L21 | Quad-Core Intel® Xeon® Processor E5440 (2.83 GHz, 80 Watts, 1333 FSB) DL380 FIO Kit | |
| 459142-B21 | Quad-Core Intel® Xeon® Processor E5410 (2.33 GHz, 80 Watts, 1333 FSB) | |
| 459142-L21 | Quad-Core Intel® Xeon® Processor E5410 (2.33 GHz, 80 Watts, 1333 FSB) DL380 FIO Kit | |
| 461461-B21 | Dual-Core Intel® Xeon® Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB) | |
| 461461-L21 | Dual-Core Intel® Xeon® Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB) DL380 FIO Kit | |
| 461463-B21 | Dual-Core Intel® Xeon® Processor L5240 (3.00 GHz, 40 Watts, 1333 FSB) | |
| 461463-L21 | Dual-Core Intel® Xeon® Processor L5240 (3.00 GHZ, 40 Watts, 1333 FSB), FIO Kit | |
| 461465-B21 | Dual-Core Intel® Xeon® Processor E5205 (1.86 GHz, 65 Watts, 1066 FSB) | |
| 461465-L21 | Dual-Core Intel® Xeon® Processor E5205 (1.86 GHz, 65 Watts, 1066 FSB) DL380 FIO Kit | |
| 462593-B21 | Quad-Core Intel® Xeon® Processor X5450 (3.0 GHz, 120 Watts, 1333 FSB) | |
| 462593-L21 | Quad-Core Intel® Xeon® Processor X5450 (3.0 GHz, 120 Watts, 1333 FSB) DL380 FIO Kit | |
| 465324-B21 | Quad-Core Intel® Xeon® Processor L5420 (2.50 GHz, 50 Watts, 1333 FSB) | |
| 465324-L21 | Quad-Core Intel® Xeon® Processor L5420 (2.50 GHz, 50 Watts, 1333 FSB) DL380 FIO Kit | |
| 465326-B21 | Quad-Core Intel® Xeon® Processor L5410 (2.33 GHz, 50 Watts, 1333 FSB) | |
| 465326-L21 | Quad-Core Intel® Xeon® Processor L5410 (2.33 GHz, 50 Watts, 1333 FSB) DL380 FIO Kit | |
| 484309-B21 | Quad-Core Intel® Xeon® Processor X5470 (3.33 GHz, 120 Watts, 1333 FSB) | |
| 484309-L21 | Quad-Core Intel® Xeon® Processor X5470 (3.33 GHz, 120 Watts, 1333 FSB) DL380 FIO Kit | |
| 484310-B21 | Quad-Core Intel® Xeon® Processor L5430 (2.66 GHz, 50 Watts, 1333 FSB) | |
| 484310-L21 | Quad-Core Intel® Xeon® Processor L5430 (2.66 GHz, 50 Watts, 1333 FSB) DL380 FIO Kit | |
| 484311-B21 | Dual-Core Intel® Xeon® Processor X5270 (3.50 GHz, 80 Watts, 1333 FSB) | |
| 484311-L21 | Dual-Core Intel® Xeon® Processor X5260 (3.50 GHz, 80 Watts, 1333 FSB) DL380 FIO Kit | |
| 内存 | ||
| 351580-B21 | 128MB BBWC for SA641/642 | |
| 372538-B21 | 512MB DDR BBWC Upgrade | |
| 397409-B21 | 1 GB FBD PC2-5300 2 x 512 MB Single Rank Kit | |
| 397409-S21 | 1 GB FBD PC2-5300 2 x 512 MB Kit | |
| 397411-B21 | 2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit | |
| 397411-S21 | 2 GB FBD PC2-5300 2 x 1 GB Kit | |
| 397413-B21 | 4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit | |
| 397413-S21 | 4 GB FBD PC2-5300 2 x 2 GB Kit | |
| 397415-B21 | 8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit | |
| 405148-B21 | 512 MB Battery-backed write cache upgrade | |
| 413015-B21 | 16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit | |
| 461826-B21 | 2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit | |
| 461828-B21 | 4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit | |
| 466440-B21 | 8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit | |
| 495604-B21 | 64 GB FBD PC2-5300 8 x 8 GB Dual Rank Kit | |
| 硬盘 | ||
| 384842-B21 | HP 72GB 3G SAS 10K SFF DP ENT HDD | |
| 418367-B21 | 146.0GB hot-swap Serial Attached SCSI (SAS) hard drive - 10,000 RPM, dual-port, 2.5-inch, Small Form Factor (SFF) (Option 418367-B21) | |
| 418371-B21 | HP 72GB 3G SAS 15K SFF DP ENT HDD | |
| 434916-001 | 72.0GB hot-swap single-port Serial Attached SCSI (SAS) hard drive - 10,000 RPM, 2.5-inch Small Form Factor (SFF) | |
| 458924-B21 | HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1 year Warranty Hard Drive | |
| 460355-B21 | HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1 year Warranty Hard Drive | |
| 492620-B21 | 300GB hot-plug Serial Attached SCSI (SAS) hard disk drive - 10,000 RPM, dual-port, 2.5-inch Small Form Factor (SFF) | |
| 504062-B21 | HP 146GB 15K 2.5 SAS DP HDD | |
| 507125-B21 | HP 146GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 year Warranty Hard Drive | |
| 507127-B21 | HP 300GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 years Warranty Hard Drive | |
| 507610-B21 | HP 500GB 6G SAS 7.2K rpm SFF (2.5inch) Midline 1 year Warranty Hard Drive | |
| 507750-B21 | HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 512545-B21 | HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 512547-B21 | HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 530888-B21 | HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 572071-B21 | HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive | |
| 572073-B21 | HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive | |
| RAID卡 | ||
| 347786-B21 | HP 8 Internal Port SAS 64/133 PCI-X RAID Host Bus Adapter | |
| SCSI卡 | ||
| 273911-B21 | Ultra320 Expansion Module for SA-6402 | |
| AH627A | HP U320e SCSI Dual Channel Host Bus Adapter | |
| 网卡 | ||
| 394795-B21 | HP NC380T PCI-Express dual-port multifunction gigabit server adapter | |
| 409376-B21 | HP NC360T PCI Express Dual Port Gigabit Server Adapter | |
| 434905-B21 | HP NC110T single-port copper single-lane (x1) PCI-Express 10/100/1000 Base-T gigabit server adapter board | |
| 435508-B21 | HP NC364T PCI Express Quad Port Gigabit Server Adapter | |
| 468332-B21 | HP NC522SFP Dual Port 10GbE Gigabit Server Adapter | |
| 适配卡 | ||
| 374654-B21 | 64-Bit/133-MHz Single Channel Ultra320 SCSI Host Bus Adapter (HBA) G2 - PCI-X interface, 320MBps data transfer rate - One (1) channel, supports up to 14 storage devices | |
| 394791-B21 | HP NC373T PCI Express Multifunction Gigabit Server Adapter | |
| 394793-B21 | HP NC373F PCI Express Multifunction Gigabit Server Adapter | |
| 412648-B21 | HP NC360T PCI Express Dual Port Gigabit Server Adapter | |
| 412911-B21 | HP SC11Xe Host Bus Adapter | |
| 416096-B21 | HP SC44Ge Host Bus Adapter | |
| 448397-B21 | HP IB 4X DDR PCI-e Dual Port HCA | |
| 483513-B21 | HP IB 4X DDR PCI-e Dual Port 0 Memory HCA | |
| 488765-B21 | HP SC08Ge Host Bus Adapter | |
| AF103A | HP CAT5 RJ45-DB9 DCE Female 8 Pack Serial Adapter | |
| AF110A | HP 1-pack PS/2 Virtual Media Interface Adapter | |
| AF604A | HP 1-pack PS/2 Virtual Media Interface Adapter | |
| 光纤卡 | ||
| A8002A | HP StorageWorks FC2142SR PCI Express 4Gb Host Bus Adapter | |
| A8003A | HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e Host Bus Adapter | |
| AE311A | HP StorageWorks FC1142 4Gb PCI-Express Host Bus Adapter | |
| AE312A | HP StorageWorks FC1242SR 4Gb PCIe dual-channel Host Bus Adapter | |
| AJ763A | HP StorageWorks 82E 8Gb Dual-port PCI Express Fiber Channel Host Bus Adapter | |
| AJ764A | HP StorageWorks 82Q 8Gb Dual Port PCIe Fiber Channel Host Bus Adapter | |
| AK344A | HP StorageWorks 81Q PCIe Fiber Channel Host Bus Adapter | |
| AP767A | HP StorageWorks 41B PCI Express 4Gb Host Bus Adapter - Single port, fiber channel | |
| AP768A | HP StorageWorks 42B PCI Express 4Gb Host Bus Adapter - Dual port, fiber channel | |
| AP769A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Single port, fiber channel | |
| AP770A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Dual port, fiber channel | |
| 电源 | ||
|
380622-001 403781-001 |
Hot-plug power supply - 100 to 240Vrms nominal input voltage, 800 to 1000W maximum rated output wattage | |
| 399771-001 | Redundant Power Supply 350/370/380 G5 NEMA Kit | |
| 399771-B21 | Redundant Power Supply 350/370/380 G5 Kit | |
|
412837-001 419613-001 |
DC hot-plug power supply, 1200 W | |
| 433634-B21 | Redundant Power Supply 380 G5 Kit - 48Volt DC | |
| AF503A | HP 17.3 kVA S2324 Monitored PDU- dual input, 3U, 24A (NA/JPN) | |
| AF505A | HP 16.6kVA 40A Dual Input Single Phase Monitored Power Distribution Unit | |
| AF914A | HP 4.9kVA 24A Single Input Single Phase Monitored Power Distribution Unit | |
| 电池 | ||
| 383280-B21 | HP Smart Array Cache Battery Kit - For Smart Array P400 Controller only | |
| 光驱 | ||
| 264007-B21 | Slimline DVD-ROM Drive (8X/24X) Option Kit | |
| 331903-B21 | Slimline CD-RW/DVD-ROM Combo Option Kit | |
| 356963-B21 | Slimline CD-ROM Drive 24X | |
| 383975-B21 | HP DVD+R/RW 8X Slim | |
| 磁带机 | ||
| AG703A | HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive | |
| AH166A | HP 1/8 G2 Tape Autoloader Rack Kit | |
| AH558A | HP StorageWorks 1/8 G2 Ultrium 920 SAS Tape Autoloader | |
| AH559A | HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library | |
| AH560A | HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library | |
| AJ823A | DAT 320 USB External Tape Drive | |
| AJ828A | DAT 320 WW SAS External Tape Drive | |
| AK377A | HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader | |
| AK378A | HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library | |
| AK380A | HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library | |
| DW085A | HP StorageWorks Ultrium 448 SAS Internal Tape Drive | |
| EH847A | HP StorageWorks Ultrium 920 SAS Internal Tape Drive | |
| EH946A | HP StorageWorks 3U Rack-mount kit with one LTO-4 Ultrium 1760 Tape Drive | |
| 导轨 | ||
| AE459A | HP StorageWorks 1U SAS Rack Mount Kit - Supports up to two half-height tape drives and is compatible with the Ultrium 448 SAS and Ultrium 920 SAS tape drives | |
| 线缆 | ||
| 417836-B21 | Smart Array P400 battery attach cable kit - 61cm (24in) long | |
| 591734-B21 | HP 8484 to Mini SAS 33in Cable Assembly | |
| AF556A | Nema 5-15P to IEC320-C13 | |
| AF612A | HP 1x4 KVM Console 6ft USB Cable - Server console cable for USB Keyboard, Video, Mouse (KVM) - 1.82m (6ft) long - Two cables are included | |
| AF613A | HP 1x4 KVM Console 6ft USB Cable - Server console cable for USB Keyboard, Video, Mouse (KVM) - 1.82m (6ft) long - Two cables are included | |
| 其它 | ||
| 273914-B21 | Smart Array 6404/256 Controller | |
| 273915-B21 | Smart Array 6402/128 Controller | |
| 291967-B21 | Smart Array 642 Controller | |
| 292302-B22 | HP S10614 (14U) Rack Cabinet – Shock Pallet | |
| 335921-B21 | HP StorageWorks 20 Modular Smart Array | |
| 337972-B21 | HP Smart Array P600/256 BBWC Controller | |
| 358254-B21 | HP 5642 cabinet (Metallic Carbonite color) - 42U, 19-inch - Assembled and installed by the customer - Includes cover, side panels, two locking rear doors, leveling feet - Ships on a pallet | |
| 364430-B21 | HP StorageWorks 50 Modular Smart Array | |
| 381513-B21 | HP Smart Array P800/512 BBWC Controller | |
| 390164-B21 | Slimline Ejectable Floppy Drive | |
| 391835-B21 | HP ProLiant DL380G5 Rack CTO Chassis | |
| 405132-B21 | HP Smart Array P400/256MB Controller | |
| 405160-B21 | HP Smart Array P400/256 for DL380 G5/ DL385 G2 FIO Controller | |
| 405162-B21 | HP Smart Array P400/512 BBWC for DL380 G5/ DL385 G2 FIO Controller | |
| 405528-B21 | HP Smart Array E200/64 FIO Controller | |
| 410570-B21 | Mixed Riser Cage Option Kit (PCI-E/PCI-X) | |
| 411064-B21 | HP Smart Array P400/512MB Controller with BBWC | |
| 411508-B21 | HP Smart Array E200/128 BBWC Controller | |
| 418408-B21 | HP StorageWorks 60 Modular Smart Array | |
| 418800-B21 | HP StorageWorks 70 Modular Smart Array | |
| 432103-B21 | HP Smart Array P600 w/512 FIO Ctrlr | |
| 435129-B21 | HP Smart Array E500/256MB Controller | |
| 442085-B21 | HP 1GB USB 2.0 Floppy Drive Key | |
| 452151-B21 | HP Insight Rapid Deployment software No Media 1-Server License including 1 year of 24x7 Technical Support and Updates | |
| 458588-B21 | HP DL380G5 X5460 HPM FIO Perf Pack | |
| 458589-B21 | HP DL380G5 X5450 HPM FIO Perf Pack | |
| 464422-B22 | HP Insight Control suite for Linux, Media pack (DVD) - No licenses included | |
| 464423-B22 | HP Insight Control suite for Linux, No Media, 1-Server license, including one year of 24x7 Technical Support and Updates | |
| 494037-B21 | HP DL380G5 E5450 HPM FIO Perf Pack | |
| 512485-B21 | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License | |
| AF001A | 10642 G2 (42U) Rack Cabinet - Pallet | |
| AF002A | 10642 G2 (42U) Rack Cabinet - Shock Pallet | |
| AF003A | 10642 G2 (42U) Rack Cabinet - Crated | |
| AF004A | 10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet | |
| AF011A | 10636 G2 (36U) Rack Cabinet - Pallet | |
| AF012A | 10636 G2 (36U) Rack Cabinet - Shock Pallet | |
| AF013A | 10636 G2 (36U) Rack Cabinet - Crated | |
| AF014A | 10636 G2 (36U) Rack Cabinet , with Extension - Shock Pallet | |
| AF021A | 10622 G2 (22U) Rack Cabinet - Pallet | |
| AF022A | 10622 G2 (22U) Rack Cabinet - Shock Pallet | |
| AF031A | 10647 G2 (47U) Rack Cabinet - Pallet | |
| AF034A | 10642 G2 (42U) Rack Cabinet 1200mm Deep - Shock Pallet | |
| AF038A | 10642 G2 (42U) Rack Cabinet 1200mm Deep - Pallet | |
| AF041A | 10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet | |
| AF042A | 10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet | |
| AF044A | 10647 G2 (47U) Rack Cabinet 1200mm Deep - Shock Pallet | |
| AF045A | 10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet | |
| AF101A | HP Serial Console Servers - 16 ports | |
| AF102A | HP Serial Console Servers - 48 ports | |
| AF419A | HP R1.5 VA 1U Uninterruptible Power System | |
| AF504A | HP monitored single Power Distribution Unit (PDU) S1324 (North America, Japan) - 3PH, 24A, 8.6 kVA | |
| AF600A | HP 0X2X16 KVM Server Console Switch with Virtual Media - USB Switch | |
| AF601A | HP 2x1x16 IP Console Switch with USB/Virtual Media | |
| AF602A | HP 4x1x16 IP Console Switch with USB/Virtual Media | |
| AF611A | HP 1x4 USB/PS2 KVM console switch | |
| AF616A | HP Server Console 0x2x8 Port Analog Switch | |
| AF617A | HP Server Console 0x2x16 Port Analog Switch | |
| AG052A | HP TFT7600 Rackmount Keyboard and Monitor - Active Matrix Thin Film Transistor (TFT)7600 (United States) | |
| AG067A | AA TFT7600 Rackmount Keyboard and Monitor US | |
| AG072A | HP 1U rackmount keyboard - includes three button touch pad, 4 scroll keys, and Windows shortcut keys - has PS2 and USB connections includes USB port on the front of the keyboard for USB pass through | |
| AJ752A | HP 2012sa Single Controller Modular Smart Array | |
| AJ753A | HP 2012sa Dual Controller Modular Smart Array | |
| AJ935A | HP StorageWorks RDX500 External Removable Disk Backup System | |
| DC141B | USB 1.44-MB External Diskette Drive | |
| DC172B | HP USB 2-Button Optical scrolling mouse (Carbonite Black and Silver) - Has 1.8m (6.0 feet) long cable with USB connector | |
| DT528A#ABA | HP Keyboard (USB) standard 2004 | |
| EJ001A | HP StorageWorks D2D2502i Backup System | |
| EJ002A | HP StorageWorks D2D2504i Backup System | |
| T9082AAE | HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License | |
| T9084BAE | HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical Support and Updates, Electronic | |
| U4544E | 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic | |
| U4545E | 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4546E | 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4554E | Hardware Installation, Electronic | |
| U4555E | Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic | |
| U4556E | Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic | |
| U4557E | Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic | |
| U5683E | Installation and Startup for Essentials Rapid Deployment Pack, Electronic | |
| U6312E | Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic | |
| U8334E | Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic | |
| UE893E | DL38x Smart Buy 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic | |
| UE894E | DL38x Smart Buy 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic |
