技术规格 |
|
|
机器型号 |

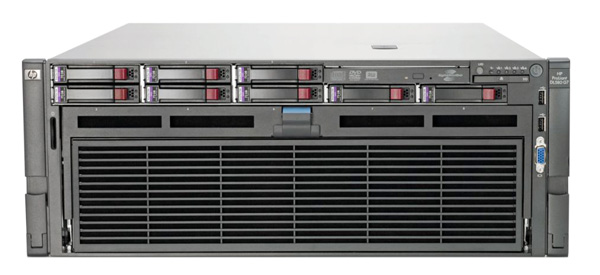

HP ProLiant DL580 G7 |
|
处理器系列 |
英特尔® 至强® 7500 系列或者 6500 系列 |
|
网络控制器 |
1GbE NC375i 多功能 4 端口 |
|
驱动器 |
8 个 SFF SAS/SATA/SSD |
|
标准存储连接 |
热插拔 SFF SAS; 热插拔 SFF SATA; 非热插拔 SSD |
|
存储控制器 |
1 个智能阵列 P410i/1GB FBWC; 1 个智能阵列 P410i/512MB FBWC |
|
处理器高速缓存 |
24 MB 三级高速缓存 |
|
外形（完全配置） |
4U |
|
远程管理软件 |
带 iLO 高级软件包的 Insight Control (iLO 3) |
|
处理器数 |
4 个或 2 个 |
|
内存 |
DDR3 |
|
最大内存 |
1TB |
|
内存插槽 |
64 个 DIMM 插槽 |
|
扩展槽 |
11 |
|
电源类型 |
高性能机型上标配冗余功能，入门机型和基本机型上冗余功能可选 |
Ten-Core Processors
HP DL580 G7 Intel® Xeon® E7-4870 (2.40GHz/10-core/30MB/130W) FIO 2-processor Kit
643067-L21
HP DL580 G7 Intel® Xeon® E7-4860 (2.26GHz/10-core/24MB/130W) FIO 2-processor Kit
643069-L21
HP DL580 G7 Intel® Xeon® E7-4850 (2.00GHz/10-core/24MB/130W) FIO 2-processor Kit
643071-L21
HP DL580 G7 Intel® Xeon® E7-8867L (2.13GHz/10-core/30MB/105W) FIO 2-processor Kit
643079-L21
Eight-Core Processors
HP DL580 G7 Intel® Xeon® E7-8837 (2.67GHz/8-core/24MB/130W) FIO 2-processor Kit
643081-L21
HP DL580 G7 Intel® Xeon® E7-4830 (2.13GHz/8-core/24MB/105W) FIO 2-processor Kit
643073-L21
HP DL580 G7 Intel® Xeon® E7-4820 (2.0GHz/8-core/18MB/105W) FIO 2-processor Kit
643075-L21
Six-Core Processors
HP DL580 G7 Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) FIO 2-processor Kit
643077-L21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500656-B21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500658-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
604506-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit
500666-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit
627812-B21
HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit
627814-B21
Memory Expansion Options
HP DL580G7/DL980G7 (E7) Memory Cartridge 644172-B21
Power Supply
HP 1200W Common Slot Silver Hot Plug Power Supply Kit 500172-B21
HP 1200W Common Slot Platinum Hot Plug Power Supply Kit 578322-B21
Optical Drives
HP Slim 12.7mm SATA DVD-RW Optical Drive 481043-B21
HP Slim 12.7mm SATA DVD-ROM Optical Drive 481041-B21
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 1.2TB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 693648-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 619291-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581286-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581284-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507127-B21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard Drive 627117-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512547-B21
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 605835-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507610-B21
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive 625609-B21
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 507750-B21
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives
HP 120GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State Drive
728726-B21
HP 80GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State Drive
734366-B21
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives
HP 800GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State Drive
728743-B21
HP 480GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State Drive
728739-B21
HP 600GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State Drive
739904-B21
HP 300GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State Drive
739894-B21
HP 240GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State Drive
728735-B21
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
730065-B21
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
730063-B21
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
730061-B21
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
730059-B21
6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Warranty Solid State Drive
690823-B21
HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream 3yr Warranty Solid State Drive
690821-B21
HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Warranty Solid State Drive
690819-B21
3G SATA MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 400GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive
636597-B21
HP 200GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive
636595-B21
HP 100GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive
636593-B21
6G SAS SLC Hot Plug Enterprise Performance Solid State Drives
HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive
632494-B21
HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive
632492-B21
Hard Drive Cables
HP DL580/DL585/DL980 G7 SSD Cable Kit 661778-B21
Gigabit Ethernet Adapters
HP NC112T PCI Express Gigabit Server Adapter 503746-B21
HP NC360T PCI-E Dual Port Gigabit Server Adapter 412648-B21
HP NC364T PCI-E Quad Port Gigabit Server Adapter 435508-B21
HP NC365T 4-port Ethernet Server Adapter 593722-B21
HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter 394793-B21
HP NC373T PCI-E Multifunction Gigabit Server Adapter 394791-B21
HP NC375T PCI Express Quad Port Gigabit Server Adapter 538696-B21
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter 458492-B21
HP Ethernet 1Gb 4-port 331T Adapter 647594-B21
HP Ethernet 1Gb 2-port 332T Adapter 615732-B21
HP Ethernet 1Gb 2-port 361T Adapter 652497-B21
10 Gigabit Ethernet Adapters
HP NC524SFP Dual Port 10GbE Module 489892-B21
HP NC523SFP 10Gb 2-port Server Adapter 593717-B21
HP NC550SFP Dual Port 10GbE Server Adapter 581201-B21
HP NC552SFP 10Gb 2-port Ethernet Server Adapter 614203-B21
HP 10 GbE PCI-e G2 Dual Port Network Interface Card 516937-B21
HP Ethernet 10Gb 2-port 530SFP Adapter 652503-B21
HP Ethernet 10Gb 2-port 530T Adapter 656596-B21
HP Ethernet 10Gb 2-port 560SFP+ Adapter 665249-B21
HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA 592520-B21
HP InfiniBand 4X DDR ConnectX-2 PCIe G2 Dual Port HCA 592521-B21
QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA 583211-B21
HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544QSFP Adapter 649281-B21
SAS Controllers
Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462828-B21
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462834-B21
Smart Array P410 Controller
HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller 462862-B21
HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller 462864-B21
HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller 578230-B21
HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller 572532-B21
Smart Array P411 Controller
HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller 462830-B21
HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller 462832-B21
HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller 572531-B21
HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller 578229-B21
Smart Array P812 Controller
HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller 487204-B21
Optional Upgrades
HP 512MB P-Series Battery Backed Write Cache Upgrade 462967-B21
HP 1GB Flash Backed Cache 534562-B21
HP 512MB Flash Backed Write Cache 534916-B21
HP 256MB P-series Cache Upgrade 462968-B21
Brocade Fibre Channel HBAs
HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter AP769B
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter AP770B
Emulex Fibre Channel HBAs
HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter AJ762B
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter AJ763B
HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter QR559A
HP SN1000E 16Gb 1-port PCIe Fibre Channel Host Bus Adapter QR558A
HP StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter C8R38A
HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter C8R39A
QLogic Fibre Channel HBAs
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter AK344A
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter AJ764A
HP StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter QW971A
HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter QW972A
Converged Network Adapter
HP CN1100E Dual Port Converged Network Adapter BK835A
HP CN1000Q Dual Port Converged Network Adapter BS668A
Disk Enclosures
HP D2600 Disk Enclosure AJ940A
HP D2700 Disk Enclosure AJ941A
