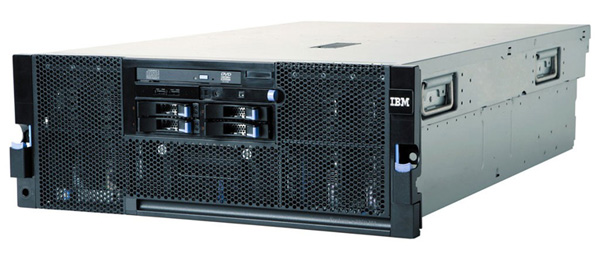

IBM X3850M2 (7141)
| 整机信息 | |
| 名称 | IBM System x3850 M2/3950 M2 |
| 型号 | 7141 |
| 品牌 | IBM |
| 类型 | PC服务器 |
| CPU信息 | Dual-core Intel Xeon E7210 and quad-core Intel Xeon E7300 series processors. |
| CPU类型 | Dual-core Intel Xeon E7210 and quad-core Intel Xeon E7300 series |
| CPU插槽数 | 4 |
| CPU激活 | 不需要激活 |
| 机架类型 | 机架式 |
| 机架空间 | 4U |
| 硬盘信息 | 最大硬盘容量：584GB |
| 最大硬盘数量 | 4 |
| 内存提示 | DDR2 SDRAM |
| 支持内存容量范围 | 最大内存容量：256GB |
| 内存插槽数量 | 32 |
| 内存是否需要激活 | 不需要激活 |
| 电源描述 | 电源电压：220V；电源功率：1440W |
| 单机电源数量 | 2 |
| 介质托架 | CD-RW/DVD-ROM Combo |
| 适配器插槽 | Seven PCI Express x8 half-length slots |
| 端口 | 集成双千兆以太网接口；3 USB 2.0 (back)、2个USB 2.0(前面)、Video、Serial、2 RJ-45、RSA II Ethernet |
| 发布日期 | |
| 下架日期 | 2009/1/31 |
| 服务截止期 | |
| 操作系统 | 32 位和 64 位 Microsoft Windows Server 2003(标准版、企业版和数据中心版)、32 位和 64 位 Red Hat Enterprise Linux 和 SUSE Enterprise Linux(Server 和 Advanced Server)、VMware ESX Server |
| 产品尺寸 | 172.8×443.6×720.2mm |
| 产品重量 | 最大43.2Kg |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 44E4555 | 2.93 GHz (quad core) (MT 7141) | |
| 44E4556 | 2.40 GHz (quad core) (MT 7141) | |
| 44E4557 | 2.13 GHz (quad core) (MT 7141) | |
| 44E4558 | 2.40 GHz (dual core) (MT 7141) | |
| 44W2782 | 1.60 GHz (quad core) (MT 7141) | |
| 3050 | 43W8600 | Quad Core Intel Xeon Processor X7350 (2.93GHz 8MB L2 130w) |
| 3051 | 43W8601 | Quad Core Intel Xeon Processor E7330 (2.40GHz 6MB L2 80w) |
| 3052 | 43W8602 | Quad Core Intel Xeon Processor E7320 (2.13GHz 4MB L2 80w) |
| 3053 | 43W8761 | Dual Core Intel Xeon Processor E7210 (2.40GHz 8MB L2 80w) |
| 3397 |
44W2781 44W2784 |
Addl. Quad Core Intel Xeon Processor E7310 (1.60GHz 4MB L2 80w) |
| 3473 |
43W8763 44E4241 |
Addl. Quad Core Intel Xeon Processor E7320 (2.13GHz 4MB L2 80w) |
| 3474 |
43W8764 44E4242 |
Addl. Quad Core Intel Xeon Processor E7330 (2.40GHz 6MB L2 80w) |
| 3475 |
43W8765 44E4243 |
Addl. Quad Core Intel Xeon Processor X7350 (2.93GHz 8MB L2 130w) |
| 3476 |
43W8766 44E4244 |
Addl. Dual Core Intel Xeon Processor E7210 (2.40GHz 8MB L2 80w) |
| 3613 | 43W8603 | Quad Core Intel Xeon Processor E7310 (1.60GHz 4MB L2 80w) |
| 4416 |
44E4466 44E4473 |
Addl. Intel Xeon Processor x7460 (6 Cores 2.66GHz 16MB L3 Cache) |
| 4432 | 44E4505 | Addl. Quad Core Intel Xeon Processor L7345 (1.86 GHz 8MB L2 50W) |
| 6969 | 44E4504 | Quad Core Intel Xeon Processor L7345 (1.86 GHz 8MB L2 50W) |
| 系统板 | ||
| 43W8670 | System board for IBM X3950 M2 (MT 7141). | |
| 43W8672 | Memory card | |
| 43W8673 | Power backplane. | |
| 44W2728 | SAS hard disk drive backplane | |
| 4894 |
43W8606 44E4252 |
Memory Expansion Card |
| 内存 | ||
| 41Y2762 | 2GB (2x 1GB) DDR 2 667MHz DIMM memory Kit | |
| 41Y2768 | 8GB (2x4GB) PC2-5300 CL3 ECC DDR2 SDRAM RDIMM | |
| 41Y2771 | 4GB (2x2GB) PC2-5300 CL5 ECC DDR2 667MHz SR RDIMM | |
| 43V7356 | 16GB Kit (2x 8GB DIMM) PC2-5300 CL5 ECC DDR2 SDRAM LP RDIMM4 | |
| 3935 |
41Y2760 41Y2761 |
1GB PC2-5300 CL5 ECC DDR2 SDRAM RDIMM |
| 3937 |
41Y2766 41Y2851 |
4GB PC2-5300 CL5 ECC DDR2 SDRAM RDIMM |
| 3938 |
43V7354 43V7355 |
8GB PC2-5300 CL5 ECC DDR2 SDRAM RDIMM |
| 3939 |
41Y2769 41Y2770 |
2GB PC2-5300 CL5 ECC DDR2 SDRAM RDIMM |
| 硬盘 | ||
|
40K1052 39R7366 |
73GB 10K 2.5" Hot-Swap SAS HDD | |
| 97 |
46M0889 46M0878 |
IBM 320GB High IOPS SD Class SSD PCIe Adapter. |
| 3746 |
43W7723 43W7722 |
IBM 50GB SATA 2.5" SFF HS High IOPS SSD SFF |
| 5199 |
42D0654 42D0652 |
IBM 146GB 15K 6Gbps SAS |
| 5410 |
42D0694 42D0692 |
IBM 500GB 7200 6Gbps NL SAS 2.5" SFF HS |
| 5509 |
42D0612 42D0613 42D0614 |
IBM 300GB 10K 6Gbps SAS |
| 5534 |
43X0824 43X0825 43X0826 |
146GB 10K 2.5" Hot-Swap SAS HDD |
| 5543 |
43X0841 43X0837 43X0839 |
73GB SAS 15K 2.5" SFF HS |
| RAID卡 | ||
| 3557 |
43W4281 43W4280 43W4282 |
ServeRAID-MR10k SAS/SATA |
| 3559 |
43W4340 44E8825 43W4339 |
ServeRAID-MR10is VAULT SAS/SATA Controller |
| 3584 |
44E8839 44E8695 44E8696 |
ServeRAID-MR10M SAS/SATA Controller with Remote Battery Kit |
| SCSI卡 | ||
| 43W4324 | IBM Ultra 320 SCSI PCIe Controller | |
| 网卡 | ||
| 1485 |
39Y6071 39Y6066 |
NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 1637 |
42C1823 42C1820 42C1822 |
Brocade 10Gb CNA for IBM System x PCIe 8x |
| 2944 |
39Y6129 39Y6126 |
PRO/1000 PT Dual Port Server Adapter by Intel |
| 2974 |
39Y6138 39Y6139 39Y6136 |
PRO/1000 PT Quad Port Server Adapter |
| 2995 |
42C1783 42C1780 49Y4205 |
NetXtreme II 1000 Express Dual Port Ethernet |
| 5451 |
42C1792 42C1793 42C1790 |
NetXtreme II 10 GigE Express Fiber SR Adapter |
| 5751 |
42C1800 42C1802 42C1803 |
QLogic 10Gb CNA for IBM System x PCI-E |
| 5766 |
49Y4223 49Y4220 |
NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 适配卡 | ||
| 25R8060 | IBM SAS HBA Controller2 | |
| 44E4373 | PCI switch-card assembly | |
| 96 |
46M0888 46M0877 |
IBM 160GB High IOPS SS Class SSD PCIe adapter. |
| 1649 |
46M0900 46M0898 |
IBM 320GB High IOPS MS Class SSD PCIe Adapter. |
| 2975 |
42C1752 42C1753 42C1750 |
PRO/1000 PF Server Adapter Half x4 PCIe by intel. |
| 2976 |
39Y6148 39Y6149 39Y6146 |
QLogic iSCSI Single Port PCIe HBA for IBM System x |
| 2977 |
42C1772 42C1773 42C1770 |
QLogic iSCSI Dual Port PCIe HBA for IBM System x |
| 3583 |
44E8702 44E8700 |
IBM 3Gb SAS HBA Controller v2 - PCI-E x8 1,2 N 2 |
| 5982 |
68Y7355 46M0907 |
IBM 6Gb SAS HBA |
| 光纤卡 | ||
| 1698 |
43W7491 42C2069 42C2070 |
Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 |
43W7492 42C2071 42C2072 |
Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 3567 |
42C2179 39R6525 39R6526 |
QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 3568 |
42C2182 39R6527 39R6528 |
QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x |
| 3578 |
42D0502 42D0501 42D0507 |
QLogic 8Gb FC Single-port HBA for IBM System x |
| 3579 |
42D0511 42D0510 42D0516 |
QLogic 8Gb FC Dual-port HBA for IBM System x |
| 3580 |
42D0486 42D0485 42D0491 |
Emulex 8Gb FC Single-port HBA for IBM System x |
| 3581 |
42D0495 42D0494 42D0500 |
Emulex 8Gb FC Dual-port HBA for IBM System x |
| 3589 |
46M6051 46M6049 42D0549 42D6049 46M6061 |
Brocade 8Gb FC Single-port HBA for IBM System x |
| 3591 |
46M6052 46M6050 46M6062 |
Brocade 8Gb FC Dual-port HBA for IBM System x |
| 3885 |
59Y1988 59Y1987 59Y1992 |
Brocade 4Gb FC Single-port HBA for IBM System x |
| 3886 |
59Y1994 59Y1993 59Y1998 |
Brocade 4Gb FC Dual-port HBA for IBM System x |
| 电源 | ||
| 21303RX | IBM UPS 7500Xhv | |
| 21304RX | IBM UPS 10000Xhv | |
| 24195KX | IBM UPS5000 HV | |
| 39Y8857 | IBM UPS 3U Online Battery Pack | |
| 1991 |
43W8614 59Y6142 |
1440W Power Supply |
| 电池 | ||
| 33F8354 | 3.0 V battery | |
| 43W4342 | Battery. | |
| 光驱 | ||
| 43W4603 | CD-RW/DVD drive (primary) (MT 7141) | |
| 43W4605 | DVD-RW drive (MT 7141) | |
| 43W4607 | DVD-RW drive (MT 7141) | |
| 43W4619 | Ultra slim DVD drive (MT 7141) | |
| 磁带机 | ||
| 3573-xxx | IBM System Storage TS3100/TS3200 Tape Library (all models) | |
| 3576-xxx | IBM System Storage TS3310 Modular Tape Library (all models) | |
| 3584-xxx | IBM System Storage TS3500 Tape Library (all models) | |
| 87651UX | 1U Tape Drive Enclosure | |
| 8767HHX | Half High Tape Drive Enclosure | |
| 5364 |
39M5621 39M5658 |
IBM Half High LTO Gen 2 Tape Drive 2 SCSI 89mm |
| 5393 |
43W8490 43W8478 |
IBM Half High LTO Gen 3 SAS Tape Drive |
| 5397 |
44E8897 44E8895 |
IBM Half-high LTO Gen 4 SAS Tape Drive |
| 风扇 | ||
| 43W9559 | Heat sink | |
| 43W9578 | Fan (92 mm) | |
| 44E4563 | Fan (120 mm) | |
| 46C9084 | ServeRAID-MR10i/is/M Replacement Battery | |
| 导轨 | ||
| 44E4570 | EIA mounting bracket (right and left) (all models) | |
| 线缆 | ||
| 3751 | 39Y7953 | 3m Console Switch Cable (USB) |
| 其它 | ||
| 172317X | 1U 17in Flat Panel Console Kit | |
| 172319X | 1U 19in Flat Panel Console Kit | |
| 172621X | IBM System Storage DS3200 | |
| 172622X | IBM System Storage DS3200 | |
| 172631X | IBM System Storage DS3300 iSCSI Single Controller Model | |
| 172632X | IBM System Storage DS3300 iSCSI Dual Controller Model | |
| 172641X | IBM System Storage DS3400 | |
| 172642X | IBM System Storage DS3400 | |
| 172701X | IBM System Storage EXP3000 | |
| 17351GX | IBM Local 2x8 Console Manager (LCM2) | |
| 17352GX | IBM Global 2x16 Console Mngr(GCM2) | |
| 17353LX | IBM 1 x 8 Console Switch | |
| 17354LX | IBM 2 x 16 Console Switch | |
| 17421xx | TotalStorage DS4400 Midrange Disk System (all | |
| 1754D1X | IBM Global 2X2X16 Console Manager | |
| 1754D2X | IBM Global 4X2X32 Console Manager | |
| 18147Vx | IBM System Storage DS4200 Midrange Disk System (all models) | |
| 18147xx | IBM System Storage DS4700 Midrange Disk System (all models) | |
| 18158xx | IBM System Storage DS4800 Midrange Disk System (all models) | |
| 24P82xx | IBM Total Storage DS4300 Model 60U with | |
| 362516X | IBM RDX 160 GB External USB Drive | |
| 362532X | IBM RDX 320 GB External USB Drive | |
| 362550X | IBM RDX 500 GB External USB Drive | |
| 39M2816 | IBM Dpi C13 PDU+ | |
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| 39Y8941 | IBM Enterprise C13 PDU | |
| 39Y8948 | IBM Enterprise C19 PDU | |
| 40K1692 | IBM External USB Floppy Drive | |
| 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| 41Y8283 | IBM USB Memory Key for VMware ESXi 3.5 Update 5 | |
| 42D0545 | 2 GB Hypervisor flash device | |
| 44E4249 | IBM XpandOnDemand Scalability Kit (2-3 Node)1 | |
| 44E4250 | 4-Chassis Cable Kit1 | |
| 44E4372 | Operator information panel assembly | |
| 44E4552 | DVD housing with interposer card assembly (MT 7141) | |
| 44E4553 | Microprocessor VRM | |
| 44E4576 | Fan cage | |
| 44E4587 | Miscellaneous hardware parts: M6 screws for slide rails (4x), RSA II knob, left and right shipping brackets. | |
| 46C5364 | IBM RDX160 Internal USB Bundle | |
| 46C5387 | IBM RDX320 Internal USB Bundle | |
| 46C5388 | IBM RDX500 Internal USB Bundle | |
| 46M3510 | Chassis assembly | |
| 46M3511 | Media-hood assembly | |
| 46M4002 | IBM 1U 9 C19/3 C13 Switched and Monitored DPI PDU | |
| 46M4003 | IBM 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | |
| 46M4004 | IBM 1U 12 C13 Switched and Monitored DPI PDU | |
| 46M4005 | IBM 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | |
| 46M5968 | Remote Supervisor Adapter II | |
| 71762MX | IBM Ultra Density Enterprise C19/C13 PDU+ Module | |
| 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | |
| 71763MU | IBM Ultra Density Enterprise C19/C13 PDU+ 60A/208V/3ph | |
| 71763NU | IBM Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph | |
| 93072RX | IBM 25U S2 standard rack | |
| 93074RX | NetBAY S2 42U Standard Rack Cabinet | |
| 93074XX | IBM 42U S2 expansion rack | |
| 93084EX | IBM 42U Enterprise Expansion Rack | |
| 93084PX | IBM 42U Enterprise Rack | |
| 99564RX | IBM S2 42U Dynamic Standard Rack Cabinet | |
| 99564XX | IBM S2 42U Dynamic Expansion Rack Cabinet | |
| 2018 | IBM 11U Office Enablement Kit | |
| 3756 |
39Y7960 39M2895 |
IBM USB Conversion Option Pack |
| 3757 |
39Y8072 43V6147 |
IBM Single Cable USB Conversion Option (UCO) |
| 3758 |
39Y7957 39M2894 |
Virtual Media Conversion Option |
| 5340 |
69Y2045 46M5382 |
IBM Serial Conversion Option (SCO) |
| 5341 |
69Y2046 46M5383 |
IBM Virtual Media Conversion Option Gen2 (VCO2) |
| 8750 |
40K9490 40K9584 |
IBM Preferred Pro Keyboard USB - US English 103P |
| 8912 |
40K9491 40K9200 |
IBM 2 Button Optical Wheel Mouse - Black - USB |
| 8913 |
40K9492 40K9201 |
IBM 3 Button Optical Mouse - Black - USB |
