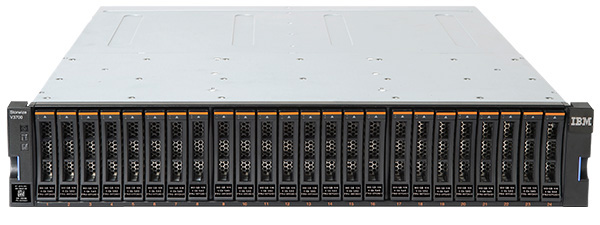

2072-24C

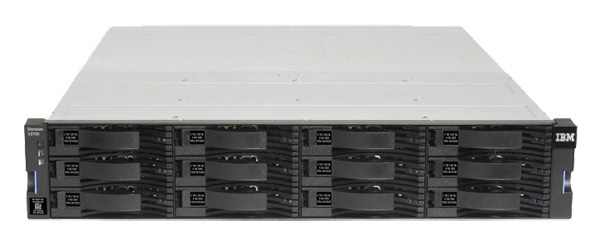

2072-12C
|
机器型号 |
2072-12C:3.5机型，2072-24C:2.5机型 |
|
扩展柜型号 |
2072-12E，2072-24E,最多可以接9个扩展柜 |
|
主机接口 |
1Gbps iSCSI（选配8Gb光纤通道或10Gbps iSCSI/基于以太网的光纤通道主机端口） |
|
用户界面 |
Storwize V3700图形用户界面 |
|
单/双控制器 |
双控制器型号 |
|
每个控制器的缓存容量 |
4GB可升级到8GB |
|
驱动器类型 |
双端口、热插拔6Gb SAS磁盘驱动器 |
|
受支持的驱动器 |
小型（SFF）2.5英寸磁盘驱动器/大型（LFF）3.5英寸磁盘驱动器/SSD驱动器 |
|
支持的最大驱动器数量 |
SFF机柜：24个2.5英寸驱动器/LFF机柜：12个3.5英寸驱动器 |
|
RAID级别 |
RAID 0、1、5、6和10 |
|
风扇与电源 |
全冗余、热插拔 |
|
机架支持 |
标准19英寸机架安装机柜 |
|
管理软件 |
Storwize V3700机器编码 |
|
各个系统附带的高级功能 |
内部虚拟化、自动精简配置、单向数据迁移和FlashCopy（最多64个目标） |
|
可选高级功能 |
FlashCopy升级与Easy Tier |
|
受支持的系统 |
如需目前支持的服务器、操作系统、主机总线适配器、群集应用程序以及SAN交换机和导向器的清单，请参阅System Storage Interoperation Center：ibm.com/systems/support/storage/config/ssic |
|
Part |
Part number |
|
LFF Enclosure midplane |
00Y2420 |
|
SFF Enclosure midplane |
00Y2422 |
|
PSU—ac |
45W8841 |
|
Expansion canister |
00Y2527 |
|
Storwize V3700 node canister (does not include battery pack) |
00AR108 (machine code version 6.4.1.3 or higher) |
|
|
00AR004 (machine code version 6.4.1.2 or lower) |
|
Node canister battery |
00Y4643 |
|
Node canister memory (4 GB DIMM) |
00Y2416 |
|
LFF drive blank |
42R7992 |
|
SFF drive blank |
45W8680 |
|
Rack rail kit |
69Y0233 |
|
LFF Enclosure hubcap right |
00Y2436 |
|
SFF Enclosure hubcap right |
00Y2512 |
|
Enclosure hubcap left |
00Y2417 |
|
Miscellaneous hardware kit of rail kit parts |
00Y2437 |
|
4 port 1 Gbps Ethernet host interface card |
00Y2418 |
|
2 port 10 Gbps Ethernet host interface card—no SFPs |
00Y2419 |
|
10 Gbps SW SFP |
31P1630 |
|
4 port FC host interface card—no SFPs |
00Y2421 |
|
8 Gbps SW SFP |
85Y6278 |
|
LFF HDD—2 TB NL SAS |
00Y2424 |
|
LFF HDD—3 TB NL SAS |
00Y2425 |
|
LFF HDD—4 TB NL SAS |
00Y2426 |
|
SFF HDD—146 GB 15K RPM |
00Y2427 |
|
SFF HDD—300 GB 15K RPM |
00Y2428 |
|
SFF HDD—600 GB 10K RPM |
00Y2430 |
|
SFF HDD—900 GB 10K RPM |
00Y2431 |
|
SFF HDD—1.2 TB 10K RPM |
00Y2432 |
|
SFF HDD—500 GB NL SAS 7.2K RPM |
00Y2433 |
|
SFF HDD—1 TB NL SAS 7.2K RPM |
00Y2434 |
|
SFF SSD—200 GB SSD |
00Y2413 |
|
SFF SSD—400 GB SSD |
00Y2513 |
|
1 m FC cable |
39M5699 |
|
5 m FC cable |
39M5700 |
|
25 m FC cable |
39M5701 |
|
10 m OM3 FC cable |
41V2120 |
|
Mini SAS HD to mini SAS HD—0.6 m |
00J0094 |
|
Mini SAS HD to mini SAS HD—1.5 m |
74Y9029 |
|
Mini SAS HD to mini SAS HD—3 m |
74Y9030 |
|
ac power cord Argentina 2.8 m |
39M5068 |
|
ac power cord Japan 2.8 m |
39M5199 |
|
ac power cord Europe 2.8 m |
39M5123 |
|
ac power cord Italy 2.8 m |
39M5165 |
|
ac power cord Australia and New Zealand 2.8 m |
39M5102 |
|
ac power cord Denmark 2.8 m |
39M5130 |
|
ac power cord S. Africa 2.8 m |
39M5144 |
|
ac power cord UK 2.8 m |
39M5151 |
|
ac power cord Switzerland 2.8 m |
39M5158 |
|
ac power cord Israel 2.8 m |
39M5172 |
|
ac power cord China 2.8 m |
39M5206 |
|
ac power cord Korea 2.8 m |
39M5219 |
|
ac power cord India 2.8 m |
39M5226 |
|
ac power cord Brazil 2.8 m |
39M5240 |
|
ac power cord Taiwan 2.8 m |
39M5247 |
|
ac power cord US and Canada 2.8 m |
39M5081 |
|
Power jumper cord—2.8 m |
39M5377 |
|
0.6 m Yellow Cat5e Cable |
40K8971 |
|
1.5 m Yellow Cat5e Cable |
40K8972 |
|
3 m Yellow Cat5e Cable |
40K8973 |
|
10 m Yellow Cat5e Cable |
40K8974 |
|
25 m Yellow Cat5e Cable |
40K8975 |
|
0.6 m Green Cat5e Cable |
40K8976 |
|
1.5 m Green Cat5e Cable |
40K8977 |
|
3 m Green Cat5e Cable |
40K8978 |
|
10 m Green Cat5e Cable |
40K8979 |
|
25 m Green Cat5e Cable |
40K8980 |
|
0.6 m Blue Cat5e Cable |
40K8966 |
|
1.5 m Blue Cat5e Cable |
40K8967 |
|
3 m Blue Cat5e Cable |
40K8968 |
|
10 m Blue Cat5e Cable |
40K8969 |
|
25 m Blue Cat5e Cable |
40K8970 |
Description/Part number/Feature code/(Models 12C,24C, 2DC)/Maximum qty per one controller unit
控制器子卡
Host connectivity card options
6Gb SAS 4 Port Host Interface Card 00MJ093 ACHJ 2
8Gb FC 4 Port Host Interface Card 00MJ095 ACHK 2
1Gb iSCSI 4 Port Host Interface Card 00MJ097 ACHL 2
10Gb iSCSI - FCoE 2 Port Host Interface Card 00MJ099 ACHM 2
SFP options for 8 Gb FC host interface card (ships with a pair of 8 Gb FC SW SFP transceivers)
8Gb FC SW SFP Transceivers (Pair) 00MJ103 ACHS 2
8Gb FC LW SFP Transceivers (Pair) 00MJ105 ACHT 4
Cable options for FC, FCoE, and 10 Gb iSCSI host connectivity (AC-powered models only)
Lenovo 0.5m LC-LC OM3 MMF Cable 00MN499 ASR5 8
Lenovo 1m LC-LC OM3 MMF Cable 00MN502 ASR6 8
Lenovo 3m LC-LC OM3 MMF Cable 00MN505 ASR7 8
Lenovo 5m LC-LC OM3 MMF Cable 00MN508 ASR8 8
Lenovo 10m LC-LC OM3 MMF Cable 00MN511 ASR9 8
Lenovo 15m LC-LC OM3 MMF Cable 00MN514 ASRA 8
Lenovo 25m LC-LC OM3 MMF Cable 00MN517 ASRB 8
Lenovo 30m LC-LC OM3 MMF Cable 00MN520 ASRC 8
Cable options for FC, FCoE, and 10 Gb iSCSI host connectivity (AC- and DC-powered models)
1m Fiber Cable (LC) (FC only) 00MJ168 ACSJ 8
5m Fiber Cable (LC) (FC only) 00MJ170 ACSK 8
10m OM3 Fiber Cable (LC) 00MJ174 ACSS 8
25m Fiber Cable (LC) (FC only) 00MJ172 ACSL 8
SAS host connectivity cables - Mini-SAS HD (controller) to Mini-SAS (host)
0.6m SAS Cable (mSAS HD to mSAS) 00MJ162 ACSA 14
1.5m SAS Cable (mSAS HD to mSAS) 00MJ163 ACSB 14
3m SAS Cable (mSAS HD to mSAS) 00MJ166 ACSC 14
SAS host connectivity cables - Mini-SAS HD (controller) to Mini-SAS HD (host)
0.6m SAS Cable (mSAS HD to mSAS HD) 00MJ176 ACTA 14
1.5m SAS Cable (mSAS HD to mSAS HD) 00MJ178 ACTB 14
3m SAS Cable (mSAS HD to mSAS HD) 00MJ180 ACTC 14
硬盘
Description/Part number/Feature code/(Models 12C,12E)/Maximum qty per one LFF unit
3.5-inch SAS hot-swap HDDs
300 GB 15,000 rpm 6 Gb SAS 3.5 Inch HDD 00MJ135 ACKS 12
600 GB 15,000 rpm 12 Gb SAS 3.5 Inch HDD 00MJ137 ACKT 12
900 GB 10,000 rpm 6 Gb SAS 3.5 Inch HDD 00MJ131 ACKJ 12
1.2 TB 10,000 rpm 6 Gb SAS 3.5 Inch HDD 00MJ133 ACKK 12
1.8 TB 10,000 rpm 12 Gb SAS 3.5 Inch HDD 00MN524 ASTK 12
3.5-inch NL SAS hot-swap HDDs
2 TB 7,200 rpm 6 Gb NL SAS 3.5 Inch HDD 00MJ125 ACKA 12
3 TB 7,200 rpm 6 Gb NL SAS 3.5 Inch HDD 00MJ127 ACKB 12
4 TB 7,200 rpm 6 Gb NL SAS 3.5 Inch HDD 00MJ129 ACKC 12
6 TB 7,200 rpm 12 Gb NL SAS 3.5 Inch HDD 00MN522 ASTJ 12
8 TB 7,200 rpm 12 Gb NL SAS 3.5 Inch HDD 00WC008 AT0T 12
Description/Part number/Feature code/(Models 24C,24E, 2DC)/Maximum qty per one SFF unit
2.5-inch SAS hot-swap HDDs
300 GB 15,000 rpm 6 Gb SAS 2.5 Inch HDD 00MJ141 ACLB 24
600 GB 10,000 rpm 6 Gb SAS 2.5 Inch HDD 00MJ145 ACLK 24
600 GB 15,000 rpm 12 Gb SAS 2.5 Inch HDD 00MJ143 ACLC 24
900 GB 10,000 rpm 6 Gb SAS 2.5 Inch HDD 00MJ147 ACLL 24
1.2 TB 10,000 rpm 6 Gb SAS 2.5 Inch HDD 00MJ149 ACLM 24
1.8 TB 10,000 rpm 12 Gb SAS 2.5 Inch HDD 00MN526 ASTL 24
2.5-inch NL SAS hot-swap HDDs
1 TB 7,200 rpm 6 Gb NL SAS 2.5 Inch HDD 00MJ151 ACLT 24
2 TB 7,200 rpm 12 Gb NL SAS 2.5 Inch HDD 00WC011 AT0W 24
2.5-inch SAS hot-swap SSDs
200 GB 12 Gb SAS 2.5 Inch Flash Drive 00MJ154 ACMD 24
400 GB 12 Gb SAS 2.5 Inch Flash Drive 00MJ156 ACME 24
800 GB 12 Gb SAS 2.5 Inch Flash Drive 00MJ158 ACMF 24
1.6 TB 12 Gb SAS 2.5 Inch Flash Drive 00WC014 AT0Z 24
IBM V3500 V3700 存储控制器电池，90Y7689 44X3320 90Y7632 00Y4643 00Y4594
