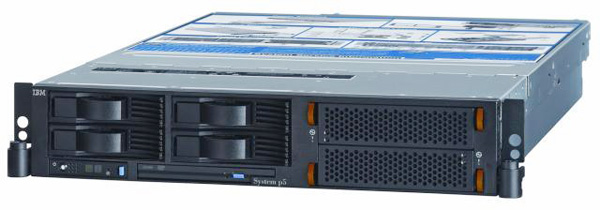

IBM P5 51A (9110-51A)
| 安装类型 | 机架式 |
| 高度 | 2U |
| CPU信息 |
1 路或 2 路 64 位 1.9 或 2.1 GHz 的 POWER5+ 处理器， 1 路、2 路或 4 路 1.5 或 1.65 GHz 处理器，1.9 MB L2 和 36 MB L3 高速缓存。 CPU 集成在主板上，要跟主板一起更换 |
| CPU类型 | POWER5+ |
| CPU插槽数 | 1 |
| CPU激活 | 需要VPD |
| 硬盘背板 | 只有1个，最多插4个硬盘 |
| 硬盘容量 | 最大1200G |
| 内存参数 | 266 MHz DDR-1,插槽位在主板上 |
| 内存容量范围 | 1G-32G |
| 内存插槽数量 | 8 |
| 内存是否需要激活 | 不需要激活 |
| 电源参数 | 100v 到 127v 或 200v 到 240v 交流 |
| 电源数量 | 2 |
| 介质 | DVD-ROM 或 DVD-RAM |
| 适配器插槽 | 3 个热插拔 3.3v PCI-X（3 个 64 位 133MHz） |
| 端口 | 2 个以太网 10/100/1000 Mbps 端口、1 个外置 SCSI 端口、2 个串口、2 个 USB端口、2 个 HMC 端口、键盘和鼠标。 |
| I/O适配器 | 双通道 Ultra320 SCSI 控制器（内置和外置端口；可选的 RAID 子卡） |
| I/O扩展 | IBM 2104 Expandable Storage Plus |
| 发布日期 | 2005/2/18 |
| 下架日期 | 2010/7/30 |
| 服务截止日期 | |
| 操作系统 | AIX 5L V5.2/5.3,SUSE LINUX Enterprise Server 9 或者 POWER™ （SLES 9）或更高版 本，Red Hat Enterprise LinuX AS 3 f或者 POWER Update 4（RHEL AS 3）或更高版本。 |
| 产品尺寸 | 机架扩展笼：高 3.5" x 宽 71.2" x 长 27.0"（89mm x 437mm x 686mm） |
| 产品重量 | 重 16.8 千克 （37 磅） |
| FC号 | PN号 | 描述 |
| CPU | ||
| 7656 |
03N7197 03N7198 10N6650 10N6651 10N8036 |
4-way 1.5GHz POWER5+ Processor Card, 36MB L3 Cache |
| 7655 |
03N7207 03N7208 10N6658 10N6659 10N8044 |
2-way 1.9GHz POWER5+ Processor Card, 36MB L3 Cache |
| 7654 |
03N7217 10N6666 10N8052 |
1-way 1.9GHz POWER5+ Processor Card, 36MB L3 Cache |
|
8282 834F |
10N6604 32N1355 |
4-core 1.65GHz POWER5+ Processor Card, 2x36MB L3 Cache |
|
8284 834E |
10N6614 32N1361 |
2-core 2.1GHz POWER5+ Processor Card, 36MB L3 Cache |
|
8283 834D |
10N6624 10N8074 32N1367 |
1-core 2.1GHz POWER5+ Processor Card, 36MB L3 Cache |
| 许可协议 | ||
| 7283 | One Processor Entitlement for Processor Feature #8283 | |
| 硬盘 | ||
| 1969 |
03N5267 03N6332 26K5162 26K5259 26K5574 52P8627 80P3408 80P6321 |
146.8 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1970 |
03N5277 03N6341 03N6342 24P3749 26K5164 26K5254 26K5570 52P8628 80P6324 80P6422 |
36.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1971 |
03N5281 03N5282 03N6346 03N6347 24P3750 26K5165 26K5255 26K5571 52P8629 80P6325 80P6424 |
73.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1968 |
03N5261 03N5262 03N6327 17R6169 26K5161 26K5250 26K5573 52P8626 80P3406 80P6320 |
73.4 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1972 |
03N5288 03N6351 03N6352 26K5166 26K5256 26K5572 80P3412 80P6426 |
146.8 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1973 |
03N5272 03N6337 03N6357 26K5163 26K5284 26K5575 80P3410 80P6322 |
300 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 3585 |
10N7195 10N7211 10N8578 |
300 GB 15K RPM SCSI Disk Drive |
| 内存 | ||
| 1932 |
12R8239 15R7170 |
4GB (2x2GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1934 |
12R8247 15R7172 |
8GB (2x4GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1930 |
12R8251 15R7166 |
1GB (2x512MB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1931 |
12R8255 15R7168 |
2GB (2x1GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 8230 | Memory Offering -- 16GB (Multiples of 4 of 2x2GB DIMMs) | |
| 8231 |
Memory Offering -- 32GB 64GB 96GB 128GB (Multiples of 4 of 2x4GB DIMMs) |
|
| 电源 | ||
| 7989 |
03N4489 03N4490 03N4491 03N4492 03N4493 03N4494 03N4496 03N4497 03N4498 03N4499 03N4500 03N4501 03N4502 03N4503 03N4504 03N4505 03N4628 03N4629 03N4630 03N4631 03N4632 03N4633 03N4634 03N4635 03N4636 03N4637 39J4710 97P5834 |
Power Supply, 700 Watt AC, Hot-swap, Base or Redundant |
| 磁带机 | ||
| 1955 |
23R2618 23R2619 |
36 72 GB 4mm Internal Tape Drive |
| 网卡 | ||
| 1979 |
00G2380 03N6070 03N6525 52P8642 80P6445 |
10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 1983 |
00G2380 03N6070 52P8643 80P6450 |
IBM 2-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 1954 |
00N5444 03N5446 |
4-Port 10 100 1000 BaseT Ethernet PCI-X Adapter |
| 5722 |
576A 03H4588 10N8263 10N9776 10N9777 12R6249 12R9315 80P6634 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5721 |
573A 03N4590 05N6768 10N8264 10N9774 10N9775 11P3847 12R9314 15R75836 74Y2621 80P6636 80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 1981 |
03N6970 05N6768 11P3847 12R9314 15R7536 52P8614 80P6452 |
10 Gigabit Ethernet -SR PCI-X Adapter |
| 1982 |
03N6972 12R6249 12R9315 52P8615 80P6453 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 1984 |
03N6974 05H6768 11P3847 12R9314 15R7536 52P8644 80P6451 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 1978 |
03N6981 03N6982 05N6768 11P3847 12R9314 15R7536 52P8641 83P6444 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 光纤卡 | ||
| 1905 |
03N5005 03N5010 46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 1910 |
03N5020 03N5025 05N6768 11P3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 1977 |
03N6439 03N7067 05N6768 10N8623 11P3847 12R9314 15R7536 52P8633 80P6101 80P6455 |
2 Gigabit Fibre Channel PCI-X Adapter |
| 1986 |
26K6490 30R5209 32R1926 49Y4236 52P8480 80P4092 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 1987 |
30R5509 52P8456 80P4094 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| RAID卡 | ||
| 1908 |
39J1985 39J3541 39J4610 39J5676 |
Dual Channel SCSI RAID Enablement Card |
| 1913 |
571B 39J2418 39J5026 42R4857 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter, Cache battery pack 39J5555. Note: The 1913 adapter is not supported by i5 OS. |
| 1975 |
39J5107 52P8630 80P6515 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| SCSI卡 | ||
| 1912 |
39J2421 39J4998 42R4862 42R4362 52P8558 |
PCI-X DDR Dual Channel Ultra320 LVD SCSI Adapter |
| 1974 |
52P8632 80P6513 |
PCI-X Dual Channel Ultra320 SCSI Adapter |
| 显卡 | ||
| 2848 |
00P2526 00P2530 00P5756 00P5758 09P3209 09P5074 09P5269 09P5758 80P4527 |
PCI 2D Entry Graphics Adptr |
| 2849 |
00P5756 00P5758 03N5853 09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 1980 |
03N5853 03N5855 52P8645 80P6408 80P6411 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 适配卡 | ||
| 6312 |
00P3119 10N7380 87H3588 |
Quad Digital Trunk Telephony PCI Adapter |
| 2947 |
07L8796 53G0638 84H3413 87H3311 87H3410 87H3413 87H3420 87H3427 87H3439 87H3440 87H3442 87H3450 87H3500 87H3565 87H3566 87H3567 87H3568 87H3613 87H3615 87H3616 87H3620 87H3617 87H3621 87H3622 87H3625 87H3626 87H3627 87H3630 87H3631 87H3632 87H3663 87H3715 87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 4764 |
12R6540 12R6714 41U0441 41U0442 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 1820 |
26K7434 26K7452 |
PCI-X Dual-port 4x IB HCA |
| 2738 |
28EF 52P8639 80P2994 80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001 07L9822 11H5967 11H5968 11H5969 11H6011 42R4761 6298964 93H6540 93H6541 94H6541 |
8-Port Asynchronous Adapter EIA-232 RS-422, PCI bus |
| 5723 |
64P1243 80P4353 |
2-Port Asynchronous EIA-232 PCI Adapter |
| 光驱 | ||
| 1903 |
03N4536 39J0552 42R5289 |
IDE Slimline DVD-ROM Drive |
| 1900 |
03N4539 03N4540 18P8166 39J3802 39J3803 39J3806 39J3807 39J5767 39J5768 42R7965 42R7966 |
4.7 GB IDE Slimline DVD-RAM Drive |
| 线缆 | ||
| 3925 |
00P2165 23R4632 40H6328 40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 |
Asynch Printer Terminal Cable 9-pin to 25-pin 4M |
| 4256 |
00P2969 10N7374 32N1311 44P1375 |
Extender Cable - USB Keyboards 2M |
| 2459 |
00P4023 11P1374 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 2118 |
01K6497 07L9628 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 7802 |
05N5292 41V0143 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 2861 |
07L8817 87H3404 87H3405 87H3406 87H3439 87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 4242 |
07L9633 08L0491 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 2877 |
08L1215 42R4756 |
IBM ARTIC960RxD Quad DTA, H.100, 4-Drop Cable |
| 2456 |
09P3044 11P1352 11P1373 12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2934 |
10N6535 12H1204 40H0744 40H2206 |
Asynchronous Terminal Printer Cable EIA-232 |
| 3124 |
10N7158 88G4771 88G4853 |
Serial to Serial Port Cable for Drawer Drawer |
| 3125 |
10N7159 88G4772 88G4854 |
Serial to Serial Port Cable for Rack Rack |
| 3927 | 10N7712 | Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 7801 |
16R0449 41V0479 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 1836 |
21P8318 26R0847 26R0848 42R6245 44V5083 |
8 meter 4x Cable |
| 1835 |
26R0813 42R6244 44V5082 97P6113 |
3 meter 4x Cable |
| 2936 |
30F9453 42R5206 53F3205 53F3662 6223741 6323741 |
Asynchronous Cable EIA-232 V.24 |
| 2951 |
33F8985 93H2899 93H5263 |
Cable V.24 EIA-232 |
| 1839 |
39J4319 42R6243 44V5081 |
1.5 meter 4x Cable |
| 2954 |
40F9904 93H2902 93H5267 |
Cable X.21 |
| 2425 |
40H2172 52G4233 |
2.5M 16-bit SCSI-2 System-to-System Cable |
| 2114 |
40H6603 52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 8132 |
43F0936 43F0937 43G0936 |
128-Port Asynchronous Controller Cable 23cm (9-Inch |
| 8133 |
43G0935 51G8610 |
RJ-45 to DB-25 Converter Cable |
| 8131 |
43G0937 51G8608 |
128-Port Asynchronous Controller Cable 4.5 Meter |
| 2863 |
53G0638 87H3407 87H3408 87H3409 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 4691 | 53P2237 | Rack Status Beacon Cable Junction Box To Drawer Or Status Beacon |
| 4692 | 53P2854 | Rack Status Beacon Cable Junction Box Daisy Chain |
| 2952 |
71F0163 93H2900 93H5264 |
Cable V.35 |
| 2953 |
73H2508 93H2901 93H5265 |
Cable V.36 EIA-499 |
| 2864 |
87H3398 87H3399 87H3400 87H3442 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V 10A |
|
| 6460 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 | |
| 6469 | Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 | |
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #25 |
|
| 6479 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 |
|
| 6487 | Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 | |
| 6488 |
Power Cord (9-foot To Wall OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #66 |
|
| 6651 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall OEM PDU (250V 15A Plug Type #76 |
|
| 6660 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking | |
| 6665 |
Power Cord 3 M (10 ft Drawer to IBM PDU 250V 10A |
|
| 6669 | Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking | |
| 6670 | Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking | |
| 6671 |
Power Cord (9-foot) Drawer to IBM PDU 250V 10A |
|
| 6672 |
Power Cord (5-foot) Drawer to IBM PDU 250V 10A |
|
| 6680 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 | Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) | |
| 导轨 | ||
| 7166 |
42R3866 52P8414 |
IBM OEM Rack-mount Drawer Rail Kit |
| 7999 | 52P8412 | OEM Rack-mount Drawer Bezel and Hardware |
| 7195 | IBM Rack-mount Drawer Bezel and Hardware | |
| 电池 | ||
|
04N2496 22R2717 42R5070 44L0313 |
Battery for raid card. | |
| 其他 | ||
| 3637 |
04N7526 04N7527 04N7532 13F9959 31P7507 31P7509 31P7511 31P7513 31P7515 |
IBM T541H L150p 15" TFT Color Monitor |
| 3752 | 09P3035 | Service Package |
| 8136 |
09P4095 09P4096 40H2588 40H2589 |
Rack Mountable Remote Asynchronous Node 16-Port EIA-232 |
| 6598 |
12R7457 64P1426 |
Disk Slot Fillers (Quantity 4) |
| 3638 |
22P4543 73P2310 73P2311 73P2313 73P2316 |
C220P 21" Color Monitor |
| 3636 |
31P9263 31P9264 31P9265 31P9266 |
L200P Flat Panel Monitor |
| 3645 |
39Y9919 40k5342 |
IBM T117 Flat Panel Monitor |
| 3641 |
40K7317 40K5341 73P4360 |
T115 TFT 15" Color Display |
| 265 | AIX Partition Specify | |
| 266 | Linux Partition Specify | |
| 3640 | L171P TFT 17" Black Display | |
| 3642 | ThinkVision L191p Flat Panel Monitor | |
| 3644 | IBM T119 Flat Panel Monitor | |
| 4650 | Rack Indicator-Not Factory Integrated | |
| 4651 | Rack Indicator, Rack #1 | |
| 4660 | Rack Indicator, Rack #10 | |
| 4661 | Rack Indicator, Rack #11 | |
| 4662 | Rack Indicator, Rack #12 | |
| 4663 | Rack Indicator, Rack #13 | |
| 4664 | Rack Indicator, Rack #14 | |
| 4665 | Rack Indicator, Rack #15 | |
| 4666 | Rack Indicator, Rack #16 | |
| 5983 | USB Keybd-US English Euro | |
| 2591 |
03N4962 33P3339 52P8634 |
Ext 1.44GB Diskette Drive |
| 7432 | Advanced POWER Virtualization | |
| 9300 | Language Group Specify - US English | |
| 9461 | Month Indicator | |
| 9462 | Day Indicator | |
| 9463 | Hour Indicator | |
| 9464 | Minute Indicator | |
| 9465 | Qty Indicator | |
| 9466 | Countable Member Indicator | |
| 9630 | Express Product Offering 91101M1 | |
| 9631 | Express Product Offering 91101M2 | |
| 9632 | Express Product Offering 91101M3 | |
| 5005 | software preinstall | |
| 5959 | Full Width Quiet Touch Keyboard -- USB, Hungarian, #208 | |
| 52B0 |
03N7051 03N6119 |
PCI-adapter riser enclosure, double high |
| 52B1 |
03N7054 03N6122 |
PCI-adapter riser enclosure, single high |
| 39J2179 | Control panel and removable media tray assembly | |
