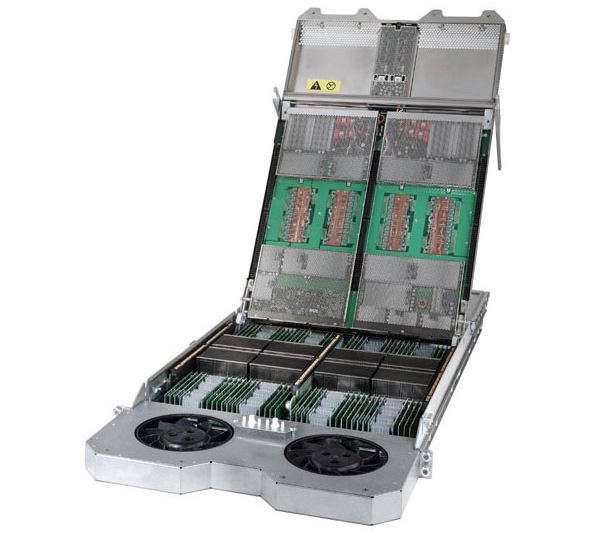

IBM P5 575 (9118-575)
| 机架类型 | 机架式 |
| 机架空间 | 2U |
| CPU信息 | 8路 2.2 GHz，或 16 路 1.9 GHz 的 64 位 POWER5+ 处理器。 |
| CPU类型 | POWER5+ |
| CPU插槽数 | 1 |
| CPU激活 | CPU需对应VPD卡，不对应可导致VPD卡锁死 |
| 硬盘信息 | 最大硬盘背板数量为 1 |
| 最大硬盘数量 | 2 |
| 内存提示 | DDR2 的内存。 |
| 内存容量范围 | 1GB-256GB |
| 内存插槽数量 | 64 |
| 内存是否需要激活 | 不需要激活 |
| 电源描述 | 100v 到 127v，或者 200v 到 240v 交流。 |
| 单机电源数量 | 2 |
| 介质托架 | 2 个热插拔 SCSI 磁盘托架，最多 600 GB 内部存储。 |
| 适配器插槽 | 4 个热插拔的 PCI-X 适配器插槽。 |
| 端口 | 2 个双 10/100/1000 Mbps 以太网端口，2 个 HMC 端口，可选的 I/O 抽屉的 RIO-2 集线器端口，4 个热插拔 PCI-x 适配器插槽。 |
| I/O适配器 | 2 个 Ultra3 SCSI 控制器。 |
| I/O扩展 | 一个 I/O 抽屉（可以由 2 个集群节点共享）提供 20 个 64 位 PCI-x 插槽和多达 16 个磁盘托架（36.4/73.4/146.8GB15K RPM 磁盘）。 |
| 发布日期 | 2005/2/18 |
| 下架日期 | 2008/8/29 |
| 服务截止日期 | |
| 操作系统 | AIX 5L Version 5.2 或者更高版本, SLES 9 或者更高版本, RHEL AS 4 或者更高版本。 |
| 产品尺寸 | 79.7"高x 30.9"宽x 60.2"长（2025 毫米 x 785 毫米 x 1530 毫米）。 |
| 产品重量 | 1,406 千克（3,095 磅）。 |
| FC号 | PN号 | 描述 |
| CPU | ||
| 7657 |
03N5889 03N6747 03N7119 |
16-Way 1.5GHz POWER5 CPU |
|
7836 260D |
03N5905 03N7251 39J0703 39J1356 |
8-Way 1.9GHz POWER5 Processor, 288 MB L3 Cache and System Planar |
| 7675 |
03N6924 03N7070 10N7911 |
8-Way 2.2GHz POWER5+ CPU |
| 7676 |
03N6930 03N7071 |
16-Way 1.9GHz POWER5+ CPU |
| 硬盘 | ||
| 3274 |
00P2672 00P3072 00P3811 00P3833 03N5260 03N6325 08K0283 26K5191 26K5291 26K5533 |
73.4GB 10K RPM U320 LVD 80-pin SCSI Disk Drive Carrier ST373307LC |
| 3275 |
00P2664 00P2665 00P3834 00P3835 03N5264 03N5265 03N6330 08K0273 26K5194 26K5294 26K5534 |
146.8GB 10K 80 Pin RPM U320 SCSI Disk Drive Carrier ST3146807LC |
| 3277 |
00P2692 00P2693 03N5275 03N6339 03N6340 07N6771 09P3631 26K5178 26K5278 26K5530 80P3159 |
36.4GB 15K 80 Pin U320 SCSI Disk Drive |
| 3279 |
03N5284 03N5285 03N5766 03N6349 03N6350 26K5182 26K5282 26K5532 26K5567 80P3402 80P3911 |
146.8GB 15K 80 Pin U320 SCSI Disk Drive Carrier |
| 3578 |
03N5270 03N5764 03N6335 26K5196 26K5296 26K5535 26K5565 71P7552 80P3157 80P3400 93N5270 |
300G 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 3278 |
00P2684 00P2685 00P5260 03N5279 03N5280 03N6344 03N6345 26K5180 26K5280 26K5531 55P4103 80P3163 |
73.4 GB 15,000 RPM Ultra3 SCSI Disk Drive Assembly |
| 3585 |
10N7195 10N7211 10N8578 |
300 GB 15K RPM SCSI Disk Drive |
| 内存 | ||
| 7892 |
30F0 12R8540 16R1521 |
2GB (4x512MB) DIMMs, 276-pin, 533 MHz DDR2 SDRAM |
| 7893 |
30F2 16R0233 12R8544 |
4GB (4x1GB) DIMMs, 276-pin, 533MHz DDR2 SDRAM |
| 7894 |
30F3 16R1530 |
8 GB (4x2GB) DIMMs, 276-pin, 533MHz DDR2 SDRAM |
| 7896 | 16R1577 | 16GB (4x4GB) DIMMs, 276-pin, 533MHz DDR2 SDRAM |
| 电源 | ||
| 7837 |
12R6302 12R9722 52P7523 |
Bulk Power Distribution Assembly |
| 系统板 | ||
| 28F0 |
03N6819 03N7185 |
I O backplane assembly |
| 网卡 | ||
| 5706 |
00G2380 00P4289 00P6131 03N5297 03N6070 53P5450 80P4024 80P7033 |
IBM 2-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 5701 |
00G2380 00P3056 00P4501 00P6130 03N6070 03N6524 09P5389 21P4745 53P5450 80P4024 80P7033 |
IBM 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 4962 |
00G2380 00P3056 03N6070 09P3196 09P5023 44P0321 |
10 100 Mbps Ethernet PCI Adapter II Type A-E |
| 5700 |
00P3055 00P4499 03N6981 05N6768 09P5386 10N8586 11P3847 12R9314 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5707 |
00P4290 00P6132 03N6973 05N6768 10N8587 11P3847 12R9314 15R7536 53P5450 80P4024 80P6451 80P7033 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5722 |
576A 03H4588 10N8263 10N9776 10N9777 12R6249 12R9315 80P6634 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5721 |
573A 03N4590 05N6768 10N8264 10N9774 10N9775 11P3847 12R9314 15R75836 74Y2621 80P6636 80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5740 | 03N5444 |
4-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 5718 |
03N6969 05N6768 11P3847 12R9314 15R7536 16R0299 |
10 Gigabit Ethernet-SR PCI-X Adapter |
| 5719 |
03N6971 12R6249 12R9315 80P4066 80P5758 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 光纤卡 | ||
| 5758 |
280D 03N5012 03N5014 46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5759 |
03N5027 03N5029 03N6768 10N8620 10N3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5713 |
03N6056 26K6490 30R5219 32R1926 46K7342 49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5714 |
03N6058 30R5519 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| 5716 |
280B 03N6441 03N7069 05N6768 10N8622 11P3847 12R9314 15R7536 80P4543 80P4544 |
2 Gigabit Fibre Channel PCI-X Adapter |
| RAID卡 | ||
| 5737 |
571B 39J2012 39J3534 39J5024 42R4855 42R8739 44V5587 97P4152 97P4847 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter, Cache battery pack 39J5555. |
| 5711 |
39J5105 44V3319 53P3880 80P2696 97P2702 97P3960 97P6516 97P6654 |
PCI-X Dual Channel Ultra320 SCSI RAID Blind Swap Adapter |
| SCSI卡 | ||
| 6204 |
03N3266 11K0671 |
PCI Universal Differential Ultra SCSI Adapter |
| 5736 |
39J1643 39J2862 39J3536 39J4996 39J5022 42R4860 42R8736 44V5591 42R4362 52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 5710 |
44V3315 53P0978 53P4705 97P2686 97P2687 97P3359 97P6513 97P6653 |
PCI-X Dual Channel Ultra320 SCSI Blind Swap Adapter |
| 显卡 | ||
| 2849 |
00P5756 00P5758 03N5853 09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 适配卡 | ||
| 4959 |
00P1476 03N3554 03N5554 04H7648 09P4146 55F4896 |
IBM Token-Ring PCI Adapter |
| 2947 |
07L8796 53G0638 84H3413 87H3311 87H3410 87H3413 87H3420 87H3427 87H3439 87H3440 87H3442 87H3450 87H3500 87H3565 87H3566 87H3567 87H3568 87H3613 87H3615 87H3616 87H3620 87H3617 87H3621 87H3622 87H3625 87H3626 87H3627 87H3630 87H3631 87H3632 87H3663 87H3715 87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 4764 |
12R6540 12R6714 41U0441 41U0442 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 2962 |
00P5920 33F8985 40F9904 41L5233 41L4235 41L5795 52G3379 73H2508 93H3662 93H5261 93H5270 93H6068 93H6086 00P5920 41L5233 41L5235 41L5795 |
2-Port Multiprotocol PCI Adapter |
| 2738 |
28EF 52P8639 80P2994 80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001 07L9822 11H5967 11H5968 11H5969 11H6011 42R4761 6298964 93H6540 93H6541 94H6541 |
8-Port Asynchronous Adapter EIA-232 RS-422, PCI bus |
| 2944 |
43G0926 43G0938 93H6544 93H6545 93H8917 |
128-Port Asynchronous Controller, PCI bus |
| 5723 |
64P1243 80P4353 |
2-Port Asynchronous EIA-232 PCI Adapter |
| 线缆 | ||
| 6001 |
00G1277 42F6839 |
Power Control Cable (SPCN-2 meter) |
| 3925 |
00P2165 23R4632 40H6328 40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 |
Asynch Printer Terminal Cable 9-pin to 25-pin 4M |
| 4256 |
00P2969 10N7374 32N1311 44P1375 |
Extender Cable - USB Keyboards 2M |
| 3146 |
00P3237 09P2631 21P5454 39J2562 44V5140 |
RIO-2(Remote I O-2Cbl 1.2M |
| 2459 |
00P4023 11P1374 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 3168 |
00P5239 03N5866 |
RIO-2 (Remote I O-2 Cbl 2.5M |
| 2118 |
01K6497 07L9628 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 7802 |
05N5292 41V0143 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 2861 |
07L8817 87H3404 87H3405 87H3406 87H3439 87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 4242 |
07L9633 08L0491 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 2456 |
09P3044 11P1352 11P1373 12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2934 |
10N6535 12H1204 40H0744 40H2206 |
Asynchronous Terminal Printer Cable EIA-232 |
| 3125 |
10N7159 88G4772 88G4854 |
Serial to Serial Port Cable for Rack Rack |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 3161 |
12R8571 12R8572 12R8574 41U0274 41U0275 41U0277 60G7551 |
Switch Cable (SNI), 1.2 meter, copper |
| 3166 |
12R8573 16R0219 41U0276 |
Switch Cable, 3 meter Copper |
| 3167 |
12R8575 16R0575 41U0278 |
Switch Cbl.(SNI)10M Copper |
| 7801 |
16R0449 41V0479 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 6007 |
21F9358 22R5221 55F4533 |
Power Control Cable (SPCN 15 meter) |
| 6008 |
21F9469 22R5219 55F4532 74F0188 |
Power Control Cable (SPCN 6 meter) |
| 1836 |
21P8318 26R0847 26R0848 42R6245 44V5083 |
8 meter 4x Cable |
| 1835 |
26R0813 42R6244 44V5082 97P6113 |
3 meter 4x Cable |
| 2936 |
30F9453 42R5206 53F3205 53F3662 6223741 6323741 |
Asynchronous Cable EIA-232 V.24 |
| 2951 |
33F8985 93H2899 93H5263 |
Cable V.24 EIA-232 |
| 7924 |
39J2550 97P6472 |
RIO-2(Remote I O-2)Cbl, 0.6M |
| 2954 |
40F9904 93H2902 93H5267 |
Cable X.21 |
| 2425 |
40H2172 52G4233 |
2.5M 16-bit SCSI-2 System-to-System Cable |
| 3810 |
41V0540 41V0541 44P1878 44P1879 |
Power Cable Group, Right, Drawer Position #4609 |
| 3803 |
41V0550 41V0551 44P1888 44P1889 |
Pwr.Cbl.Grp, 19U(or 19U Lft) |
| 3813 |
41V0552 41V0553 44P1890 44P1891 |
Pwr.Cbl.Grp, 21U(or 19U Rt) |
| 3804 |
41V0554 41V0555 44P1898 44P1899 |
Power Cable Group, Left, Drawer Position #4623 |
| 3814 |
41V0556 41V0557 44P1900 44P1901 |
Power Cable Group, Right, Drawer Position #4623 |
| 3805 |
41V0558 41V0559 44P1902 44P1903 |
Pwr.Cbl.Grp, 27U(or 27U Lft) |
| 3815 |
41V0560 41V0561 44P1904 44P1905 |
Pwr.Cbl.Grp, 29U(or 27U Rt) |
| 3806 |
41V0562 41V0563 44P1906 44P1907 |
Power Cable Group, Left, Drawer Position #4631 |
| 3816 |
41V0564 41V0565 44P1908 44P1909 |
Power Cable Group, Right, Drawer Position #4631 |
| 3807 |
41V0576 41V0577 44P1910 44P1911 |
Power Cable Group, Left, Drawer Position #4613 |
| 3817 |
41V0578 41V0579 44P1912 44P1913 |
Pwr.Cbl.Grp, 15U(or 13U Rt) |
| 3653 |
42R6727 44V4148 |
SAS Cable (EE) Drawer to Drawer 3M |
| 3654 |
42R6728 44V4149 |
SAS Cable (EE) Drawer to Drawer 6M |
| 3661 |
42R6742 44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller Dual Path 3M |
| 3662 |
42R6743 44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller Dual Path 6M |
| 3663 |
42R6744 44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller Dual Path 15M |
| 3652 |
42R6762 44V4147 |
SAS Cable (EE Drawer to Drawer 1M |
| 3691 |
42R6788 44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller Dual Path 1.5 M |
| 3692 |
42R6789 44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 3 M |
| 3693 |
42R6790 44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 6 M |
| 3694 |
42R6791 44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 15 M |
| 3684 |
42R8118 44V4163 |
SAS Cable (AE Adapter to Enclosure single controller single path 3M |
| 3685 |
42R8120 44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller single path 6M |
| 8132 |
43F0936 43F0937 43G0936 |
128-Port Asynchronous Controller Cable 23cm (9-Inch |
| 8133 |
43G0935 51G8610 |
RJ-45 to DB-25 Converter Cable |
| 8131 |
43G0937 51G8608 |
128-Port Asynchronous Controller Cable 4.5 Meter |
| 2863 |
53G0638 87H3407 87H3408 87H3409 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 2952 |
71F0163 93H2900 93H5264 |
Cable V.35 |
| 2953 |
73H2508 93H2901 93H5265 |
Cable V.36 EIA-499 |
| 2864 |
87H3398 87H3399 87H3400 87H3442 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #25 |
|
| 6479 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 |
|
| 6487 | Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 | |
| 6488 |
Power Cord (9-foot To Wall OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #66 |
|
| 6651 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall OEM PDU (250V 15A Plug Type #76 |
|
| 6670 | Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking | |
| 6680 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 | Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) | |
| 7843 | Pwr.Cbl.Grp, 03U(or 01U Rt) | |
| 7844 | Pwr.Cbl.Grp, 01U(or 01U Lft) | |
| 7845 | Pwr.Cbl.Grp, 07U(or 05U Rt) | |
| 7846 | Pwr.Cbl.Grp, 05U(or 05U Lft) | |
| 7853 | Power Cables, 4x, 01U | |
| 7854 | Power Cables, 4x, 05U | |
| 7856 | Power Cables, 4x, 13U | |
| 7857 | Power Cables, 4x, 19U | |
| 7858 | Power Cables, 4x, 23U | |
| 7859 | Power Cables, 4x, 27U | |
| 7860 | Power Cables, 4x, 31U | |
| 7922 | Switch Cable (SNI), 0.5 meter, copper | |
| 机壳 | ||
| 6245 |
EMC Skirts Tailgate |
|
| 6251 | Slim Line Doors | |
| 6252 | Acoustic Doors | |
| 6851 | Slim Line Doors OEM, System and #5792 Racks | |
| 6852 | Acoustic Doors OEM, System and #5792 Racks | |
| 6855 | Weight Distribution Plate | |
| 6861 | Slim Line Doors for System Rack, Blue Stripe | |
| 7945 | Slim Line Door Kit, System Rack | |
| 7947 | Acoustic Door Kit, System Rack | |
| 电池 | ||
| 39J5555 | Cache battery pack for RAID card 571B, 1913, or 5737. | |
