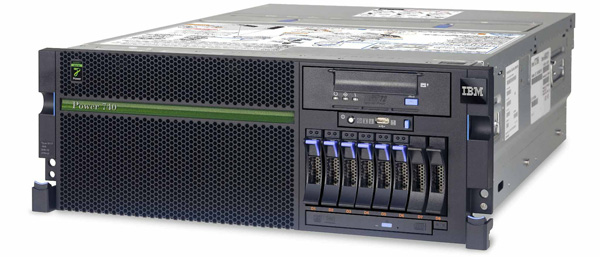

安装类型 |
机架式 |
|
高度 |
4U |
|
CPU:POWER7+ 处理器模块 - 每个系统 1 个或 2 个 |
六核或十二核 4.2 GHz、 |
|
八核或十六核 3.6 GHz、 |
|
八核或十六核 4.2 GHz |
|
CPU个数 |
1 或 2 |
|
二级 （L2） 缓存 |
每个内核 256 KB |
|
三级 （L3） 缓存 |
每个内核 10 MB |
|
内存 |
8 GB 至 512 GB 的 RDIMM DDR3 - 1 个处理器 |
|
8 GB 至 1024 GB 的 RDIMM DDR3 - 2 个处理器 |
|
提供 Active Memory 扩展 |
|
固态驱动器 （SSD） |
多达 8 个 SFF 驱动器 |
|
磁盘驱动器 |
多达 8 个 SFF SAS 驱动器 |
|
磁盘容量 |
高达 7.2 TB 内部存储 |
|
介质托架 |
用于 DVD-RAM 的 Slimline |
|
用于磁带驱动器或可移动磁盘的半高托架 |
|
I/O |
|
|
PCI 适配器插槽 |
5 个 PCI Express 8x 第 2 代 |
|
外加可选的 4 个 PCI Express 第 2 代小型 |
|
标准以太网 |
4 个以太网 10/100/1000 Mbps 端口 |
|
集成式 SAS 控制器 |
1 个用于 SAS DASD/SSD（带 RAID 10 和 DVD-RAM）的控制器 |
|
可选的 175 MB 受保护缓存，带 RAID 5、6 |
|
高性能 PCI 适配器（可选） |
4 端口 8 Gb 光纤通道 |
|
2 端口 16 Gb 光纤通道 |
|
2 端口 10 GbE RoCE |
|
10 Gb 以太网 |
|
10 Gb 以太网光纤通道 |
|
双端口四倍数据速率 IB |
|
6 Gbps SAS RAID 控制器 |
|
其他集成端口 |
3 个 USB 端口，2 个 HMC 端口，2 个系统端口，2 个 SPCN 端口 |
|
GX 插槽 （12X） |
2 个 GX++1 |
|
I/O 扩展（可选） |
多达 4 个 PCIe 12X I/O 抽屉 - 40 个 PCIe 插槽 |
|
多达 8 个 PCI-X DDR 12X I/O 抽屉 - 48 个 PCIx 插槽 |
|
多达 416 个 SFF 托架 |
|
受支持的其他 PCI 适配器包括 |
SAS、SCSI、WAN/Async、USB、Crypto、iSCSI |
|
PowerVM 技术 |
|
|
POWER Hypervisor™ |
虚拟机、LPAR、动态 LPAR、虚拟 LAN（内存到内存分区间通信） |
|
PowerVM （可选） |
服务器上多达 3 个分区；虚拟化磁盘和光驱 （VIOS）；集成虚拟化管理器 （IVM）；共享专用容量 |
|
PowerVM 标准版（可选） |
PowerVM ，外加微分区 （Micro-Partitioning®），每个处理器多达 20 个微分区；多个共享处理器池 |
|
PowerVM 企业版（可选） |
PowerVM 标准版，外加实时分区迁移 （LPM） 和 Active Memory 共享 （AMS） |
|
高可用性 |
IBM PowerHA® 系列 |
|
RAS 特性 |
采用 Chipkill 的 ECC 内存 |
|
处理器指令重试 |
|
备用处理器恢复 |
|
带故障监控功能的服务处理器 |
|
热插拔磁盘托架 |
|
热插拔与冗余电源和散热风扇 |
|
动态组件释放 |
|
操作系统2 |
AIX |
|
IBM i |
|
Linux for POWER® |
|
电源要求 |
200 V 至 240 V AC，单相 |
|
系统规格 |
机架抽屉：6.9 in. 高 × 17.3 in. 宽 × 24.0 in. 深 （173 mm × 440 mm × 610 mm）；重量：87 lb （39.5 kg）3 |
Processor
(#EPCP) -6-core 4.2 GHz POWER7+ Processor Module
(#EPCQ) -8-core 3.6 GHz POWER7+ Processor Module
(#EPCR) -8-core 4.2 GHz POWER7+ Processor Module
Memory
(#4794) -Power Active Memory Expansion Enablement
(#EM01) -Memory Riser Card
(#EM08) -8GB (2x4GB) Memory DIMMs, 1066 MHz, 2Gb DDR3 DRAM
(#EM4B) -16GB (2x8GB) Memory DIMMs, 1066 MHz, 4Gb DDR3 DRAM
(#EM4C) -32GB (2x16GB) Memory DIMMs, 1066 MHz, 4Gb DDR3 DRAM
(#EM4D) -64GB (2x32GB) Memory DIMMs, 1066 MHz, 4Gb DDR3 DRAM
Media Devices
(#5618) -Storage Backplane -- 6 SFF Bays/ SATA DVD/HH Tape
(#5619) -80/160GB DAT160 SAS Tape Drive
(#5638) -1.5TB/3.0TB LTO-5 SAS Tape Drive
(#5746) -Half High 800GB/1.6TB LTO4 SAS Tape Drive
(#5762) -SATA Slimline DVD-RAM Drive
(#5771) -SATA Slimline DVD-RAM Drive
(#EJ01) -Storage Backplane -- 8 SFF Bays/175MB RAID/Dual IOA
(#EU11) -2.5/6.25TB LTO-6 SAS Tape Drive, Half-high
(#EU16) -80/160GB DAT160 USB Tape Drive
Disk
(#1737) -856GB 10k RPM SAS SFF Disk Drive (IBM i)
(#1738) -856GB 10k RPM SAS SFF-2 Disk Drive (IBM i)
(#1751) -900GB 10K RPM SAS SFF Disk Drive (AIX/Linux)
(#1752) -900GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#1790) -600GB 10K RPM SAS SFF Disk Drive (AIX/Linux)
(#1817) -Quantity 150 of #1962
(#1818) -Quantity 150 of #1964
(#1844) -Quantity 150 of #1956
(#1866) -Quantity 150 of #1917
(#1868) -Quantity 150 of #1947
(#1869) -Quantity 150 of #1925
(#1879) -283GB 15K RPM SAS SFF Disk Drive (IBM i)
(#1880) -300GB 15K RPM SAS SFF Disk Drive (AIX/Linux)
(#1882) -146.8GB 10K RPM SAS SFF Disk Drive
(#1884) -69.7 GB 15K RPM SAS SFF Disk Drive
(#1885) -300GB 10K RPM SFF SAS Disk Drive
(#1886) -146GB 15K RPM SFF SAS Disk Drive (AIX/Linux)
(#1888) -139GB 15K RPM SFF SAS Disk Drive (IBM i)
(#1911) -283GB 10K RPM SFF SAS Disk Drive (IBM i)
(#1916) -571GB 10k RPM SAS SFF Disk Drive (IBM i)
(#1917) -146GB 15k RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#1925) -300GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#1927) -Quantity 150 of #1948
(#1929) -Quantity 150 of #1953
(#1947) -139GB 15k RPM SAS SFF-2 Disk Drive (IBM i)
(#1948) -283GB 15k RPM SAS SFF-2 Disk Drive (IBM i)
(#1953) -300GB 15k RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#1956) -283GB 10k RPM SAS SFF-2 Disk Drive (IBM i)
(#1962) -571GB 10k RPM SAS SFF-2 Disk Drive (IBM i)
(#1964) -600GB 10k RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#3646) -73GB 15K RPM SAS Disk Drive
(#3647) -146GB 15K RPM SAS Disk Drive (AIX/Linux)
(#3648) -300GB 15K RPM SAS Disk Drive (AIX/Linux)
(#3649) -450GB 15K RPM SAS Disk Drive (AIX/Linux)
(#3658) -428GB 15K RPM SAS Disk Drive (IBM i)
(#3676) -69.7GB 15k rpm SAS Disk Drive
(#3677) -139.5GB 15k rpm SAS Disk Drive (IBM i)
(#3678) -283.7GB 15k rpm SAS Disk Drive (IBM i)
(#7517) -Quantity 150 of #3676
(#7518) -Quantity 150 of #3677
(#7519) -Quantity 150 of #3678
(#7538) -Quantity 150 of #3658
(#7549) -Quantity 150 of #3647
(#7564) -Quantity 150 of #3648
(#7565) -Quantity 150 of #3649
(#ELS1) -#ES11 Load Source Specify (387GB SSD SFF-1)
(#ELS9) -#ES1A Load Source Specify (387GB SSD SFF-2)
(#EQ38) -Quantity 150 of #1738 (856GB SFF-2 disk)
(#EQ52) -Quantity 150 of #1752 (900GB SFF-2 disk)
(#EQD2) -Quantity 150 of #ESD2 (1.1TB 10k SFF-2)
(#EQD3) -Quantity 150 of #ESD3 (1.2TB 10k SFF-2)
(#EQDN) -Quantity 150 of #ESDN (571GB 15K RPM SAS SFF-2 for IBM i)
(#EQDP) -Quantity 150 of #ESDP (600GB 15K RPM SAS SFF-2 for AIX/ LINUX)
(#ELSJ) -#ESDJ Load Source Specify (571GB 15K RPM SFF-1 )
(#ELSN) -#ESDN Load Source Specify (571GB 15K RPM SFF-2 )
(#ESD0) -1.1TB 10K RPM SAS SFF-1 Disk Drive (IBM i)
(#ESD1) -1.2TB 10K RPM SAS SFF-1 Disk Drive (AIX/Linux)
(#ESD2) -1.1TB 10K RPM SAS SFF-2 Disk Drive (IBMi)
(#ESD3) -1.2TB 10K RPM SAS SFF-2 Disk Drive (AIX/Linux)
(#ESDJ) -571GB 15K RPM SAS SFF-1 Disk Drive - 528 Block (IBM i)
(#ESDK) -600GB 15K RPM SAS SFF-1 Disk Drive - 5xx Block (AIX/Linux)
(#ESDN) -571GB 15K RPM SAS SFF-2 Disk Drive - 528 Block
(#ESDP) -600GB 15K RPM SAS SFF-2 Disk Drive - 5xx Block
Adapters
(#1905) -4 GB Single-Port Fibre Channel PCI-X 2.0 DDR Adapter
(#1910) -4 GB Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter
(#1912) -PCI-X DDR Dual Channel Ultra320 SCSI Adapter
(#1954) -4-Port 10/100/1000 Base-TX PCI-X Adapter
(#1977) -2 Gigabit Fibre Channel PCI-X Adapter
(#1978) -IBM Gigabit Ethernet-SX PCI-X Adapter
(#1979) -IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter
(#1980) -POWER GXT135P Graphics Accelerator with Digital Support
(#1983) -IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter
(#1986) -1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter
(#1987) -1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter
(#2053) -PCIe LP RAID & SSD SAS Adapter 3Gb
(#2054) -PCIe RAID & SSD SAS Adapter 3Gb
(#2055) -PCIe RAID & SSD SAS Adapter 3Gb w/ Blind Swap Cassette
(#2728) -4 port USB PCIe Adapter
(#2738) -2-Port USB PCI Adapter
(#2849) -POWER GXT135P Graphics Accelerator with Digital Support
(#2893) -PCIe 2-Line WAN w/Modem
(#2894) -PCIe 2-Line WAN w/Modem CIM
(#2943) -8-Port Asynchronous Adapter EIA-232/RS-422, PCI bus
(#2947) -IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter
(#2962) -2-Port Multiprotocol PCI Adapter
(#4764) -PCI-X Cryptographic Coprocessor (FIPS 4)
(#4807) -PCIe Crypto Coprocessor No BSC 4765-001
(#4808) -PCIe Crypto Coprocessor Gen3 BSC 4765-001
(#5260) -PCIe2 LP 4-port 1GbE Adapter
(#5269) -PCIe LP POWER GXT145 Graphics Accelerator
(#5270) -PCIe LP 10Gb FCoE 2-port Adapter
(#5271) -PCIe LP 4-Port 10/100/1000 Base-TX Ethernet Adapter
(#5272) -PCIe LP 10GbE CX4 1-port Adapter
(#5273) -PCIe LP 8Gb 2-Port Fibre Channel Adapter
(#5274) -PCIe LP 2-Port 1GbE SX Adapter
(#5275) -PCIe LP 10GbE SR 1-port Adapter
(#5276) -PCIe LP 4Gb 2-Port Fibre Channel Adapter
(#5277) -PCIe LP 4-Port Async EIA-232 Adapter
(#5278) -PCIe LP 2-x4-port SAS Adapter 3Gb
(#5279) -PCIe2 LP 4-Port 10GbE&1GbE SFP+ Copper&RJ45
(#5280) -PCIe2 LP 4-Port 10GbE&1GbE SR&RJ45 Adapter
(#5281) -PCIe LP 2-Port 1GbE TX Adapter
(#5283) -PCIe2 LP 2-Port 4X IB QDR Adapter 40Gb
(#5284) -PCIe2 LP 2-port 10GbE SR Adapter
(#5285) -PCIe2 2-Port 4X IB QDR Adapter 40Gb
(#5286) -PCIe2 LP 2-Port 10GbE SFP+ Copper Adapter
(#5287) -PCIe2 2-port 10GbE SR Adapter
(#5288) -PCIe2 2-Port 10GbE SFP+Copper Adapter
(#5289) -2 Port Async EIA-232 PCIe Adapter
(#5290) -PCIe LP 2-Port Async EIA-232 Adapter
(#5700) -IBM Gigabit Ethernet-SX PCI-X Adapter
(#5701) -IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter
(#5706) -IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter
(#5708) -10Gb FCoE PCIe Dual Port Adapter
(#5713) -1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter
(#5714) -1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter
(#5716) -2 Gigabit Fibre Channel PCI-X Adapter
(#5717) -4-Port 10/100/1000 Base-TX PCI Express Adapter
(#5721) -10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter
(#5722) -10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter
(#5723) -2-Port Asynchronous EIA-232 PCI Adapter
(#5729) -PCIe2 8Gb 4-port Fibre Channel Adapter
(#5732) -10 Gigabit Ethernet-CX4 PCI Express Adapter
(#5735) -8 Gigabit PCI Express Dual Port Fibre Channel Adapter
(#5736) -PCI-X DDR Dual Channel Ultra320 SCSI Adapter
(#5740) -4-Port 10/100/1000 Base-TX PCI-X Adapter
(#5744) -PCIe2 4-Port 10GbE&1GbE SR&RJ45 Adapter
(#5745) -PCIe2 4-Port 10GbE&1GbE SFP+Copper&RJ45 Adapter
(#5748) -POWER GXT145 PCI Express Graphics Accelerator
(#5749) -4Gbps Fibre Channel (2-Port)
(#5758) -4 GB Single-Port Fibre Channel PCI-X 2.0 DDR Adapter
(#5759) -4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter
(#5767) -2-Port 10/100/1000 Base-TX Ethernet PCI Express Adapter
(#5768) -2-Port Gigabit Ethernet-SX PCI Express Adapter
(#5769) -10 Gigabit Ethernet-SR PCI Express Adapter
(#5772) -10 Gigabit Ethernet-LR PCI Express Adapter
(#5773) -4 Gigabit PCI Express Single Port Fibre Channel Adapter
(#5774) -4 Gigabit PCI Express Dual Port Fibre Channel Adapter
(#5785) -4 Port Async EIA-232 PCIe Adapter
(#5805) -PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter
(#5899) -PCIe2 4-port 1GbE Adapter
(#5900) -PCI-X DDR Dual -x4 SAS Adapter
(#5901) -PCIe Dual-x4 SAS Adapter
(#5902) -PCI-X DDR Dual - x4 3Gb SAS RAID Adapter
(#5908) -PCI-X DDR 1.5GB Cache SAS RAID Adapter (BSC)
(#5912) -PCI-X DDR Dual - x4 SAS Adapter
(#5913) -PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb
(#5922) -Non-paired SAS RAID indicator
(#5923) -Non-paired PCIe SAS RAID Indicator
(#5924) -Non-paired Indicator 5913 PCIe SAS RAID Adapter
(#5925) -Shared EXP30 Indicator
(#5927) -Remote EXP30 Indicator
(#6446) -Dual-port 12X Channel Interface Attach - Short Run
(#6457) -Dual-port 12X Channel Interface Attach-Long Run
(#6805) -PCI 2-Line WAN IOA No IOP
(#6808) -PCI 4-Modem WAN IOA No IOP
(#6809) -PCI 4-Modm WAN IOA NoIOP CIM
(#6833) -PCI 2-Line WAN w/Modem NoIOP
(#6834) -PCI 2-Ln WAN w/Mod NoIOP CIM
(#EC27) -PCIe2 LP 2-Port 10GbE RoCE SFP+ Adapter
(#EC28) -PCIe2 2-Port 10GbE RoCE SFP+ Adapter
(#EC29) -PCIe2 LP 2-Port 10GbE RoCE SR Adapter
(#EC2M) -PCIe3 LP 2-port 10GbE NIC&RoCE SR Adapter
(#EC2N) -PCIe3 2-port 10GbE NIC&RoCE SR Adapter
(#EC37) -PCIe3 LP 2-port 10GbE NIC&RoCE SFP+ Copper Adapter
(#EC38) -PCIe3 2-port 10GbE NIC&RoCE SFP+ Copper Adapter
(#EC41) -PCIe2 LP 3D Graphics Adapter x1
(#EC42) -PCIe2 3D Graphics Adapter x1
(#EC2G) -PCIe2 LP 2-port 10GbE SFN6122F Adapter
(#EC2H) -PCIe2 LP 2-port 10GbE SFN5162F Adapter
(#EC2J) -PCIe2 2-port 10GbE SFN6122F Adapter
(#EC2K) -PCIe2 2-port 10GbE SFN5162F Adapter
(#EC30) -PCIe2 2-Port 10GbE RoCE SR Adapter
(#EJ02) -Split Drive Bay Capability for #5618
(#EJ03) -GX++ 2-port PCIe2 x8 Adapter
(#EJ04) -GX++ Dual-port 12x Channel Attach
(#EJ10) -PCIe3 SAS Tape/DVD Adapter Quad-port 6Gb x8
(#EJ11) -PCIe3 LP SAS Tape/DVD Adapter Quad-port 6Gb x8
(#EJ27) -PCIe Crypto Coprocessor No BSC 4765-001
(#EJ28) -PCIe Crypto Coprocessor Gen3 BSC 4765-001
(#EJ0J) -PCIe3 RAID SAS Adapter Quad-port 6Gb x8
(#EJ0L) -PCIe3 12GB Cache RAID SAS Adapter Quad-port 6Gb x8
(#EJ0M) - PCIe3 LP RAID SAS ADAPTER Quad-Port 6Gb x8
(#EJS1) -Non-paired Indicator ESA3 PCIe SAS RAID Adapter
(#EN13) -PCIe 1-port Bisync Adapter
(#EN14) -PCIe 1-port Bisync Adapter CIM
(#EN27) -2 Port Async EIA-232 PCIe Adapter
(#EN28) -PCIe LP 2-Port Async EIA-232 Adapter
(#EN29) -2 Port Async EIA-232 PCIe Adapter
(#EN0A) -PCIe2 16Gb 2-port Fibre Channel Adapter
(#EN0B) -PCIe2 LP 16Gb 2-port Fibre Channel Adapter
(#EN0H) -PCIe2 4-port (10Gb FCoE & 1GbE) SR&RJ45
(#EN0J) -PCIe2 LP 4-port (10Gb FCoE & 1GbE) SR&RJ45
(#EN0K) -PCIe2 4-port (10Gb FCoE & 1GbE) SFP+Copper&RJ45
(#EN0L) -PCIe2 LP 4-port(10Gb FCoE & 1GbE) SFP+Copper&RJ45
(#EN0S) -PCIe2 4-Port (10Gb+1GbE) SR+RJ45 Adapter
(#EN0T) -PCIe2 LP 4-Port (10Gb+1GbE) SR+RJ45 Adapter
(#EN0U) -PCIe2 4-port (10Gb+1GbE) Copper SFP+RJ45 Adapter
(#EN0V) -PCIe2 LP 4-port (10Gb+1GbE) Copper SFP+RJ45 Adapter
(#EN0W) -PCIe2 2-port 10/1GbE BaseT RJ45 Adapter
(#EN0X) -PCIe2 LP 2-port 10/1GbE BaseT RJ45 Adapter
(#EN0Y) -PCIe2 LP 8Gb 4-port Fibre Channel Adapter
(#ESA3) -PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb CR
(#ESA1) -PCIe2 RAID SAS Adapter Dual-port 6Gb
(#ESA2) -PCIe2 LP RAID SAS Adapter Dual-port 6Gb
Power
(#5532) -System AC Power Supply, 1925W
(#5160) -Power Dist Unit 1 Phase NEMA
(#5161) -Power Dist Unit 1 Phase IEC
(#5162) -Power Dist Unit 2 of 3 Phase
(#5163) -Power Dist Unit - 3 Phase
(#6260) -Redundant or Base Power Supply for 7031 Model D24/T24 I/ O Enclosure
(#6261) -Power Supply for 7031 Model D24/T24 I/O Enclosure
(#7109) -Intelligent PDU+, 1 EIA Unit, Universal UTG0247 Connector
(#7188) -Power Distribution Unit
