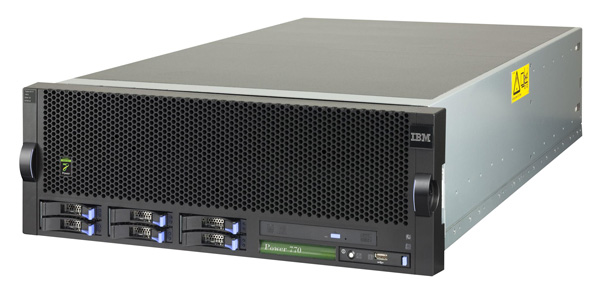

IBM P770 (9117-MMD)
| 安装类型 | 机架式 |
| 高度 | 4U-16U |
| CPU信息 | 16-core at 3.80 GHz or 12-core at 4.22 GHz,up to 64C |
| CPU类型 | Power 7+ |
| CPU个数 | 4，CPU插槽在CPU笼子里，单柜1个CPU笼子 |
| CPU激活 | 需要对应VPD |
| 硬盘信息 | Six hot-swappable, 2.5-inch, small form-factor, SAS disk, or solid-state disk (SSD) bays per enclosure |
| 最大硬盘数量 | 单个柜子最大 6 个2.5寸热插拔硬盘。 |
| 内存 | DDR3 |
| 内存容量范围 | 最大支持4TB DDR3内存 |
| 内存插槽数量 | 内存插槽在CPU笼子上，单柜16 个内存插槽 |
| 内存是否需要激活 | 需要激活 |
| 电源描述 | 冗余双电源 |
| 单机电源数量 | 2 |
| 介质托架 | |
| 适配器插槽 | Eight I/O expansion slots per enclosure |
| (maximum 32 per system). Six Gen2 PCIe | |
| 8x slots plus two GX++ slots per enclosure | |
| 端口 | |
| IO适配器 | One serial port per each Integrated Multifunction |
| Card, Two USB ports, Two HMC ports per enclosure | |
| (maximum four per system). | |
| IO扩展 | |
| 发布日期 | 2012/10/03 |
| 下架日期 | 2015/11/30 |
| 服务截止期 | |
| 操作系统 | AIX |
| 产品尺寸 | Depth:863 mm (34.0 in.), |
| Width 483 mm (19.0 in.), | |
| Height:174 mm (6.9 in.) | |
| 产品重量 | 70.3 kg (155 lb) |
| FC号 | PN号 | 描述 |
| CPU | ||
|
54A8 00E7182 |
4 core 4.424 GHz processor card FRU kit (9117-MMD or 9179-MHD) | |
|
54B4 00E7184 |
8 core 3.724 GHz processor card FRU kit (9117-MMD or 9179-MHD) | |
| EPM0 |
AAF4 00E7180 |
3 core 4.228 GHz processor card FRU kit (9117-MMD or 9179-MHD) 16 DDR3 Memory Slots |
| EPM1 |
AAF6 00E7181 |
4 core 3.808 GHz processor card FRU kit (9117-MMD or 9179-MHD) POWER7+ 16 DDR3 Memory Slots |
| 系统板 | ||
|
2A14 74Y2876 |
Thermal and power management device (TPMD) card | |
|
2B59 74Y3050 |
I/O backplane | |
|
2BBB 00E1662 |
FSP card (drawers 1 and 2) (9117-MMD or 9179-MHD) | |
|
2BBC 74Y2861 |
FSP Passthru card (drawers 3 and 4) | |
|
2BBD 74Y3890 00E6658 |
Mid-plane | |
|
521C 00E1757 |
VPD card (9117-MMD or 9179-MHD) | |
| EB85 |
System CEC Enclosure with IBM BEZEL I/O Backplane and System Midplane |
|
| EB86 |
System CEC Enclosure with OEM BEZEL I/O Backplane and System Midplane |
|
| 内存 | ||
|
31CB 45D8414 |
8 GB 1066 MHz DIMM | |
|
31CC 45D8418 |
16 GB 1066 MHz DIMM | |
|
31CD 41T8254 |
16 GB 1066 MHz DIMM | |
|
31D3 00V5416 |
64 GB 1066 MHz DIMM | |
|
31D4 00V5404 |
8 GB 1066 MHz DIMM | |
|
31D6 41T8258 |
32 GB 1066 MHz DIMM | |
| 5602 |
31D6 45D7248 45D8424 |
0/128GB DDR3 Memory (4x32GB) DIMMS - 1066MHz - POWER7 CoD Memory |
| 硬盘 | ||
|
19A1 74Y6495 |
283 GB 15K small form factor SAS disk drive | |
|
19A3 74Y4897 |
571 GB 10K small form factor SAS disk drive (IBM® i) | |
|
19A4 74Y9271 |
857 GB 10K small form factor SAS disk drive (IBM i) | |
|
58B3 74Y5293 74Y5294 |
177 GB small form factor solid-state SAS drive for 9117-MMC 9117-MMD 9179-MHC or 9179-MHD. |
|
|
58B8 74Y9524 |
387 GB small form factor solid-state SAS drive | |
| 74Y4900 | 600 GB 10K small form factor SAS disk drive | |
| 74Y6496 | 300 GB 15K small form factor SAS disk drive | |
| 74Y9272 | 900 GB 10K small form factor SAS disk drive | |
| 1881 |
42R5660 42R8389 42R8391 42V7387 44V7388 |
73.4GB 10K RPM SAS SFF Disk Drive |
| 1882 |
42R5661 42R8390 42R8392 46V6830 46V6837 |
146.8GB 10K RPM SAS SFF Disk Drive |
| 1883 |
44V4426 44V4427 44V4428 44V6842 |
73.4 GB 15K RPM SAS SFF Disk Drive |
| 1884 |
198B 44V4429 44V4430 |
69.7 GB 15K RPM SAS SFF Disk Drive |
| 1885 |
42R6833 44V6831 44V6833 44V6838 |
300GB 10K RPM SFF SAS Disk Drive |
| 1886 |
44V6843 44V6845 44V6850 |
146GB 15K RPM SFF SAS Disk Drive |
| 1888 |
198C 44V6844 00E6166 |
139 GB 15K small form factor SAS disk drive IBM® i |
| 1890/1909 |
58B0 44V6817 44V6821 44V8674 |
69GB SFF SAS Solid State Drive |
| 1911 |
198D 74Y4896 |
283GB 10K RPM SFF SAS Disk Drive (IBM i) |
| 硬盘背板 | ||
|
2BBE 74Y9514 |
Small form factor SAS disk drive backplane with embedded SAS adapters | |
| RAID卡 | ||
|
2BC2 00E5681 |
175 MB cache RAID and dual storage IOA enablement card | |
| 2055 |
43K6366 43K6367 74Y6409 |
PCIe RAID & SSD SAS Adapter 3Gb w/ Blind Swap Cassette |
| 5662 |
2BC2 42R8705 46K6472 74Y6441 |
175MB Cache RAID - Dual IOA Enablement Card |
| 5805 | PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter | |
| 5900 |
42R7988 42R7989 44V3296 44V4266 44V4404 |
PCI-X DDR Dual - x4 3Gb SAS Adapter |
| 5902 |
572B 44V4203 44V5194 97P4847 |
PCI-X DDR Dual-x4 3Gb SAS RAID Adapter Cache battery pack 39J5555. |
| 5903 |
574E 44V4198 44V7436 44V7597 74Y6124 |
PCIe 380MB Cache Dual - x4 3Gb SAS RAID Adapter |
| 5908 |
42R3965 42T3969 44V4577 44V4579 44V5193 44V8622 46K4734 46K6114 74Y5665 |
PCI-X DDR 1.5GB Cache SAS RAID Adapter (BSC) |
| 5912 |
572A 44V4413 4V4414 44V5195 44V8579 |
PCI-X DDR Dual - x4 SAS Adapter |
| 5913 |
11P1346 11P3896 |
PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb |
| 5922 |
11P1347 11P3897 |
Non-paired SAS RAID indicator |
| 5923 | Non-paired PCIe SAS RAID Indicator | |
| 5924 | Non-paired 6Gb/s PCIe SAS RAID Indicator | |
| SCSI卡 | ||
| 1912 |
39J2421 39J4998 42R4862 42R4362 52P8558 |
PCI-X DDR Dual Channel Ultra320 LVD SCSI Adapter |
| 5736 |
39J1643 39J2862 39J3536 39J4996 39J5022 42R4860 42R8736 44V5591 42R4362 52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 5741 |
506E 12R7477 12R9042 45D3355 |
IBM Single Bus Ultra 320 SCSI Repeater Card |
| 5742 |
506D 12R7475 12R9040 |
IBM Dual Bus Ultra 320 SCSI Repeater Card |
| 5901 |
57B3 44V4852 44V8580 45K4732 |
PCIe Dual-x4 SAS Adapter |
| 网卡 | ||
| 5287 | 74Y2095 | PCIe2 2-port 10 GbE fiber card |
| 5288 | 74Y2094 | (#5288) -PCIe2 2-Port 10GbE SFP+Copper Adapter |
| 5700 |
00P3055 00P4499 03N6981 05N6768 09P5386 10N8586 11P3847 12R9314 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5701 |
00G2380 00P3056 00P4501 00P6130 03N6070 03N6524 09P5389 21P4745 53P5450 80P4024 80P7033 |
IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5721 |
573A 03N4590 05N6768 10N8264 10N9774 10N9775 11P3847 12R9314 15R75836 74Y2621 80P6636 80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5722 |
576A 03H4588 10N8263 10N9776 10N9777 12R6249 12R9315 80P6634 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5732 |
45D4771 46K6696 46K7899 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5740 | 03N5444 | 4-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter |
| 5767 |
10N6845 10N7405 46K6601 |
2-Port 10/100/1000 Base-TX Ethernet PCI Express Adapter |
| 5768 |
05H6768 10N6846 11P3847 12R9314 15R7536 46K6602 |
2-Port Gigabit Ethernet-SX PCI Express Adapter |
| 5769 |
05N6768 10N9505 11P3847 12R9314 46K7897 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5772 |
576E 05N6768 10N9034 11P3847 12R9314 |
10 Gigabit Ethernet-CX4 PCIe (x8)Adapter |
| 5899 | (#5899) -PCIe2 4-port 1GbE Adapter | |
| 适配卡 | ||
|
2B56 00E0778 |
Twinaxial - 2 x 1 GbE and 2 x 10 GbE integrated multifunction card | |
|
2B57 00E0784 |
Optical - 2 x 1 GbE and 2 x 10 GbE integrated multifunction card | |
|
2BC3 74Y0532 |
I/O hub 12X adapter card | |
| 1769 |
Dual 10 Gb Optical + Dual 1 Gb Ethernet Integrated Multifunction card with SR Optical. |
|
| 1808 |
2BC3 45D7063 74Y5398 |
GX++ 12X DDR Adapter Dual-port |
| 1914 |
2B94 00E1457 |
GX++ 2-port PCIe2 x8 adapter |
| 2728 |
57D1 46K6692 46K7494 |
4 port USB PCIe Adapter |
| 2738 |
28EF 52P8639 80P2994 80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001 07L9822 11H5967 11H5968 11H5969 11H6011 42R4761 6298964 93H6540 93H6541 94H6541 |
8-Port Asynchronous Adapter EIA-232/RS-422 PCI bus |
| 2947 |
07L8796 53G0638 84H3413 87H3311 87H3410 87H3413 87H3420 87H3427 87H3439 87H3440 87H3442 87H3450 87H3500 87H3565 87H3566 87H3567 87H3568 87H3613 87H3615 87H3616 87H3620 87H3617 87H3621 87H3622 87H3625 87H3626 87H3627 87H3630 87H3631 87H3632 87H3663 87H3715 87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 2962 |
00P5920 33F8985 40F9904 41L5233 41L4235 41L5795 52G3379 73H2508 93H3662 93H5261 93H5270 93H6068 93H6086 00P5920 41L5233 41L5235 41L5795 |
2-Port Multiprotocol PCI Adapter |
| 4764 |
12R6540 12R6714 41U0441 41U0442 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 4808 |
45D5803 45D6680 45D7948 |
PCIe Crypto Coprocessor Gen3 BSC 4765-001 |
| 4809 |
45D5803 45D6680 45D7948 46K5440 |
PCIe Crypto Coprocessor Gen4 BSC 4765-001 |
| 5285 | (#5285) -PCIe2 2-Port 4X IB QDR Adapter 40Gb | |
| 5289 | 57D4 | (#5289) -2 Port Async EIA-232 PCIe Adapter |
| 5646 | 42R4190 |
Blind Swap Type III Cassette-PCIe Short Slot |
| 5665 |
2BBC 44V8599 46K6476 |
FSP/Clock Pass Through Card FSP Passthru card (drawers 3 and 4) |
| 5744 | (#5744) -PCIe2 4-Port 10GbE&1GbE SR&RJ45 Adapter | |
| 5745 | (#5745) -PCIe2 4-Port 10GbE&1GbE SFP+Copper&RJ45 Adapter | |
| 5785 |
57D2 42R5143 46K6734 46K6735 6298965 |
4 Port Async EIA-232 PCIe Adapter |
| 6805 |
21P5267 39J2298 53P1677 |
PCI 2-Line WAN IOA No IOP |
| EC28 | (#EC28) -PCIe2 2-Port 10GbE RoCE SFP+ Adapter | |
| EC30 | (#EC30) -PCIe2 2-Port 10GbE RoCE SR Adapter | |
| ESA1 | (#ESA1) -PCIe2 RAID SAS Adapter Dual-port 6Gb | |
| 显卡 | ||
| 2849 |
00P5756 00P5758 03N5853 09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 5748 | 10N7756 | POWER GXT145 PCI Express Graphics Accelerator |
| 光纤卡 | ||
| 5708 |
2B3B 05N6768 11P3847 12R9314 46K8088 |
10Gb FCoE PCIe Dual Port Adapter |
| 5713 |
03N6056 26K6490 30R5219 32R1926 46K7342 49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5714 |
03N6058 30R5519 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| 5716 |
280B 03N6441 03N7069 05N6768 10N8622 11P3847 12R9314 15R7536 80P4543 80P4544 |
2 Gigabit Fibre Channel PCI-X Adapter |
| 5729 | (#5729) -PCIe2 8Gb 4-port Fibre Channel Adapter | |
| 5735 |
577D 05N6768 10N9824 11P3847 12R9314 46C7006 |
8 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 5749 |
2B30 05N6768 11P3847 12R9314 32N1294 |
4Gbps Fibre Channel (2-Port) |
| 5758 |
280D 03N5012 03N5014 46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5759 |
03N5027 03N5029 03N6768 10N8620 10N3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5773 |
05N6768 10N7249 44P3847 12R9314 15R7536 |
4 Gigabit PCI Express Single Port Fibre Channel Adapter |
| 5774 |
05N6768 10N7255 11P3847 12R9314 15R7536 |
4 Gigabit PCI Express Dual Port Fibre Channel Adapter |
| 电源 | ||
| 5532 |
2BED 00J0439 |
Power supply 1925 W |
| 稳压模块 | ||
|
2BC8 74Y9345 |
Processor card regulator | |
|
2BF8 74Y9343 |
||
|
2BF9 74Y9347 |
Processor card regulator | |
| 风扇 | ||
| 74Y9391 | Fan assembly (single fan) | |
| 导轨 | ||
| 46K6362 | Rack rail kit | |
| 线缆 | ||
| 74Y7525 |
SMP cable 1 (outer left - outer left span two drawers) |
|
| 74Y7526 |
SMP cable 2 (outer right - outer right span two drawers) |
|
| 74Y7527 |
SMP cable 4 (inner left - inner left span two drawers) |
|
| 74Y7528 |
SMP cable 7 (inner right - inner right span two drawers) |
|
| 74Y7529 |
SMP cable 3 (inner left - outer left span three drawers) |
|
| 74Y7530 |
SMP cable 6 (inner right - outer right span three drawers) |
|
| 74Y7531 |
SMP cable 5 (outer left - outer left span four drawers) |
|
| 74Y7532 | FSP two drawer cable | |
| 74Y7533 | FSP three drawer cable | |
| 74Y7534 | FSP four drawer cable | |
| 1815 | 44V7563 | SAS Cable for triple split DASD backplane |
| 1819 | 44V7564 | SAS Cable Assembly for SAS Port |
| 其它 | ||
|
2B01 00E1635 |
Control panel (9117-MMD or 9179-MHD) |
