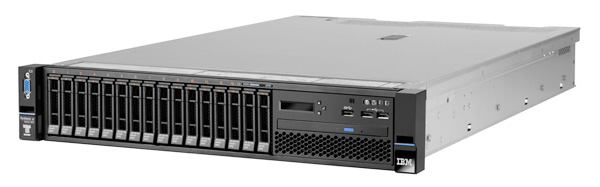

外形 |
2U机架 |
|
处理器 |
最多2个22 核英特尔®至强® E5-2600 v4 处理器系列，每个处理器最高55MB 缓存 |
|
内存 |
容量高达1.5TB，24个内存插槽，搭配单条最高2400 MHz 的64GB TruDDR4 内存（RDIMM/LRDIMM） |
|
磁盘托架 |
最多24个前置和4 个后置2.5 英寸HDD/SSD；或者最多12 个3.5 英寸和2 个后置3.5 英寸HDD + 2 个2.5 英寸HDD/SSD；或者最多8 个3.5 英寸HDD 和2 个后置3.5 英寸或2.5英寸HDD/SSD；2.5 英寸配置最多配8 个2.5 英寸NVMe PCIe SSD |
|
最大内部存储容量 |
最高120TB |
|
RAID支持 |
12Gbps 专用插槽供第一个RAID 使用；最多支持四个RAID 适配器 |
|
电源 |
标配1 颗热插拔电源，可选1+1 冗余550W AC、750W AC、900W AC、1500W AC、900WDC 80 PLUS®铂金认证，或750W、1300W AC 80 PLUS 钛金认证电源 |
|
可热插拔组件 |
电源、风扇模块和HDD/SSD |
|
网络接口 |
标配4 个1GbE 和1 个IMM 接口；可选10/40GbE ML2 或PCIe 适配器；内置可信平台模块（Trusted Platform Module） |
|
扩展插槽 |
1-8 个PCIe 3.0 插槽（最多支持4 个GPU，1 个ML2）和1 个专用RAID 插槽 |
|
USB端口/VGA端口 |
最多3 个USB 2.0 前置、2 个USB 3.0 后置、1 个USB 2.0 内置（用于系统管理程序）/1 个前置可选VGA 端口和1 个标配后置VGA 端口 |
|
能效 |
ENERGY STAR®（因机型而异）；工作温度最高为40℃； 2 个风扇区，最多配6个风扇 |
|
系统管理 |
Lenovo XClarity Administrator（具有移动选项）； Lenovo XClarity Pro 软件包； Lenovo XClarity Energy Manager；IMM2.1 |
|
支持的操作系统 |
Microsoft Windows Server、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、VMware vSphere——（可选USB 密钥或SD 卡适配器） |
MT 5462
CPU
Description/Part number/Feature codes
Intel Xeon Processor E5-2603 v3 6C 1.6GHz 15MB 1600MHz 85W 00FK640 A5EB / A5EG
Intel Xeon Processor E5-2608L v3 6C 2.0GHz 15MB 1866MHz 52W 00MU296 ASKU / ASL0
Intel Xeon Processor E5-2609 v3 6C 1.9GHz 15MB 1600MHz 85W 00FK641 A5EC / A5EH
Intel Xeon Processor E5-2618L v3 8C 2.3GHz 20MB 1866MHz 75W 00MU297 ASKV / ASL1
Intel Xeon Processor E5-2620 v3 6C 2.4GHz 15MB 1866MHz 85W 00FK642 A5ED / A5EJ
Intel Xeon Processor E5-2623 v3 4C 3.0GHz 10MB 1866MHz 105W 00KG846 ASDH / ASDU
Intel Xeon Processor E5-2628L v3 10C 2.0GHz 25MB 1866MHz 75W 00MU298 ASKW / ASL2
Intel Xeon Processor E5-2630 v3 8C 2.4GHz 20MB 1866MHz 85W 00FK643 A5EE / A5EK
Intel Xeon Processor E5-2630L v3 8C 1.8GHz 20MB 1866MHz 55W 00FK655 A5EF / A5ES
Intel Xeon Processor E5-2637 v3 4C 3.5GHz 15MB 2133MHz 135W 00KG847 ASDJ / ASDV
Intel Xeon Processor E5-2640 v3 8C 2.6GHz 20MB 1866MHz 90W 00FK644 A5GT / A5EL
Intel Xeon Processor E5-2643 v3 6C 3.4GHz 20MB 2133MHz 135W 00KG848 ASDK / ASDW
Intel Xeon Processor E5-2648L v3 12C 1.8GHz 30MB 2133MHz 75W 00MU299 ASKX / ASL3
Intel Xeon Processor E5-2650 v3 10C 2.3GHz 25MB 2133MHz 105W 00FK645 A5GU / A5EM
Intel Xeon Processor E5-2650L v3 12C 1.8GHz 30MB 2133MHz 65W 00KG845 ASDG / ASDT
Intel Xeon Processor E5-2658 v3 12C 2.2GHz 30MB 2133MHz 105W 00MU300 ASKY / ASL4
Intel Xeon Processor E5-2660 v3 10C 2.6GHz 25MB 2133MHz 105W 00KG839 ASDA / ASDM
Intel Xeon Processor E5-2667 v3 8C 3.2GHz 20MB 2133MHz 135W 00KG849 ASDL / ASDX
Intel Xeon Processor E5-2670 v3 12C 2.3GHz 30MB 2133MHz 120W 00FK647 A5GV / A5EN
Intel Xeon Processor E5-2680 v3 12C 2.5GHz 30MB 2133MHz 120W 00FK648 A5GW / A5EP
Intel Xeon Processor E5-2683 v3 14C 2.0GHz 35MB 2133MHz 120W 00KG840 ASDB / ASDN
Intel Xeon Processor E5-2685 v3 12C 2.6GHz 30MB 2133MHz 120W 00KG841 ASDC / ASDP
Intel Xeon Processor E5-2690 v3 12C 2.6GHz 30MB 2133MHz 135W 00FK649 A5GX / A5EQ
Intel Xeon Processor E5-2695 v3 14C 2.3GHz 35MB 2133MHz 120W 00KG842 ASDD / ASDQ
Intel Xeon Processor E5-2697 v3 14C 2.6GHz 35MB 2133MHz 145W 00KG843 ASDE / ASDR
Intel Xeon Processor E5-2698 v3 16C 2.3GHz 40MB 2133MHz 135W 00KG844 ASDF / ASDS
Intel Xeon Processor E5-2699 v3 18C 2.3GHz 45MB 2133MHz 145W 00KF372 ARYJ / ARYT
内存
Description/Part number/Feature code/Maximum supported
RDIMMs - 2133 MHz
4GB TruDDR4 Memory (1Rx8, 1.2V) PC4-17000 CL15 2133MHz LP RDIMM 46W0784 A5B6 12 / 24
8GB TruDDR4 Memory (1Rx4, 1.2V) PC4-17000 CL15 2133MHz LP RDIMM 46W0788 A5B5 12 / 24
8GB TruDDR4 Memory (2Rx8, 1.2V) PC4-17000 CL15 2133MHz LP RDIMM 46W0792 A5B8 12 / 24
16GB TruDDR4 Memory (2Rx4, 1.2V) PC4-17000 CL15 2133MHz LP RDIMM 46W0796 A5B7 12 / 24
32GB TruDDR4 Memory (2Rx4, 1.2V) PC4-17000 CL15 2133MHz LP RDIMM 95Y4808 A5UJ 12 / 24
LRDIMMs - 2133 MHz
32GB TruDDR4 Memory (4Rx4, 1.2V) PC4-17000 CL15 2133MHz LP LRDIMM 46W0800 A5B9 12 / 24
64GB TruDDR4 Memory (4Rx4,1.2V) PC4-17000 CL15 2133MHz LP LRDIMM 95Y4812 A5UK 12 / 24
MT 8871
CPU
Intel Xeon Processor E5-2600 v4 product family
Intel Xeon Processor E5-2603 v4 6C 1.7GHz 15MB Cache 1866MHz 85W 00YJ203 ATEU / ATFK
Intel Xeon Processor E5-2608L v4 8C 1.6GHz 20MB Cache 1866MHz 50W 00YJ219 ATFA / ATG1
Intel Xeon Processor E5-2609 v4 8C 1.7GHz 20MB Cache 1866MHz 85W 00YJ196 ATEM / ATFC
Intel Xeon Processor E5-2618L v4 10C 2.2GHz 25MB Cache 2133MHz 75W 00YJ218 ATF9 / ATG0
Intel Xeon Processor E5-2620 v4 8C 2.1GHz 20MB Cache 2133MHz 85W 00YJ195 ATEL / ATFB
Intel Xeon Processor E5-2623 v4 4C 2.6GHz 10MB Cache 2133MHz 85W 00YJ217 ATF8 / ATFZ
Intel Xeon Processor E5-2628L v4 12C 1.9GHz 30MB Cache 2133MHz 75W 00YJ215 ATF6 / ATFX
Intel Xeon Processor E5-2630 v4 10C 2.2GHz 25MB Cache 2133MHz 85W 00YJ198 ATEP / ATFE
Intel Xeon Processor E5-2630L v4 10C 1.8GHz 25MB Cache 2133MHz 55W 00YJ209 ATF0 / ATFR
Intel Xeon Processor E5-2637 v4 4C 3.5GHz 15MB Cache 2400MHz 135W 00YJ208 ATEZ / ATFQ
Intel Xeon Processor E5-2640 v4 10C 2.4GHz 25MB Cache 2133MHz 90W 00YJ199 ATEQ / ATFF
Intel Xeon Processor E5-2643 v4 6C 3.4GHz 20MB Cache 2400MHz 135W 00YJ207 ATEY / ATFP
Intel Xeon Processor E5-2648L v4 14C 1.8GHz 35MB Cache 2400MHz 75W 00YJ213 ATF4 / ATFV
Intel Xeon Processor E5-2650 v4 12C 2.2GHz 30MB Cache 2400MHz 105W 00YJ197 ATEN / ATFD
Intel Xeon Processor E5-2650L v4 14C 1.7GHz 35MB Cache 2400MHz 65W 00YJ210 ATF1 / ATFS
Intel Xeon Processor E5-2658 v4 14C 2.3GHz 35MB Cache 2400MHz 105W 00YJ214 ATF5 / ATFW
Intel Xeon Processor E5-2660 v4 14C 2.0GHz 35MB Cache 2400MHz 105W 00YJ205 ATEW / ATFM
Intel Xeon Processor E5-2667 v4 8C 3.2GHz 25MB Cache 2400MHz 135W 00YJ201 ATES / ATFH
Intel Xeon Processor E5-2680 v4 14C 2.4GHz 35MB Cache 2400MHz 120W 00YJ202 ATET / ATFJ
Intel Xeon Processor E5-2683 v4 16C 2.1GHz 40MB Cache 2400MHz 120W 00YJ216 ATF7 / ATFY
Intel Xeon Processor E5-2690 v4 14C 2.6GHz 35MB Cache 2400MHz 135W 00YJ200 ATER / ATFG
Intel Xeon Processor E5-2695 v4 18C 2.1GHz 45MB Cache 2400MHz 120W 00YJ206 ATEX / ATFN
Intel Xeon Processor E5-2697 v4 18C 2.3GHz 45MB Cache 2400MHz 145W 00YJ204 ATEV / ATFL
Intel Xeon Processor E5-2697A v4 16C 2.6GHz 40MB Cache 2400MHz 145W 01GT188 AUDY / AUE0
Intel Xeon Processor E5-2698 v4 20C 2.2GHz 50MB Cache 2400MHz 135W 00YJ212 ATF3 / ATFU
Intel Xeon Processor E5-2699 v4 22C 2.2GHz 55MB Cache 2400MHz 145W 00YJ211 ATF2 / ATFT
Intel Xeon Processor E5-2699R v4 22C 2.2GHz 55MB Cache 2400MHz 145W 01GV376 AVHA / AVHJ
Intel Xeon Processor E5-2699A v4 22C 2.4GHz 55MB Cache 2400MHz 145W 01GV377 AVHB / AVHK
内存
RDIMMs - 2400 MHz
8GB TruDDR4 Memory (1Rx4, 1.2V) PC4-19200 CL17 2400MHz LP RDIMM 46W0821 ATC8 12 / 24
8GB TruDDR4 Memory (2Rx8, 1.2V) PC4-19200 CL17 2400MHz LP RDIMM 46W0825 ATC9 12 / 24
16GB TruDDR4 Memory (2Rx4, 1.2V) PC4-19200 CL17 2400MHz LP RDIMM 46W0829 ATCA 12 / 24
16GB TruDDR4 Memory (2Rx8, 1.2V) PC4-19200 CL17 2400MHz LP RDIMM 01KN301 AVP0 12 / 24
32GB TruDDR4 Memory (2Rx4, 1.2V) PC4-19200 CL17 2400MHz LP RDIMM 46W0833 ATCB 12 / 24
LRDIMMs - 2400 MHz
64GB TruDDR4 Memory (4Rx4, 1.2V) PC4-19200 PC4 2400MHz LP LRDIMM 46W0841 ATGG 12 / 24
硬盘
Description/Part number/Feature code/Maximum supported
Base drive kits (factory installed)
x3650 M5 8x 2.5" HS HDD Assembly Kit (Single RAID) None A5G6 1
x3650 M5 16x 2.5" HS HDD Assembly Kit (Single RAID) None A5GF 1
x3650 M5 16x 2.5" HS HDD Assembly Kit (Dual RAID) None A5GG 1
x3650 M5 24x 2.5" HS HDD Assembly Kit (Single RAID) None A5G7 1
x3650 M5 24x 2.5" HS HDD Assembly Kit (Dual RAID) None A5TN 1
x3650 M5 24x 2.5" HS HDD Assembly Kit (Triple RAID) None A5G8 1
x3650 M5 8x 2.5" SS HDD Assembly Kit (non-RAID) None A5G9 1
x3650 M5 8x 2.5" SS HDD ServeRAID Assembly Kit 00MU147 A5GB 1
x3650 M5 8x 3.5" HS HDD Assembly Kit None A5GD 1
x3650 M5 12x 3.5" HS HDD Assembly Kit None A5GE 1
x3650 M5 8x 3.5" SS HDD Assembly Kit (non-RAID) None A5GA 1
x3650 M5 8x 3.5" SS HDD ServeRAID Assembly Kit 00MU148 A5GC 1
System x3650 M5 Rear 2x 2.5" HDD Kit (Independent RAID) None A5GH 2
System x3650 M5 Rear 2x 3.5" HDD Kit (Cascaded) None A5GL 1
System x3650 M5 Rear 2x 3.5" HDD Kit (Independent RAID) None A5GK 1
System x3650 M5 Plus 4x 2.5" NVMe PCIe SSD Upgrade Kit None ASRL 1
Upgrade drive kits (require the base drive kit)
System x3650 M5 Plus 8x 2.5" HS HDD Assembly Kit with Expander 00FK661 AS44 2
System x3650 M5 Plus 8x 2.5" HS HDD Assembly Kit 00FK676 AS45 2
x3650 M5 8x 2.5" SS HDD ServeRAID Assembly Kit 00MU147 A5GB 1
x3650 M5 8x 3.5" SS HDD ServeRAID Assembly Kit 00MU148 A5GC 1
System x3650 M5 Rear 2x 2.5" HDD Kit 00FK658 AS42 2
System x3650 M5 Rear 2x 3.5" HDD Kit 00FK659 AS43 1
System x3650 M5 Plus 4x 2.5" NVMe PCIe SSD Upgrade Kit 00FK677 None 1
阵列卡
Description/Part number/Feature code/Maximum supported/I/O slots supported
12 Gb SAS/SATA controllers
ServeRAID M5210 SAS/SATA Controller 46C9110 A3YZ 3 9, 4, 1, 6
ServeRAID M1215 SAS/SATA Controller 46C9114 A45W 3 9, 4, 1, 6, 3, 8
N2215 SAS/SATA HBA 47C8675 A3YY 3 9, 4, 1, 6, 2, 7, 5
Hardware upgrades for the M5210
ServeRAID M5200 Series 1GB Cache/RAID 5 Upgrade 47C8656 A3Z0 3 -
ServeRAID M5200 Series 1GB Flash/RAID 5 Upgrade 47C8660 A3Z1 3 -
ServeRAID M5200 Series 2GB Flash/RAID 5 Upgrade 47C8664 A3Z2 3 -
ServeRAID M5200 Series 4GB Flash/RAID 5 Upgrade 47C8668 A3Z3 3 -
Features on Demand upgrades for the M5210
ServeRAID M5200 Series Zero Cache/RAID 5 Upgrade 47C8708 A3Z6 1 -
ServeRAID M5200 Series RAID 6 Upgrade 47C8706 A3Z5 1 -
ServeRAID M5200 Series Performance Accelerator 47C8710 A3Z7 1 -
ServeRAID M5200 Series SSD Caching Enabler 47C8712 A3Z8 1 -
Features on Demand upgrades for the M1215
ServeRAID M1200 Zero Cache/RAID 5 Upgrade for FOD 00AE930 A5H5 1 -
PCIe extenders (for NVMe PCIe SSDs)
System x NVMe PCIe SSD Extender Adapter 00ML997 AS95 2 1, 2, 6, 7
硬盘
Description/Part number/Feature code/Maximum supported
2.5-inch hot-swap HDDs - 12 Gbps SAS
300GB 10K 12Gbps SAS 2.5" G3HS HDD 00WG685 AT89 28
300GB 15K 12Gbps SAS 2.5" G3HS HDD 00WG660 AT84 28
300GB 15K 12Gbps SAS 2.5" G3HS 512e HDD 00NA221 ASBB 28
600GB 10K 12Gbps SAS 2.5" G3HS HDD 00WG690 AT8A 28
600GB 10K 12Gbps SAS 2.5" G3HS 512e HDD 00NA241 ASBF 28
600GB 15K 12Gbps SAS 2.5" G3HS HDD 00WG665 AT85 28
600GB 15K 12Gbps SAS 2.5" G3HS 512e HDD 00NA231 ASBD 28
900GB 10K 12Gbps SAS 2.5" G3HS HDD 00WG695 AT8B 28
900GB 10K 12Gbps SAS 2.5" G3HS 512e HDD 00NA251 ASBH 28
1.2TB 10K 12Gbps SAS 2.5" G3HS HDD 00WG700 AT8C 28
1.2TB 10K 12Gbps SAS 2.5" G3HS 512e HDD 00NA261 ASBK 28
1.8TB 10K 12Gbps SAS 2.5" G3HS 512e HDD 00NA271 ASBM 28
2.5-inch hot-swap HDDs - 12 Gbps NL SAS
1TB 7.2K 12Gbps NL SAS 2.5'' G3HS HDD 00NA491 AT7Z 28
2TB 7.2K 12Gbps NL SAS 2.5'' G3HS HDD 00NA496 AT80 28
2.5-inch hot-swap HDDs - 6 Gbps NL SAS
500GB 7.2K 6Gbps NL SAS 2.5" G3HS HDD 00AJ121 A4TT 28
2.5-inch hot-swap HDDs - 6 Gbps NL SATA
500GB 7.2K 6Gbps NL SATA 2.5" G3HS HDD 00AJ136 A4TW 28
1TB 7.2K 6Gbps NL SATA 2.5" G3HS HDD 00AJ141 A4TX 28
2TB 7.2K 6Gbps NL SATA 2.5'' G3HS 512e HDD 00NA526 AT81 28
2.5-inch hot-swap SEDs - 12 Gbps SAS
300GB 10K 12Gbps SAS 2.5" G3HS SED 00WG705 AT8D 28
600GB 10K 12Gbps SAS 2.5" G3HS SED 00WG710 AT8E 28
900GB 10K 12Gbps SAS 2.5" G3HS SED 00WG715 AT8F 28
1.2TB 10K 12Gbps SAS 2.5" G3HS SED 00WG720 AT8G 28
1.2TB 10K 12Gbps SAS 2.5" G3HS 512e SED 00NA301 ASBT 28
2.5-inch hot-swap SSDs - Enterprise 12 Gbps SAS
200GB 12G SAS 2.5" MLC G3HS Enterprise SSD 00FN379 AS7C 28
400GB 12G SAS 2.5" MLC G3HS Enterprise SSD 00FN389 AS7E 28
800GB 12G SAS 2.5" MLC G3HS Enterprise SSD 00FN399 AS7G 28
1.6TB 12G SAS 2.5" MLC G3HS Enterprise SSD 00FN409 AS7J 28
2.5-inch hot-swap SSDs - Enterprise Mainstream 12 Gbps SAS
400GB Enterprise Mainstream 12Gb SAS G3HS 2.5" SSD 00YC460 AT9M 28
800GB Enterprise Mainstream 12Gb SAS G3HS 2.5" SSD 00YC465 AT9N 28
1.6TB Enterprise Mainstream 12Gb SAS G3HS 2.5" SSD 00YC470 AT9P 28
2.5-inch hot-swap SSDs - Enterprise 6 Gbps SAS
200GB SAS 2.5" MLC G3HS Enterprise SSD 00AJ207 A4UA 28
400GB SAS 2.5" MLC G3HS Enterprise SSD 00AJ212 A4UB 28
500GB 7.2K 6Gbps NL SATA 2.5" G3SS HDD 00NA597 ASLC 16
1TB 7.2K 6Gbps NL SATA 2.5" G3SS HDD 00NA622 ASLD 16
2TB 7.2K 6Gbps NL SATA 2.5'' G3SS 512e HDD 00NA536 AT82 16
3.5-inch hot-swap HDDs - 12 Gbps SAS
300GB 15K 12Gbps SAS 3.5" G2HS HDD 00WG675 AT87 14
600GB 15K 12Gbps SAS 3.5" G2HS HDD 00WG680 AT88 14
3.5-inch hot-swap HDDs - 12 Gbps NL SAS
1TB 7.2K 12Gbps NL SAS 3.5" G2HS HDD 00YL702 ATYM 14
2TB 7.2K 12Gbps NL SAS 3.5" G2HS HDD 00YK000 ATYL 14
2TB 7.2K 12Gbps NL SAS 3.5" G2HS 512e HDD 00FN188 A5VP 14
4TB 7.2K 12Gbps NL SAS 3.5" G2HS HDD 00YK005 ATYN 14
4TB 7.2K 12Gbps NL SAS 3.5" G2HS 512e HDD 00FN208 A5VQ 14
6TB 7.2K 12Gbps NL SAS 3.5" G2HS 512e HDD 00FN228 A5VR 14
8TB 7.2K 12Gbps NL SAS 3.5" G2HS 512e HDD 00WH121 ATRS 14
10TB 7.2K 12Gbps NL SAS 3.5" G2HS 512e HDD 00YK336 AU7R 14
3.5-inch hot-swap HDDs - 6 Gbps NL SAS
1TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD 90Y8567 A26M 14
2TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD 90Y8572 A2U0 14
3.5-inch hot-swap HDDs - 6 Gbps NL SATA
500GB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 81Y9786 A22Y 14
1TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 81Y9790 A22P 14
2TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 81Y9794 A22T 14
2TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 00FN113 A5VD 14
4TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 00FN143 A5VH 14
6TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 00FN173 A5VM 14
8TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 00WH126 ATRT 14
10TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 00YK341 AU7S 14
3.5-inch hot-swap SSDs - Enterprise Performance 6 Gbps SATA
Intel S3710 400GB Enterprise Performance SATA HS 3.5" SSD 00YC340 AT9G 14
Intel S3710 800GB Enterprise Performance SATA HS 3.5" SSD 00YC345 AT9H 14
3.5-inch hot-swap SSDs - Enterprise Entry 6 Gbps SATA
Intel S3510 120GB Enterprise Entry SATA HS 3.5" SSD 00WG770 AT97 14
Intel S3510 240GB Enterprise Entry SATA HS 3.5" SSD 00WG775 AT98 14
Intel S3510 480GB Enterprise Entry SATA HS 3.5" SSD 00WG780 AT99 14
960GB Enterprise Entry SATA HS 3.5" SSD 00YC420 AT8Y 14
3.5-inch hot-swap SSDs - Enterprise Value 6 Gbps SATA
120GB SATA 3.5" MLC HS Enterprise Value SSD 00AJ435 A57F 14480GB SATA 3.5" MLC HS Enterprise Value SSD
00AJ445 A57H 14
500GB 7.2K 6Gbps NL SATA 3.5" G2SS HDD 81Y9802 A22U 8
1TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD 81Y9806 A22X 8
2TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD 81Y9810 A22W 8
2TB 7.2K 6Gbps NL SATA 3.5" G2SS 512e HDD 00FN118 A5VE 8
4TB 7.2K 6Gbps NL SATA 3.5" G2SS 512e HDD 00FN148 A5VJ 8
光驱
Description/Part number/Feature code/Maximum supported
Ultraslim 9.5mm SATA DVD-ROM 00AM066 A5KG 1
PCIe riser cards
Riser 1 options (PCIe x8 riser supplies slots 1, 2 and 3; PCIe x16 riser supplies slots 1 and 3)
System x3650 M5 PCIe Riser 1 (1 x16 FH/FL + 1 x8 ML2 Slots) 00KA504 A5FR 1
System x3650 M5 PCIe Riser 1 (2 x8 FH/FL + 1 x8 ML2 Slots) 00KA519 A5FQ 1
System x3650 M5 PCIe Riser (1 x16 FH/FL + 1 x8 FH/HL Slots) 00KA489 A5FN 1
System x3650 M5 PCIe Riser (2 x8 FH/FL + 1 x8 FH/HL Slots) 00KA498 A5FP 1
Riser 2 options (PCIe x8 riser supplies slots 6, 7 and 8; PCIe x16 riser supplies slots 6 and 8)
System x3650 M5 PCIe Riser (1 x16 FH/FL + 1 x8 FH/HL Slots) 00KA489 A5R5 1
System x3650 M5 PCIe Riser (2 x8 FH/FL + 1 x8 FH/HL Slots) 00KA498 A5R6 1
Serial port bracket
COM Port Bracket 00KA161 A5AN 1
Thermal kit
System x3650 M5 PCIe Thermal Solution Kit 00MU908 ASQD 1
网卡
Description/Part number/Feature code/Maximum supported/I/O slots supported
100 Gb Ethernet - PCIe
Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adpt. 00MM960 ATRP 1 / 3^ 1, 5, 6†
40 Gb Ethernet - ML2
Mellanox ConnectX-3 Pro ML2 2x40GbE/FDR VPI Adapter 00FP650 A5RK 1 3
40 Gb Ethernet - PCIe
Mellanox ConnectX-4 Lx 1x40GbE QSFP+ Adapter 00MM950 ATRN 3 / 7 1, 2, 4, 5, 6, 7, 8
Mellanox ConnectX-3 2x40GbE / FDR IB VPI Adapter 00D9550 A3PN 3 / 6 1, 2, 4, 5, 6, 7
25 Gb Ethernet - ML2
Mellanox ConnectX-4 Lx ML2 1x25GbE SFP28 Adapter 00MN990 ATZR 1^^ 3
10 Gb Ethernet - ML2
Broadcom NetXtreme II ML2 Dual Port 10GbaseT 00D2026 A40S 1 3
Broadcom NetXtreme II ML2 Dual Port 10GbE SFP+ 00D2028 A40T 1 3
Emulex VFA5 ML2 Dual Port 10GbE SFP+ Adapter 00D1996 A40Q 1 3
Emulex VFA5.2 ML2 Dual Port 10GbE SFP+ Adapter 00AG560 AT7U 1 3Ultraslim 9.5mm SATA Multi Burner 00AM067
A5KH 1Emulex VFA5 ML2 FCoE/iSCSI License (FoD)
(Upgrade for 00D1996 and 00AG560 - one per adapter)
00D8544 A4NZ 1 3
Intel X540 ML2 Dual Port 10GbaseT Adapter 00D1994 A40P 1 3
Intel X710-DA2 ML2 2x10GbE SFP+ Adapter 00JY940 ATRH 1 3
25 Gb Ethernet - PCIe
Mellanox ConnectX-4 Lx 2x25GbE SFP28 Adapter 01GR250 AUAJ 3 / 7^^ 1, 2, 4, 5, 6, 7, 8
10 Gb Ethernet - PCIe
Broadcom NetXtreme 2x10GbE BaseT Adapter 44T1370 A5GZ 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Broadcom NetXtreme Dual Port 10GbE SFP+ Adapter 94Y5180 A4Z6 3 / 6 1, 2, 4, 5, 6, 7
Emulex VFA5 2x10 GbE SFP+ PCIe Adapter 00JY820 A5UT 3 / 6 1, 2, 4, 5, 6, 7
Emulex VFA5.2 2x10 GbE SFP+ PCIe Adapter 00AG570 AT7S 3 / 6 1, 2, 4, 5, 6, 7
Emulex VFA5 FCoE/iSCSI SW for PCIe Adapter (FoD)
(Upgrade for 00JY820 and 00AG570 - one per adapter)
00JY824 A5UV 3 / 6 -
Emulex VFA5 2x10 GbE SFP+ Adapter and FCoE/iSCSI SW 00JY830 A5UU 3 / 6 1, 2, 4, 5, 6, 7
Emulex VFA5.2 2x10 GbE SFP+ Adapter & FCoE/iSCSI SW 00AG580 AT7T 3 / 6 1, 2, 4, 5, 6, 7
Intel X520 Dual Port 10GbE SFP+ Adapter 49Y7960 A2EC 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Intel X540-T2 Dual Port 10GBaseT Adapter 49Y7970 A2ED 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Intel X550-T2 Dual Port 10GBase-T Adapter 00MM860 ATPX 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Intel X710-DA2 2x10GbE SFP+ Adapter 01DA900 AU2Y 3 / 6 1, 2, 4, 5, 6, 7
Mellanox ConnectX-3 2x10GbE Adapter 00D9690 A3PM 3 / 6 1, 2, 4, 5, 6, 7
QLogic 8200 Dual Port 10GbE SFP+ VFA 90Y4600 A3MR 3 / 6 1, 2, 4, 5, 6, 7
QLogic 8200 VFA FCoE/iSCSI License (FoD)
(Upgrade for 90Y4600 - one per adapter)
00Y5624 A3MT 3 / 6 -
1 Gb Ethernet - ML2
Intel I350-T4 ML2 Quad Port GbE Adapter 00D1998 A40R 1 3
1 Gb Ethernet - PCIe
Broadcom NetXtreme 2xGbE BaseT Adapter 42C1780 2995 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Broadcom NetXtreme I Dual Port GbE Adapter 90Y9370 A2V4 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Broadcom NetXtreme I Quad Port GbE Adapter 90Y9352 A2V3 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Intel I350-F1 1xGbE Fiber Adapter 00AG500 A56K 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Intel I350-T2 2xGbE BaseT Adapter 00AG510 A56L 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Intel I350-T4 4xGbE BaseT Adapter 00AG520 A56M 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
40 GbE QSFP+ transceivers and DAC cables (for 40 GbE QSFP+ adapters)
Lenovo 40GBASE-SR4 QSFP+ Transceiver 49Y7884 A1DR Port qty -
Lenovo 1m Passive QSFP+ DAC Cable 49Y7890 A1DP Port qty -
Lenovo 3m Passive QSFP+ DAC Cable 49Y7891 A1DQ Port qty -
10 GbE SFP+ transceivers and DAC cables (for 10 GbE SFP+ adapters)
Lenovo 10GBASE-SR SFP+ Transceiver 46C3447 5053 Port qty -
Brocade 10Gb SFP+ SR Optical Transceiver 49Y4216 0069 Port qty -
QLogic 10Gb SFP+ SR Optical Transceiver 49Y4218 0064 Port qty -
Lenovo 0.5m Passive SFP+ DAC Cable 00D6288 A3RG Port qty -
Lenovo 1m Passive SFP+ DAC Cable 90Y9427 A1PH Port qty -
Lenovo 1.5m Passive SFP+ DAC Cable 00AY764 A51N Port qty -
Lenovo 2m Passive SFP+ DAC Cable 00AY765 A51P Port qty -
Lenovo 3m Passive SFP+ DAC Cable 90Y9430 A1PJ Port qty -
Lenovo 5m Passive SFP+ DAC Cable 90Y9433 A1PK Port qty -
Lenovo 7m Passive SFP+ DAC Cable 00D6151 A3RH Port qty -
SAS RAID adapters and HBAs
Description/Part number/Feature code/Maximum supported/I/O slots supported
12 Gbps SAS RAID adapters - PCIe
ServeRAID M5225-2GB SAS/SATA Controller 00AE938 A5ND 2 / 3 1, 2, 6
Feature on Demand (FoD) upgrades for the M5225 (one per server)**
ServeRAID M5200 Series RAID 6 Upgrade 47C8706 A3Z5 1** -
ServeRAID M5200 Series Performance Accelerator 47C8710 A3Z7 1** -
ServeRAID M5200 Series SSD Caching Enabler 47C8712 A3Z8 1** -
12 Gbps SAS HBAs - PCIe
N2225 SAS/SATA HBA 00AE912 A5M0 2 / 5 1, 2, 6, 7, 8
N2226 SAS/SATA HBA 00AE916 A5M1 2 / 5 1, 2, 6, 7, 8
光纤卡
16 Gb Fibre Channel - PCIe
Emulex 16Gb Gen6 FC Single-port HBA 01CV830 ATZU 3 / 7 2, 3, 4, 5, 6, 7, 8
Emulex 16Gb Gen6 FC Dual-port HBA 01CV840 ATZV 3 / 7 2, 3, 4, 5, 6, 7, 8
Emulex 16Gb FC Single-port HBA 81Y1655 A2W5 3 / 7 2, 3, 4, 5, 6, 7, 8
Emulex 16Gb FC Dual-port HBA 81Y1662 A2W6 3 / 7 2, 3, 4, 5, 6, 7, 8
QLogic 16Gb Enhanced Gen5 FC Single-port HBA 01CV750 ATZB 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
QLogic 16Gb Enhanced Gen5 FC Dual-port HBA 01CV760 ATZC 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
QLogic 16Gb FC Single-port HBA 00Y3337 A3KW 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
QLogic 16Gb FC Dual-port HBA 00Y3341 A3KX 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
8 Gb Fibre Channel - PCIe
Emulex 8Gb FC Single-port HBA 42D0485 3580 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Emulex 8Gb FC Dual-port HBA 42D0494 3581 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
QLogic 8Gb FC Single-port HBA 42D0501 3578 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
QLogic 8Gb FC Dual-port HBA 42D0510 3579 4 / 8 1, 2, 3, 4, 5, 6, 7, 8
Flash storage adapters
Description/Part number/Feature code/Maximum supported/I/O slots supported
Enterprise Performance
Intel P3700 1.6TB NVMe Enterprise Performance Flash Adapter (LP) 00YA812 AT7L 2 / 5 1, 4, 5, 6, 7
Intel P3700 2.0TB NVMe Enterprise Performance Flash Adapter (LP) 00YA815 AT7M 2 / 5 1, 4, 5, 6, 7
Enterprise Mainstream
io3 1.25TB Enterprise Mainstream Flash Adapter (LP) 00YA800 AT7N 2 / 5 1, 4, 5, 6, 7
io3 1.6TB Enterprise Mainstream Flash Adapter (LP) 00YA803 AT7P 2 / 5 1, 4, 5, 6, 7
io3 3.2TB Enterprise Mainstream Flash Adapter (LP) 00YA806 AT7Q 2 / 5 1, 4, 5, 6, 7
io3 6.4TB Enterprise Mainstream Flash Adapter (FH) 00YA809 AT7R 3 / 6 1, 2, 3, 6, 7, 8
Enterprise
1000GB Enterprise io3 Flash Adapter (LP) 00AE995 ARYP 2 / 5 1, 4, 5, 6, 7
1300GB Enterprise io3 Flash Adapter (LP) 00AE998 ARYQ 2 / 5 1, 4, 5, 6, 7
2600GB Enterprise io3 Flash Adapter (LP) 00JY001 ARYR 2 / 5 1, 4, 5, 6, 7
GPU adapters
Description/Part number/Feature code/Maximum supported/I/O slots supported
Full-high PCIe x16 adapters (x16-wired)
Intel Xeon Phi 7120A None* ASQJ 1 / 2 1, 6
NVIDIA Quadro K6000 None* A3YV 1 / 2 1, 6
NVidia Quadro M5000 GPU, PCIe (active) 00YL378 ATZF 1 / 2 1, 6
NVidia Quadro M6000 24GB GPU, PCIe (active) 90Y2495 AU3W 1 / 2 1, 6
NVIDIA Tesla K40c 00YL376 A5FG 1 / 2 1, 6
NVidia Tesla M60 GPU, PCIe (active) 00YL377 ASQL 1 / 2 1, 6
Full-high PCIe x16 adapters (x8-wired)
NVIDIA Quadro K420 00YL370 ASPN 2 / 4 1, 2, 6, 7
NVIDIA Quadro K620 00YL371 ASPP 2 / 4 1, 2, 6, 7
NVIDIA Quadro K2200 00YL372 ASQM 2 / 4 1, 2, 6, 7
电源
Power supplies
Description/Part number/Feature code/Maximum supported
System x 550W High Efficiency Platinum AC Power Supply 00FK930 A5ET 2
System x 750W High Efficiency Platinum AC Power Supply 00FK932 A5EU 2
System x 750W High Efficiency Titanium AC Power Supply (200-240V) 00FK934 A5EV 2
System x 900W High Efficiency Platinum AC Power Supply 00FK936 A5EW 2
System x 900W High Efficiency -48 V DC Power Supply 00MU910 ASQF 2
System x 1300W High Efficiency Titanium AC Power Supply (200-240V) 00MU911 ASQG 2
System x 1500W High Efficiency Platinum AC Power Supply (200-240V) 00MU909 ASQE 2
