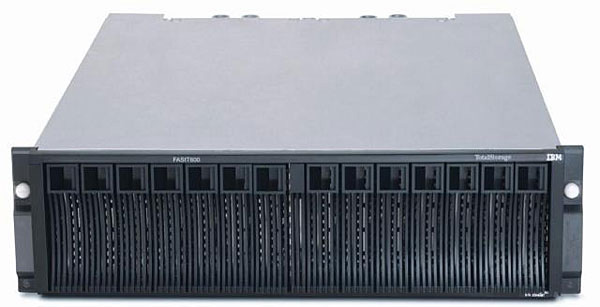

IBM DS4300
| 整机信息 | |
| 名称 | IBM TotalStorage DS4300 Storage Subsystem (FAStT600) |
| 型号 | 1722-60U/1722-6LU/1722-60K/1722-60J/1722-6LJ/1722-60L |
| 机架空间 | 3U |
| 控制器信息 | 双 2 Gbps 的 RAID 控制器。 |
| 整机控制器缓存 | 512 MB |
| 控制器是否有电池 | 是 |
| 接口 | 标配 2 或者 4 个光纤通道（FC）交换和 FC 仲裁环路。 |
| 硬盘插槽数量 | 14 |
| 支持的硬盘 | 36.4GB 73.4GB 146.8GB 293.6GB 10000 rpm，18.2GB 36.4GB 73.4GB 146.8GB 15000 rpm 。 |
| 支持Raid类型 | 0, 1, 3, 5, 10 |
| 发布日期 | 2003/1/8 |
| 下架日期 | 2006/1/8 |
| 存储分区 | 双控制器机型：标配为一个主机组，可升级到 4，8 或者 16 个存储分区。 |
| 可用性 | 容灾、RAID、冗余电源/风扇、热插拔驱动器、 单/双控制器、并行为吗更新功能、双路径驱动器。 |
| SAN支持 | 直接、FC-AL、交换结构。 |
| 其他特性 | |
| 产品尺寸 | 132.3 毫米（高）x 482 毫米（宽）x 597 毫米（深）（5.2 寸× 24 寸× 19 寸）。 |
| 产品重量 | 30 千克 (66 磅)。 |
| 管理软件 | IBM TotalStorage DS4000 存储管理器 v8.3 8.4 和 8.41，配置增强选项的v9.41。 |
| 存储扩展柜 | EXP100，EXP700，EXP710 |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| 硬盘 | ||
| 5205 | 06P5761 | 2Gb FC, 36.4GB/10K Drive (Withdrawn) |
| 5206 |
06P5762 06P5764 |
73.4GB 10K, 2Gb FC Drive (Withdrawn) |
| 5207 |
24P3721 32P0765 32P0766 |
146.8GB 10K, 2Gb FC Drive (Withdrawn) |
| 5208 | 73P8005 | 2Gb FC, 300GB/10K Drive (Withdrawn) |
| 5211 | 06P5771 | 2Gb FC, 18.2GB/15K Drive (Withdrawn) |
| 5212 | 06P5772 | 36.4GB 15K, 2Gb FC Drive (Withdrawn) |
| 5213 | 32P0768 | 2Gb FC, 73.4GB/15K Drive (Withdrawn) |
| 5214 |
73P8022 73P8023 |
2Gb FC, 146.8GB/15K Drive (Withdrawn) |
| 适配卡 | ||
| 2104 |
24P0960 24P0961 24P8174 |
DS4300/4000 Host Bus Adpater(withdrawn) |
| 电源 | ||
| 19K1289 | Power Supply assembly (400 W) | |
| 电池 | ||
| 24P8062 | Battery, Cache | |
| 风扇 | ||
| 19K1293 | fan assembly | |
| 导轨 | ||
| 37L0067 | Rail Kit Left/Right | |
| 许可协议 | ||
| 2000 | 24P8215 | DS4300 Turbo Feature-IPO(Withdrawn) |
| 7351 | 24P8217 | DS4300 FlashCopy(Withdrawn) |
| 7354 | 24P8219 | DS4300 Flash/VoCopy Activation(Withdrawn) |
| 7356 | DS4300 FC/SATA Enclosure Intermix Activation（Withdrawn） | |
| 7359 | 24P8220 | DS4300 Flash/VoCopy Activation w/SM V8.4(Withdrawn) |
| 7360 | DS4300 Two EXP810/7xx Attach(Withdrawn) | |
| 7361 | DS4300 1st EXP810/7xx Attach(Withdrawn) | |
| 7368 | DS4300 Three EXP810/7xx Attach(Withdrawn) | |
| 7600 | 24P8067 | DS4300 Intel Pack(Withdrawn) |
| 7701 | 24P8068 | DS4300/4700/4800 Linux/Intel Host Kit (Withdrawn) |
| 7702 | 24P8069 | DS4300/4700/4800 Novell Network Host Kit (Withdrawn) |
| 7703 | 24P8070 | DS4300/4800 VMware Host Kit (Withdrawn)/DS4700 Vmware ESX Host Kit |
| 7711 | 24P8072 | DS4300/4800 AIX Host Kit (Withdrawn)/DS4700 AIX/VIOS Host Kit |
| 7712 | 24P8073 | DS4300/4800 Sun Host Kit (Withdrawn)/DS4700 SUN Host Kit |
| 7713 | 24P8074 | DS4300/4800 HP-UX Host Kit (Withdrawn) |
| 7714 | 25R0091 | DS4300/4800 Linux on Power Host Kit (Withdrawn)/DS4700 Linux on Power Host Kit |
| 8804 | DS4300 4-Strorage Partitions Activation(Withdrawn) | |
| 8808 | DS4300 8-Strorage Partitions Activation(Withdrawn) | |
| 8816 | DS4300 16-Strorage Partitions Activation(Withdrawn) | |
| 控制器 | ||
|
24P8059 24P8206 |
FC RAID Controller (base model, 256 MB cache, no battery) | |
| 24P8225 | FC RAID Controller (Turbo, 1 GB cache, no battery) | |
| 24P8961 | FC RAID Controller (model 6LU/6LX single-controller, 256 MB cache, no battery) | |
| 光纤模块 | ||
| 2210 |
19K1271 19K1280 |
2Gb Fibre Channel Short Wave GBIC (LC) (Withdrawn) |
| 2220 |
19K1272 19K1281 |
Long Wave SFP GBIC (LC) (Withdrawn) |
| 线缆 | ||
| 17P7508 | 1.2-m FC copper cable (IBM TotalStorage SAN Integration Server only) | |
| 19K1265 | Cable, 1M Optical | |
| 19K1266 | Cable, 5M Optical | |
| 19K1267 | Cable, 25M Optical | |
| 19K1268 | Cable, FRU SC-LC Adapter | |
| 36L8886 | Line Cord Jumper, High Voltage | |
| 6952300 | 9’ Line Cord | |
| 5601 |
19K1247 19K1265 39M5696 39M5699 |
1M LC-LC Fibre Optic Cable (Withdrawn) |
| 5605 |
19K1248 19K1266 39M5697 39M5700 |
5M LC-LC Fibre Optic Cable (Withdrawn) |
| 5625 |
19K1249 19K1267 39M5698 39M5701 |
25M LC-LC Fibre Optic Cable (Withdrawn) |
| 5702 | 19K1250 | LC-SC Fibre Adapter (SC=male,LC=male/female) |
| 其它 | ||
| 09N7288 | Miscellaneous Hardware Kit | |
| 17P6918 | Wrap plug (loopback adapter) | |
| 19K1291 | DASD Bezel Filler assembly | |
| 19K1297 | Switch, harness | |
| 24P8058 | Bezel assembly (FAStT600) | |
| 24P8129 | Midplane/frame (base model) | |
| 25R0089 | Battery bracket | |
| 25R0107 | Midplane/frame (model 6LU/6LX single-controller) | |
| 25R0199 | Bezel assembly (DS4300) |
