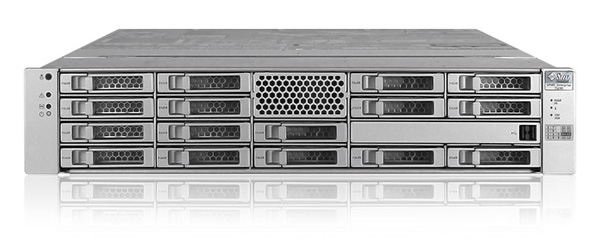

Sun T5240
| 整机信息 | |
| 机架类型 | 机架式 |
| 高度 | 2U |
| 处理器 |
两个 UltraSPARC T2 Plus 多核多线程处理器，每个处理器的核心数为以下所列之一： 4 个核心（32 x 2，总共 64 个并发线程）； 1.2GHz 6 个核心（48 x 2，总共 96 个并发线程）； 1.2GHz 8 个核心（64 x 2，总共 128 个并发线程）； 1.2、1.4 或 1.6GHz |
| 内存插槽/容量 | 十六或三十二个 FB-DIMM 插槽，支持 2 GB、4 GB 和 8 GB 模块（最大系统内存容量为 256 GB）。 |
| 内部硬盘驱动器 |
最多十六个 73 GB (15K rpm)、146 GB 或 300 GB 基于 2.5 英寸磁盘的 SAS 硬盘驱动器。 最多八个固态驱动器可与基于磁盘的硬盘驱动器结合使用，因此总共可有十六个硬盘驱动器存储单元。 集成的硬盘驱动器控制器支持 RAID 0 和 RAID 1。 注 - 有些配置要求输入电压为 200 - 240 VAC。 |
| 光学媒体设备 | 一个插槽装入式超薄型 DVD 驱动器，支持 CD-R/W、DVD-R/W 和DVD+R/W |
| USB 端口 | 四个 USB 2.0 端口（正面 2 个、背面 2 个）。 |
| 以太网端口 |
四个 RJ-45 型 1 Gb 以太网自动协商端口。 注 - 通过向 I/O 扩展插槽中添加 XAUI 卡可以获得 10 Gb 以太网端口。 每添加一个 XAUI 卡，均会禁用一个板载 1 Gb 以太网端口。 |
| I/O 扩展插槽 |
六个 I/O 扩展插槽，符合以下插槽指定规格： 四个插槽 - PCIe， 8 通道 两个插槽 - PCIe， 8 通道（另外，通过添加 XAUI 卡可将这些插槽用于10 Gb 以太网） 使用多达两个外部 I/O 扩展单元时最多可提供 10 个其他 PCIe 插槽 注 - 所有 PCIe 插槽均支持标准的窄板型 PCIe 卡。所有 PCIe 卡均使用提供的竖隔板进行安装。 注 - 根据系统散热要求，可能会存在一些 PCIe 配置限制。 |
| 其它端口 |
服务器背面有下列连接器： 一个 RJ-45 串行管理端口 (SER MGT) - 用于与服务处理器的默认连接 一个 10/100 Mbps 以太网网络管理端口 (NET MGT) - 用于与服务处理器的连接 一个 DB-9 串行端口 - 用于与主机的连接 |
| 冷却系统 | 三到四个可热交换风扇模块（每个模块两个风扇） |
| 电源 |
两个可热交换电源单元，提供 N+1 冗余 电源电压 AC 100-240V ；电源功率 1100W |
| 远程管理 |
运行 Integrated Lights Out Manager (ILOM) 3.0 的板载服务处理器，具有两个命令集： ILOM ALOM CMT 兼容 shell （传统命令集） 这两个命令集均可通过 RJ-45 串行接口和 10/100 Mbps 以太网接口来访问。 |
| 密码系统 | 处理器集成的密码加速，支持行业标准安全密码 |
| 操作系统 | 磁盘 0 预装了 Solaris 10 操作系统（如果随系统一起购买了硬盘驱动器）。 |
| 其它软件 |
• Java Enterprise System • Logical Domains Manager • Sun Studio |
| 尺寸 |
宽度： 425 毫米（16.75 英寸） 高度： 88 毫米（3.49 英寸） 深度： 714 毫米（28.13 英寸） |
| 重量 | 25kg |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| 541-2528 | 6-Core 1.2GHz Motherboard Assembly | |
| 541-2529 | 8-Core 1.2GHz Motherboard Assembly | |
| 541-2530 | 8-Core 1.4GHz Motherboard Assembly | |
| 541-2931 | 4-Core 1.2GHz Motherboard Assembly | |
| 系统板 | ||
| 501-7695 | Fan Board | |
| 541-2108 | x16/x8 PCI Express Riser Card Assembly | |
| 541-2109 | x8/x8 XAUI Riser Card Assembly | |
| 541-2211 | Fan Power Board | |
| 内存 | ||
| 501-7952 | 1GB DDR2-667/PC2-5300 DIMM | |
| 501-7953 | 2GB DDR2-667/PC2-5300 DIMM | |
| 501-7954 | 4GB DDR2-667/PC2-5300 DIMM | |
| 511-1150 | 1 GB DDR2-667/PC2-5300 1.5V DIMM | |
| 511-1151 | 2GB DDR2-667/PC2-5300 1.5V DIMM | |
| 511-1152 | 4GB DDR2-667/PC2-5300 1.5V DIMM | |
| 511-1228 | 8GB DDR2-667/PC2-5300 1.5V DIMM | |
| SESX2A1Z | 2GB Memory Expansion (2 × 1GB) X-Option - Includes 2 (501-7952) DIMM modules | |
| SESX2A3Z | 2GB Memory Expansion (2 × 1GB) X-Option - Includes 2 (511-1150) DIMM modules | |
| SESX2B1Z | 4GB Memory Expansion (2 × 2GB) X-Option - Includes 2 (501-7953) DIMM modules | |
| SESX2B3Z | 4GB Memory Expansion (2 × 2GB) X-Option - Includes 2 (511-1151) DIMM modules | |
| SESX2C1Z | 8GB Memory Expansion (2 × 4GB) X-Option - Includes 2 (501-7954) DIMM modules | |
| SESX2C3Z | 8GB Memory Expansion (2 × 4GB) X-Option - Includes 2 (511-1152) DIMM modules | |
| SESX2D3Z | 16GB Memory Expansion (2 × 8GB) X-Option - Includes 2 (511-1228) DIMM modules | |
| 硬盘 | ||
| SESX3A11Z | 390-0285 | Fujitsu MAY2073RC (73GB - 10000 RPM SAS) Disk Drive |
| SESX3A11Z | 390-0323 | Seagate ST973402SS (73GB - 10000 RPM SAS) Disk Drive |
| SESX3A11Z | 390-0374 | Fujitsu MBB2073RC (73.4GB - 10000 RPM SAS) Disk Drive |
| SESX3A11Z | 390-0376 | Hitachi HUC101473CSS300 (73.4GB - 10000 RPM SAS) Disk Drive |
| SESX3A11Z | 540-7354 | 73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: |
| SESX3A21Z | 390-0382 | Seagate ST973451SS (73GB - 15000 RPM SAS) Disk Drive |
| SESX3A21Z | 540-7361 | 73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks |
| SESX3C11Z | 390-0324 | Seagate ST9146802SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SESX3C11Z | 390-0324 | Seagate ST9146802SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SESX3C11Z | 390-0375 | Fujitsu MBB2147RC (146.8GB - 10000 RPM SAS) disk Drive |
| SESX3C11Z | 390-0377 | Hitachi HUC101414CSS300 (146.8GB - 10000 RPM SAS) Disk Drive |
| SESX3C11Z | 390-0377 | Hitachi HUC101414CSS300 (146.8GB - 10000 RPM SAS) Disk Drive |
| SESX3C11Z | 390-0448 | Seagate ST9146803SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SESX3C11Z | 390-0450 | Hitachi HUC103014CSS600 (146.8GB - 10000 RPM SAS) Disk Drive |
| SESX3C11Z | 540-7355 | 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: |
| SESX3C11Z | 540-7868 | 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: |
| SESX3G11Z | 390-0449 | Seagate ST93000SSUNG (300GB - 10000 RPM SAS) Disk Drive |
| SESX3G11Z | 390-0451 | Hitachi HUC103030CSS600 (300.0GB - 10000 RPM SAS) Disk Drive |
| SESX3G11Z | 540-7869 | 300GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: |
| SESX3Y11Z | 371-4196 | 32GB Solid State Drive, SATA Interface |
| SESX3Y11Z | 540-7841 | 32GB Solid State Drive Assembly, SATA Interface |
| 硬盘背板 | ||
| 501-7730 | 8-Slot Disk Backplane, PATA DVD | |
| 501-7760 | 16-Slot Disk Backplane, PATA DVDL | |
| 511-1256 | 8-Slot Disk Backplane, SATA DVD | |
| 511-1257 | 16-Slot Disk Backplane, SATA DVDL | |
| RAID卡 | ||
| SGXPCIESAS-R-INT-Z | 375-3536 | 8-Port SAS Adaptec RAID HBA |
| SCSI卡 | ||
| SG-XPCIE2SCSIU320Z | 375-3357 | Dual-Channel Ultra320 LVD PCI Express Adapter |
| SG-XPCIE8SAS-E-Z | 375-3487 | PCI Express 8-Port Host Adapter |
| 网卡 | ||
| SESX7XA1Z | 501-7489 | 10GbE XAUI CardL |
| SESX7XT1Z | 375-3301 | 10Gb/sec XFP Optical Transceiver Short Range (SR)L |
| SESX7XT2Z | 375-3495 | 10Gb/sec XFP Optical Transceiver Long Range (LR) |
| X1027A-Z | 501-7283 | PCI Express Dual 10-Gigabit Ethernet Fiber |
| X4447A-Z | 501-7606 | Quad Gigabit Ethernet UTP x8 PCI Express Card |
| X5558A | 375-3301 | 10Gb/sec XFP Optical Transceiver Short Range |
| X5560A-Z | 375-3495 | 10Gb/sec XFP Optical Transceiver Long Range |
| X7280A-2 | 371-0905 | PCI-E Dual Gigabit Ethernet UTP |
| X7281A-2 | 371-0904 | PCI Express Dual Gigabit Ethernet MMF |
| 适配卡 | ||
| 530-2889 | RJ45 to DB25 Serial Port Adapter | |
| 530-3100 | RJ45 to DB9 Adapter | |
| X1236A-Z | 375-3382 | Dual port 4x PCI Express Infiniband Host Channel Adapter - Low Profile |
| X3000A | 530-3474 | DVI-A(M) to HD15F Adapter, 49mm |
| X4240A | 530-3474 | DVI-A(M) to HD15F Adapter, 49mm |
| X6000A | 375-3424 | PCI Express Sun Crypto Accelerator 6000 |
| 显卡 | ||
| X3000A | 375-3545 | XVR-300 x8 Graphics Accelerator Kit |
| X4240A |
605-4668 375-3458 |
XVR-300 Graphics Accelerator |
| 光纤卡 | ||
| SG-XPCIE1FC-EM4 | 375-3396 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-EM8-Z | 371-4295 | 8Gigabit/Sec PCI Express Single Host Adapter |
| SG-XPCIE1FC-QF4 | 375-3355 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-QF8-Z | 371-4324 | 8Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE2FC-EM4 | 375-3397 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-EM8-Z | 371-4306 | 8Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF4 | 375-3356 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF8-Z | 371-4325 | 8Gigabit/Sec PCI Express Dual FC Host Adapter |
| 电源 | ||
| 300-2105 | 1200 Watt DC Input Power Supply, Type D204 | |
| SEUX9PS51Z | 300-2138 | 1100/1200 Watt AC Input Power Supply, Type A235 |
| 电池 | ||
| 371-2210 | CR2032 3V Battery | |
| 371-3253 | Lithium Ion Battery Module | |
| 光驱 | ||
| 390-0442 | 8x SATA DVD-Writer/24x CD-Writer | |
|
541-3493 390-0442 |
SATA DVD-Writer/CD-Writer - USB Board Assembly | |
| SESX9DV1Z |
390-0337 390-0403 |
8x PATA DVD-Writer/24x CD-Writer |
| SESX9DV1Z |
541-2110 390-0337 |
PATA DVD-Writer/CD-Writer - USB Board Assembly |
| 风扇 | ||
| 310-0119 | Fan, 60×38mm, 2U | |
| 541-2940 | CPU Dual Fan Assembly w/ Metal Fingerguards | |
| 导轨 | ||
|
SESX9RK1Z 371-2741 |
Screw-Mount Slide Rail Rackmount Kit | |
|
SESX9RK2Z 371-2740 |
Snap-In Slide Rail Rackmount Kit | |
| 线缆 | ||
| 530-3623 | Shielded RJ45 to RJ45 Cable, 4M | |
| 530-3855 | Mini SAS Cable, 560mm | |
| 530-3862 | Mini SAS Cable, 390mm | |
| 530-3904 | Mini SAS Cable, 460mm | |
| 530-3956 | PDB to System Board Ribbon Cable | |
| 541-3370 | PDB to System Board Ribbon Cable w/ insulator | |
| 560-2911 | SAS Cable Kit | |
| SEUX9SA2Z | 180-1997 | IEC 320 C13 to BS 1363 - 10A/250V 2.0M Black |
| SEUX9SA2Z | 530-4077 | 4x Mini SAS Cable, SFF-8087 to SFF-8087, 400mm |
| SEUX9SA2Z | 560-2917 | Cable Kit (2× Mini SAS Cables) |
|
X3000A X4240A |
530-3998 530-3459 |
DMS-59 to Dual DVI-I Cable, 215mm |
| X311L | 180-1097 | Localized (AC) Power Cord Kit - North America/Asia |
| X312E | 180-1982 | Localized Power Code Kit - China |
| X312F | 180-1999 | Localized Power Cord Kit - Argentina |
| X312G | 180-1662 | Localized Power Cord Kit/Korea IEC 320 C13 to KSC 8305-15A/250V 2.5M Black |
| X312L | 180-1993 | Localized Power Cord Kit - Continental Europe |
| X314L | 180-1994 | Localized Power Cord Kit - Swiss |
| X317L | 180-1997 | Localized Power Cord Kit - U.K. |
| X320A | 180-2164 | Localized Power Cork Kit - North America/Asia IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black |
|
X332T X337L |
180-2071 | Blue 16A IEC 309 to IEC 320 C13 International 4.0M |
| X333A-25-10-IL | 180-2130 | Localized Power Cord Kit Isreal |
| X333A-25-15-JP | 180-2243 | Localized Power Cord Kit Japan |
| X333A-25-15-TW | 180-2333 | IEC 320 C13 to CNS 690 - 15A/125V 2.5M Black |
| X333F-25-15-JP | 180-2244 | Localized Power Cord Kit Japan |
| X340L | 180-2070 | NEMA L6-20P to IEC 320 C13 - 4.0M |
| X383L |
180-1995 530-1819 530-180-1995 |
IEC 320 C13 to Asfnit 107 - 10A/250V 2.0M Black |
| X384L | 180-1996 | Localized Power Cord Kit - Italian |
| X386L | 180-1998 | Localized Power Cord Kit - Australian |
| X4240A |
530-3998 530-3459 |
DMS-59 to Dual DVI-I Cable, 215mm |
| X9237-1-A | 180-2082 | IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 1.0M |
| X9238-1-A | 180-2085 | IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 2.5M |
| 机壳 | ||
| 330-4463 | Top Bracket | |
| 540-5064 | Front Fan Tray Cable w/ Bracket 340-7241 | |
| 540-7628 | Chassis Subassembly | |
| 541-2628 | Chassis Subassembly | |
| 541-2958 | Chassis Subassembly | |
| 599-3464 | T5240 Base Chassis Assembly | |
| 其它 | ||
| 150-4065 | Interlock Switch Magnet | |
| 330-4418 | DVD Interconnect Holder | |
| 330-4419 | Lightpipe Button | |
| 330-4420 | Lightpipe Holder | |
| 330-4421 | Right Side Endcap Lightpipe | |
| 330-4424 | Power Button | |
| 330-4684 | Fan Connector Cover | |
| 330-4793 | Memory Mezzanine Slot Filler | |
| 330-4839 | Memory Slot Filler | |
| 330-5056 | DVD Interconnect Holder | |
| 341-3096 | Long Bus Bar | |
| 341-3097 | Bracket | |
| 341-3104 | Short Bus Bar | |
| 341-3166 | Bus Bar Left | |
| 341-3167 | Bus Bar Right | |
| 341-3573 | Ventilated 8-Disk Filler Panel | |
| 341-3575 | PCI Cross Beam | |
| 341-3990 | End Cap | |
| 341-4072 | DVD Filler Panel | |
| 341-4139 | PCI Filler Panel | |
| 343-0786 | Kapton Tape | |
| 371-2484 | Signal Cable Assembly | |
| 501-7697 | Horizontal Power Distribution Board | |
| 501-7698 | USB Board | |
| 501-7715 | x16/x8 PCI Express Riser Card | |
| 501-7719 | x8/x8 XAUI Riser Card | |
| 501-7720 | Connector Board, PATA DVD | |
| 501-7951 | Vertical Power Distribution Board | |
| 511-1255 | Connector Board, SATA DVD | |
| 525-2344 | System Configuration PROM | |
| 530-3510 | Magnetic Interlock Switch | |
| 541-1988 | Top Cover | |
| 541-2075 | Bus Bar Set | |
| 541-2123 | Marlin Bracket 2.5" | |
| 541-2126 | Left Side Endcap Lightpipe Assembly | |
| 541-2212 | Disk Cage | |
| 541-2213 | Connector Board Assembly, PATA DVD | |
| 541-2523 | System Board Tray | |
| 541-2629 | Disk Drive Filler Panel | |
| 541-2636 | Lightpipe Assembly | |
| 541-2702 | Air Duct Assembly | |
| 541-2732 | USB Assembly | |
| 541-2736 | Riser Bracket | |
| 541-2738 | PCI Cross Beam | |
| 541-2863 | Left Ear 2U | |
| 541-2864 | Right Ear 2U | |
| 541-2956 | Enclosure Subassembly | |
| 541-2979 | Right Mezzanine Support Bracket | |
| 541-2980 | Left Mezzanine Support Bracket | |
| 541-3513 | Connector Board Assembly, SATA DVD | |
| 541-3686 | DVD Bezel | |
| SESX9CA1Z | 371-2742 | Cable Management Arm |
| SESX9DV1Z | 330-4418 | DVD Interconnect Holder |
| SESX9DV1Z | 501-7698 | USB Board |
| SESX9DV1Z | 541-2111 | DVD Bezel |
| SEUX2MM1Z | 341-4167 | Memory Mezzanine Shipping Bracket |
| SEUX2MM1Z | 501-7678 | Memory Riser |
| SEUX2MM1Z | 541-2351 | Memory Mezzanine Assembly |
| SEUX2MM1Z | 541-2473 | Side Support Bracket |
| SEUX2MM1Z | 541-3064 | Clear Plastic Memory Mezzanine Air Duct |
| SEUX2MM1Z | 541-3065 | Grey Plastic Memory Mezzanine Lower Air Duct |
| SEUX2MM1Z | 594-5205 | Memory Mezzanine |
| SEUX2MM2Z | 341-4167 | Memory Mezzanine Shipping Bracket |
| SEUX2MM2Z | 511-1231 | Memory Riser |
| SEUX2MM2Z | 540-7792 | Memory Mezzanine Assembly |
| SEUX2MM2Z | 541-2473 | Side Support Bracket |
| SEUX2MM2Z | 541-3064 | Clear Plastic Memory Mezzanine Air Duct |
| SEUX2MM2Z | 541-3065 | Grey Plastic Memory Mezzanine Lower Air Duct |
| SEUX2MM2Z | 594-4996 | Memory Mezzanine |
| X4447A-Z | 371-2207 | Bracket Low-Profile |
| X4447A-Z | 371-2348 | Bracket Standard |
