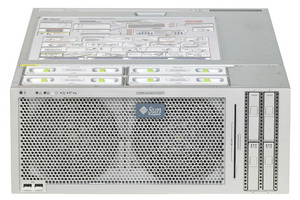

Sun T5440
| 整机信息 | |
| 机架类型 | 机架式 |
| 高度 | 4U |
| 处理器 |
多达四个 UltraSPARC T2 Plus 多内核多线程处理器，其中每个处理器 的内核数为以下所列之一： • 6 个内核（48 x 4，总共 192 个并发线程） • 8 个内核（64 x 4，总共 256 个并发线程） |
| 内存插槽/容量 | 多达 64 个 FB-DIMM 插槽（每个处理器有 16 个插槽），支持 2 GB和 4 GB 模块（最大系统内存容量为 256 GB）。 |
| 内部硬盘驱动器 |
最多四个 73 GB 或 146 GB 的 2.5 英寸 SAS 硬盘驱动器（可热插拔）。 集成的硬盘驱动器控制器支持 RAID 0 和 RAID 1。 |
| 光学媒体设备 | 一个插槽装入式超薄型 DVD 驱动器，支持 CD-R/W、DVD-R/W 和DVD+R/W |
| USB 端口 | 四个 USB 2.0 端口（正面 2 个、背面 2 个）。 |
| 以太网端口 |
四个 RJ-45 型 1 Gb 以太网自动协商端口。 注 - 通过向 I/O 扩展插槽中添加 XAUI 卡可以获得 10 Gb 以太网端口。 每添加一个 XAUI 卡，均会禁用一个板载 1 Gb 以太网端口。 |
| I/O 扩展插槽 |
八个 PCI Express 扩展插槽，符合以下插槽指定规格： • 所有 8 个插槽都支持 PCIe， 8 通道 • 两个插槽支持 16 通道卡（在 8 个通道上运行）。 • 两个插槽还支持 10 GB 以太网 XAUI 卡。（与 PCIe 插槽共享） • 使用多达两个外部 I/O 扩展单元时可以使用最多 20 个其他 PCIe插槽 所有内部 PCIe 插槽均支持标准的半长窄板型 PCIe 卡。 |
| 其它端口 |
服务器背面有下列连接器： 一个 RJ-45 串行管理端口 (SER MGT) - 用于与服务处理器的默认连接 一个 10/100 Mbps 以太网网络管理端口 (NET MGT) - 用于与服务处理器的连接 一个 DB-9 串行端口 - 用于与主机的连接 |
| 冷却系统 | 四个可热交换风扇模块 |
| 电源 |
四个可热交换电源单元，提供 N+2 冗余 电源电压 AC 100-240V ；电源功率 1120W |
| 远程管理 |
板载系统控制器，使用以下命令集运行 Integrated Lights Out Manager (ILOM) 2.0： • ILOM 命令行界面 • ILOM 浏览器界面 • SNMP 界面 • IMPI 界面 • ALOM CMT 兼容 shell （传统命令集） 这些命令集均可通过 RJ-45 串行接口和 10/100 Mbps 以太网接口来访问。 |
| 密码系统 | 处理器集成的密码加速，支持行业标准安全密码 |
| 操作系统 | 磁盘 0 预装了 Solaris 10 操作系统（如果随系统一起购买了硬盘驱动器）。 |
| 其它软件 |
具有 90 天试用许可的 Java Enterprise System Logical Domains Manager Sun Studio 12 |
| 尺寸 |
宽度x高度x深度 英寸 16.75x6.98x28.125 毫米 425x176x714 |
| 重量 | 40kg (88lbs.) |
| 配件信息 | ||
| FC号 | PN号 | 描述 |
| CPU | ||
| SEVX1CB1Z | 541-2754 | 1.2GHz 8-Core UltraSPARC T2 Plus CPU Module |
| SEVX1CB1Z | 596-7129 | 1.2GHz 8-Core UltraSPARC T2 Plus, 8GB, w/Memory Expansion Board |
| SEVX1CC1Z | 541-2754 | 1.2GHz 8-Core UltraSPARC T2 Plus CPU Module |
| SEVX1CC1Z | 596-7387 | 1.2GHz 8-Core UltraSPARC T2 Plus, 16GB, w/Memory Expansion Board |
| SEVX1CD1Z | 541-2754 | 1.2GHz 8-Core UltraSPARC T2 Plus CPU Module |
| SEVX1CD1Z | 596-7787 | 1.2GHz 8-Core UltraSPARC T2 Plus, 32GB, w/Memory Expansion Board |
| SEVX1DB1Z | 541-2753 | 1.4GHz 8-Core UltraSPARC T2 Plus CPU Module |
| SEVX1DB1Z | 596-7664 | 1.4GHz 8-Core UltraSPARC T2 Plus, 8GB, w/Memory Expansion Board |
| SEVX1DC1Z | 541-2753 | 1.4GHz 8-Core UltraSPARC T2 Plus CPU Module |
| SEVX1DC1Z | 596-7135 | 1.4GHz 8-Core UltraSPARC T2 Plus, 16GB, w/Memory Expansion Board |
| SEVX1DD1Z | 541-2753 | 1.4GHz 8-Core UltraSPARC T2 Plus CPU Module |
| SEVX1DD1Z | 596-7788 | 1.4GHz 8-Core UltraSPARC T2 Plus, 32GB, w/Memory Expansion Board |
| 系统板 | ||
| 541-2749 | Motherboard | |
| 内存 | ||
| 501-7954 | 4GB DDR2-667/PC2-5300 DIMM | |
| 511-1161 | 2GB DDR2-667/PC2-5300 FBDIMM | |
| 511-1262 | 8GB DDR-667/PC2-5300 FBDIMM | |
| 525-2146 | SSCC NVRAM | |
| SESX2B2Z | 4GB Memory Expansion (2 × 2GB) X-Option - Includes 2 (511-1161) DIMM modules | |
| SESX2C1Z | 8GB Memory Expansion (2 × 4GB) X-Option - Includes 2 (501-7954) DIMM modules | |
| SESX2D1Z | 16GB Memory Expansion (2 × 8GB) X-Option - Includes 2 (511-1262) DIMM modules | |
| SEVX1CB1Z |
596-7129 511-1161 |
2GB DDR2-667/PC2-5300 FBDIMM |
| SEVX1CC1Z |
596-7387 501-7954 |
4GB DDR2-667/PC2-5300 DIMM |
| SEVX1CD1Z |
596-7787 511-1262 |
8GB DDR-667/PC2-5300 FBDIMM |
| SEVX1DB1Z |
596-7664 511-1161 |
2GB DDR2-667/PC2-5300 FBDIMM |
| SEVX1DC1Z |
596-7135 501-7954 |
4GB DDR2-667/PC2-5300 DIMM |
| SEVX1DD1Z |
596-7788 511-1262 |
8GB DDR-667/PC2-5300 FBDIMM |
| 硬盘 | ||
| SEVX3A11Z | 390-0213 | Seagate ST973401SS (73GB - 10000 RPM SAS) Disk Drive |
| SEVX3A11Z | 390-0285 | Fujitsu MAY2073RC (73GB - 10000 RPM SAS) Disk Drive |
| SEVX3A11Z | 390-0323 | Seagate ST973402SS (73GB - 10000 RPM SAS) Disk Drive |
| SEVX3A11Z | 390-0374 | Fujitsu MBB2073RC (73.4GB - 10000 RPM SAS) Disk Drive |
| SEVX3A11Z | 390-0376 | Hitachi HUC101473CSS300 (73.4GB - 10000 RPM SAS) Disk Drive |
| SEVX3A11Z | 540-6611 | 73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets |
| SEVX3A21Z | 390-0382 | Seagate ST973451SS (73GB - 15000 RPM SAS) Disk Drive |
| SEVX3A21Z | 540-7360 | 73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks |
| SEVX3C11Z | 390-0324 | Seagate ST9146802SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SEVX3C11Z | 390-0375 | Fujitsu MBB2147RC (146.8GB - 10000 RPM SAS) disk Drive |
| SEVX3C11Z | 390-0377 | Hitachi HUC101414CSS300 (146.8GB - 10000 RPM SAS) Disk Drive |
| SEVX3C11Z | 390-0448 | Seagate ST9146803SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SEVX3C11Z | 390-0450 | Hitachi HUC103014CSS600 (146.8GB - 10000 RPM SAS) Disk Drive |
| SEVX3C11Z | 540-7151 | 146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets |
| SEVX3C11Z | 540-7864 | 146GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks |
| SEVX3G11Z | 390-0449 | Seagate ST93000SSUNG (300GB - 10000 RPM SAS) Disk Drive |
| SEVX3G11Z | 540-7865 | 300GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks |
| SEVX3Y11Z | 371-4196 | 32GB Solid State Drive, SATA Interface |
| SEVX3Y11Z | 540-7843 | 32GB Solid State Drive Assembly, SATA Interface |
| XRB-SS2CD-146G10K | 390-0377 | Hitachi HUC101414CSS300 (146.8GB - 10000 RPM SAS) Disk Drive |
| XRB-SS2CD-146G10K | 390-0448 | Seagate ST9146803SS (146.8GB - 10000 RPM SAS) Disk Drive |
| XRB-SS2CD-146G10K | 390-0450 | Hitachi HUC103014CSS600 (146.8GB - 10000 RPM SAS) Disk Drive |
| XRB-SS2CD-146G10K | 540-7864 | 146GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks |
| 硬盘背板 | ||
| 501-7049 | 4-Slot Disk BackplaneL | |
| SCSI卡 | ||
| SG-XPCIE2SCSIU320Z | 375-3357 | Dual-Channel Ultra320 LVD PCI Express Adapter |
| SG-XPCIE8SAS-E-Z | 375-3487 | PCI Express 8-Port Host Adapter |
| 网卡 | ||
| SESX7XA1Z | 501-7489 | 10GbE XAUI CardL |
| SESX7XT1Z | 375-3301 | 10Gb/sec XFP Optical Transceiver Short Range (SR)L |
| SESX7XT2Z | 375-3495 | 10Gb/sec XFP Optical Transceiver Long Range (LR) |
| X1027A-Z | 501-7283 | PCI Express Dual 10-Gigabit Ethernet Fiber |
| X4447A-Z | 501-7606 | Quad Gigabit Ethernet UTP x8 PCI Express Card |
| X5558A | 375-3301 | 10Gb/sec XFP Optical Transceiver Short Range |
| X5560A-Z | 375-3495 | 10Gb/sec XFP Optical Transceiver Long Range |
| X7280A-2 | 371-0905 | PCI-E Dual Gigabit Ethernet UTP |
| X7281A-2 | 371-0904 | PCI Express Dual Gigabit Ethernet MMF |
| 适配卡 | ||
| 541-2751 | Service Processor | |
| X1236A-Z | 375-3382 | Dual port 4x PCI Express Infiniband Host Channel Adapter - Low Profile |
| X3000A | 530-3474 | DVI-A(M) to HD15F Adapter, 49mm |
| X6000A | 375-3424 | PCI Express Sun Crypto Accelerator 6000 |
| 显卡 | ||
| X3000A | 375-3545 | XVR-300 x8 Graphics Accelerator Kit |
| 光纤卡 | ||
| SG-XPCIE1FC-EM4 | 375-3396 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-EM8-Z | 371-4295 | 8Gigabit/Sec PCI Express Single Host Adapter |
| SG-XPCIE1FC-QF4 | 375-3355 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-QF8-Z | 371-4324 | 8Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE2FC-EM4 | 375-3397 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-EM8-Z | 371-4306 | 8Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF4 | 375-3356 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF8-Z | 371-4325 | 8Gigabit/Sec PCI Express Dual FC Host Adapter |
| 电源 | ||
| 300-2158 | 1133 Watt Power Supply (Type A238) | |
| 511-1044 | Power Distribution Board | |
| 电池 | ||
| 150-4277 | 3V Lithium coin battery | |
| 光驱 | ||
| SESX9DV1Z |
390-0337 390-0403 |
8x PATA DVD-Writer/24x CD-Writer |
| 风扇 | ||
| 541-2945 | Fan Assembly w/ Metal Fingerguards | |
| 导轨 | ||
|
SEVX9RK1Z 350-1251 |
Screw-Mount Slide Rail Rackmount Kit | |
| 线缆 | ||
| 530-3394 | MB to USB to Front LED/Switch Board Flex Cable | |
| 530-3958 | Flex Cable | |
| 530-4006 | PDB to System Board Ribbon Cable | |
|
X3000A X4240A |
530-3998 530-3459 |
DMS-59 to Dual DVI-I Cable, 215mm |
| X311L | 180-1097 | Localized (AC) Power Cord Kit - North America/Asia |
| X312E | 180-1982 | Localized Power Code Kit - China |
| X312F | 180-1999 | Localized Power Cord Kit - Argentina |
| X312G | 180-1662 | Localized Power Cord Kit/Korea IEC 320 C13 to KSC 8305-15A/250V 2.5M Black |
| X312L | 180-1993 | Localized Power Cord Kit - Continental Europe |
| X314L | 180-1994 | Localized Power Cord Kit - Swiss |
| X317L | 180-1997 | Localized Power Cord Kit - U.K. |
| X320A | 180-2164 | Localized Power Cork Kit - North America/Asia IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black |
|
X332T X337L |
180-2071 | Blue 16A IEC 309 to IEC 320 C13 International 4.0M |
| X340L | 180-2070 | NEMA L6-20P to IEC 320 C13 - 4.0M |
| X383L |
180-1995 530-1819 530-180-1995 |
IEC 320 C13 to Asfnit 107 - 10A/250V 2.0M Black |
| X384L | 180-1996 | Localized Power Cord Kit - Italian |
| X386L | 180-1998 | Localized Power Cord Kit - Australian |
| X9237-1-A | 180-2082 | IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 1.0M |
| X9238-1-A | 180-2085 | IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 2.5M |
| 机壳 | ||
| 599-3383 | Base Chassis Assembly | |
| SEVX9CA1Z | 350-1250 | Cable Management Arm |
| 其它 | ||
| 330-4525 | Nameplate | |
| 330-4660 | CPU/Memory Module Filler Panel | |
| 341-2610 | PCI Filler Panel | |
| 501-7057 | USB BoardL | |
| 541-0330 | Front Bezel | |
| 541-0605 | Blank Disk Drive Filler | |
| 541-2551 | 12-Slot FBDIMM Memory Module | |
| SEVX1CB1Z |
596-7129 541-2551 |
12-Slot FBDIMM Memory Module |
| SEVX1CC1Z |
596-7387 541-2551 |
12-Slot FBDIMM Memory Module |
| SEVX1CD1Z |
596-7787 541-2551 |
12-Slot FBDIMM Memory Module |
| SEVX1DB1Z |
596-7664 541-2551 |
12-Slot FBDIMM Memory Module |
| SEVX1DC1Z |
596-7135 541-2551 |
12-Slot FBDIMM Memory Module |
| SEVX1DD1Z |
596-7788 541-2551 |
12-Slot FBDIMM Memory Module |
| SEVX3A11Z | 541-0239 | Nemo Bracket |
| SEVX3A11Z | 541-3004 | Nemo Bracket with Insulator |
| SEVX3A21Z | 541-0239 | Nemo Bracket |
| SEVX3C11Z | 541-0239 | Nemo Bracket |
| SEVX3C11Z | 541-3004 | Nemo Bracket with Insulator |
| SEVX3G11Z | 541-3004 | Nemo Bracket with Insulator |
| SEVX3Y11Z | 541-0239 | Nemo Bracket |
| X4447A-Z | 371-2207 | Bracket Low-Profile |
| X4447A-Z | 371-2348 | Bracket Standard |
| XRB-SS2CD-146G10K | 541-3004 | Nemo Bracket with Insulator |
